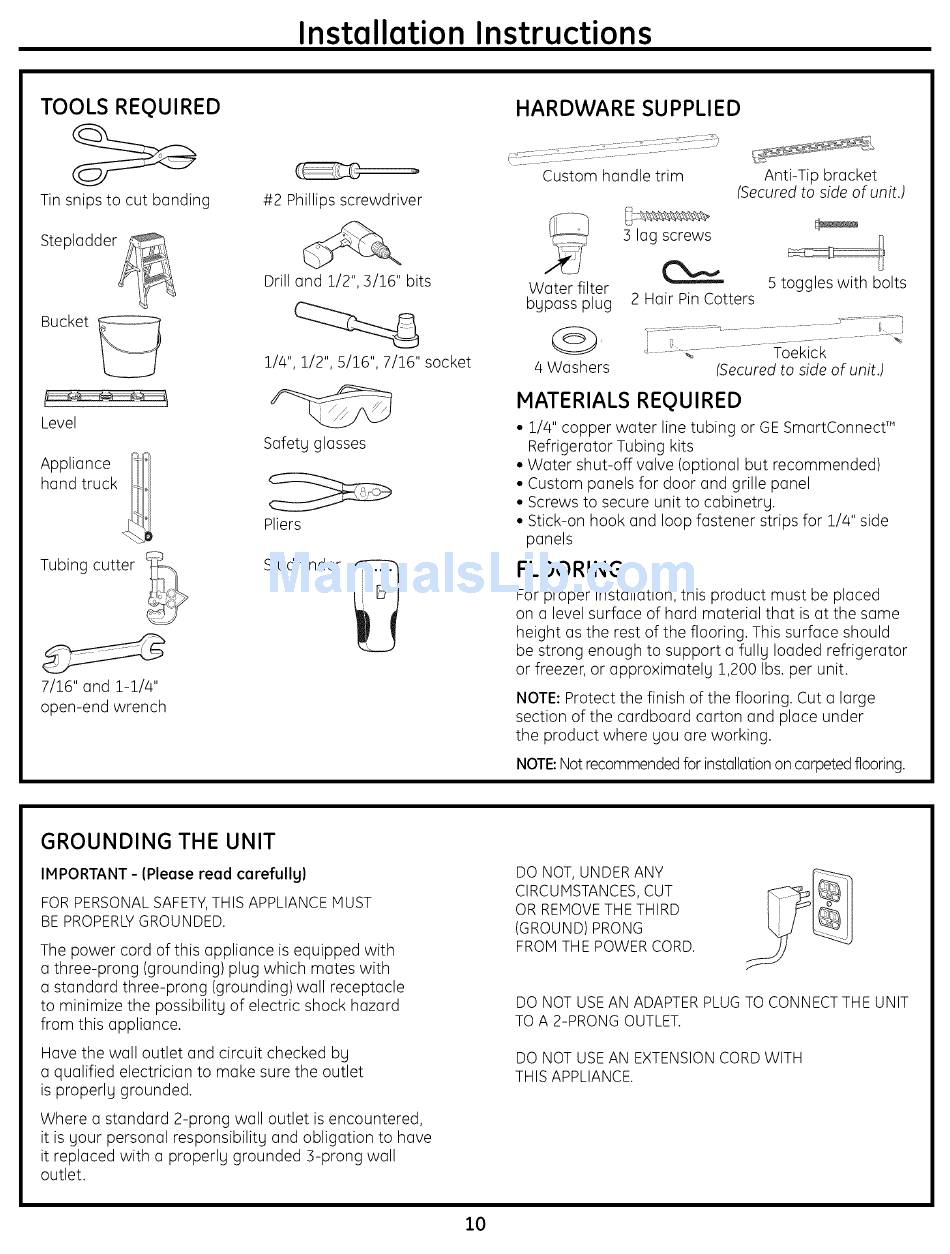

Installation Instructions
TOOLS REQUIRED HARDWARE SUPPLIED
Tin snips to cut banding
Bucket _
Level
Appliance
hand truck
Tubing cutter
7/16" and 1-1/4"
open-end wrench
#2 Phillips screwdriver
Drill and 1/2", 3/16" bits
1/4", 1/2", 5/16", 7/16" socket
Safety glasses
Pliers
Stud finder
Custom handle trim
Anti-Tip bracket
(Secured to side of unit.)
3 lagscrews
Water filter
bypass plug
5 toggles with bolts
2 Hair Pin Cotters
.i . ...._ ........................ T oel<ick
4 Washers (Securedto side of unit.)
MATERIALS REQUIRED
• 1/4" copper water line tubing or GE SmartConnect T"
Refrigerator Tubing kits
• Water shut-off valve (optional but recommended)
• Custom panels for door and grille panel
• Screws to secure unit to cabinetry.
• Stick-on hook and loop fastener strips for 1/4" side
panels
FLOORING
For proper installation, this product must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring. This surface should
be strong enough to support a fully loaded refrigerator
or freezer, or approximately 1,200 Ibs. per unit.
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under
the product where you are working.
NOTE:Not recommendedfor installationon carpetedflooring.
GROUNDING THE UNIT
IMPORTANT - (Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
The power cord of this appliance is equipped with
a three-prong (grounding) plug which mates with
a standard three-prong (grounding) wall receptacle
to minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a standard 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded 3-prong wall
outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG
FROM THE POWER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT THE UNIT
TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH
THIS APPLIANCE.
10
