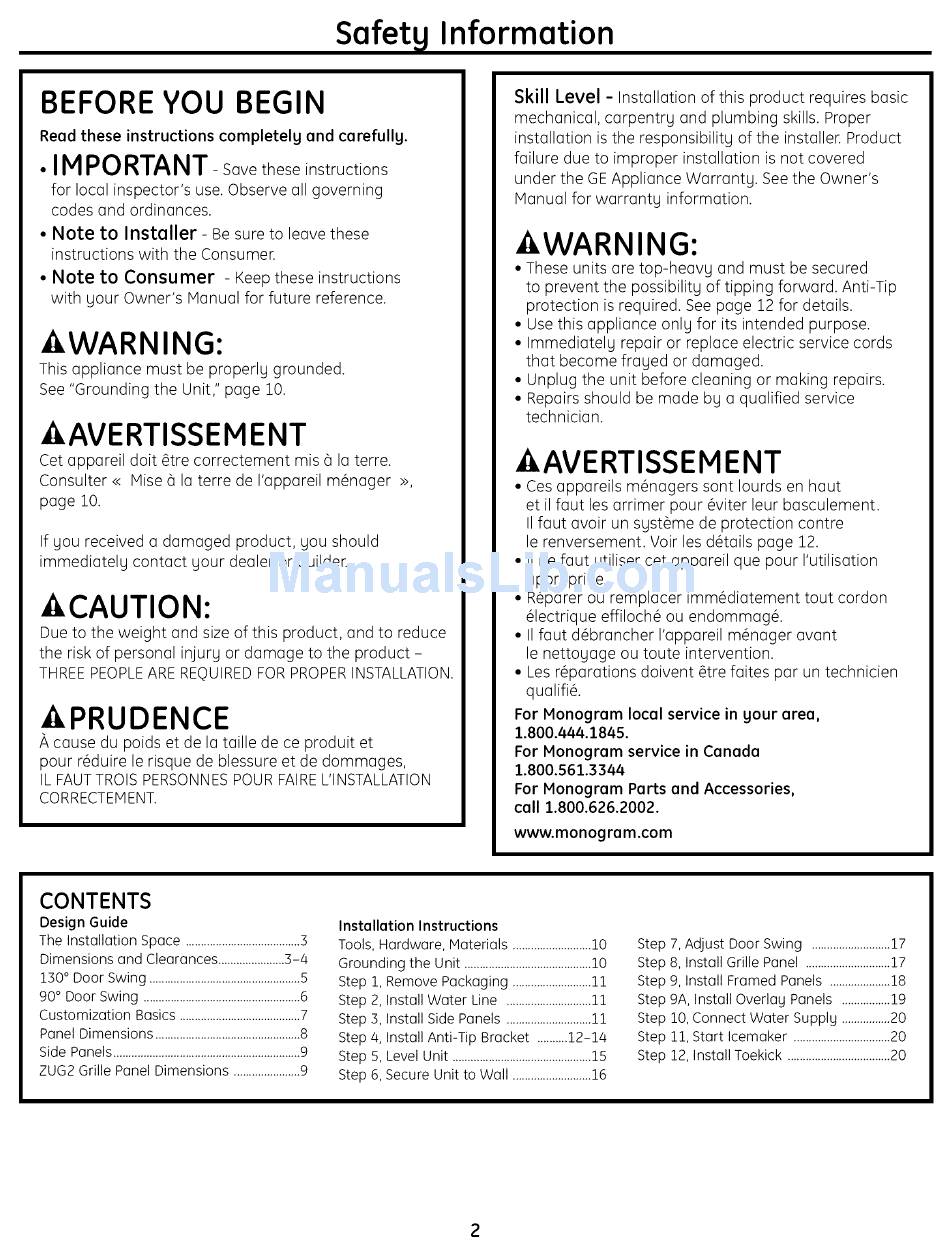

Safet l Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT- Save these instructions
forlocal i nspector's use.Observeall governing
codes and ordinances.
• Note to Installer
- Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keep
these instructions
with your Owner's Manual for future reference.
AWARNING:
This appliance must be properly grounded.
See "Grounding the Unit," page 10.
AAVERTISSEMENT
Cet appareil doit @trecorrectement mis @la terre.
Consulter <<Mise @la terre de I'appareil m@nager >>,
page 10.
If you received a damaged product, you should
immediately contact your dealer or builder.
ACAUTION:
Due to the weight and size of this product, and to reduce
the risk of personal injury or damage to the product -
THREEPEOPLE AREREQUIREDFOR PROPER INSTALLATION.
APRUDENCE
A cause du poids et de la taille de ce produit et
pour r@duirele risque de blessure et de dommages,
IL FAUTTROISPERSONNES POURFAIREL'INSTALLATION
CORRECTEMENT.
Skill Level
-Installation of this product requires basic
mechanical, carpentry and plumbing skills. Proper
installation is the responsibility of the installer. Product
failure due to improper installation is not covered
under the GE Appliance Warranty. See the Owner's
Manualfor warranty information.
WARNING:
• These units are top-heavy and must be secured
to prevent the possibility of tipping forward. Anti-Tip
protection is required. See page 12 for details.
• Use this appliance only for its intended purpose.
• Immediately repair or replace electric service cords
that become frayed or damaged.
• Unplug the unit before cleaning or making repairs.
• Repairs should be made by a qualified service
technician.
AAVERTISSEMENT
• Ces appareils m@nagerssont Iourds en haut
et il faut les arrimer pour @viterleur basculement.
II faut avoir un syst@mede protection contre
le renversement. Voir les d@tailspage 12.
• II ne faut utiliser cet appareil que pour I'utilisation
appropri@e.
• R@parerou remplacer imm@diatement tout cordon
@lectriqueeffiloch@ ou endommag@.
• II f autd_brancher l'appareil m_nager avant
le nettoyage ou toute intervention.
• Les r@parations doivent @trefaites par un technicien
qualifi&
For Monogram local service in gour area,
1.800.444.1845.
ForMonogram service inCanada
1.800.561.3344
ForMonogram Partsand Accessories,
call 1.800.626.2002.
www.monogram.com
CONTENTS
Design Guide
TheInstallation Space ...................................... 3
Dimensionsand Clearances ...................... 3-4
130° Door Swing.................................................. 5
90° Door Swing .................................................... 6
CustomizationBasics
........................................
7
Panel Dimensions
................................................
8
SidePanels.............................................................. 9
ZUG2Grille PanelDimensions
......................
9
Installation Instructions
Tools, Hardware, Materials .......................... 10
Grounding the Unit .......................................... 10
Step 1, Remove Packaging .......................... 11
Step 2, Install Water Line ............................ 11
Step 3, Install Side Panels ............................ 11
Step 4, Install Anti-Tip Bracket .......... 12-14
Step 5, Level Unit .............................................. 15
Step 6, Secure Unit to Wall .......................... 16
Step 7, Adjust Door Swing .......................... 17
Step 8, Install Grille Panel ............................ 17
Step 9, Install Framed Panels .................... 18
Step 9A, Install Overlay Panels ................ 19
Step 10, Connect Water Supply ................ 20
Step 11, Start Icemaker ................................ 20
Step 12, Install Toekick .................................. 20
