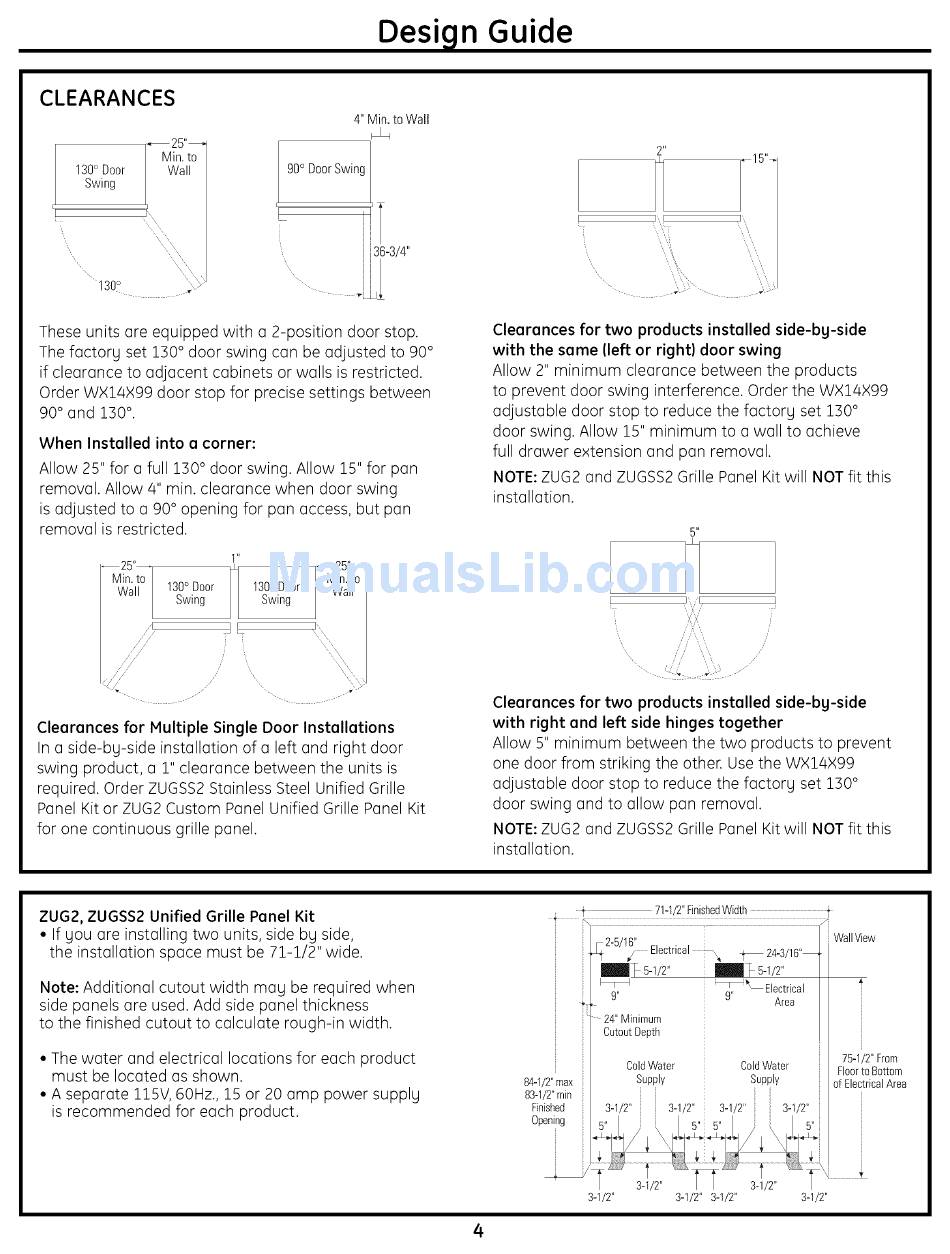

Design Guide
CLEARANCES
Ii to
130 ° Door
Swing
..... 130 ° .........
4" Min. to Wall
0 DoorSwing
z
36-3/4"
.L
These units are equipped with a 2-position door stop.
The factory set 1]0 ° door swing can be adjusted to 90 °
if clearance to adjacent cabinets or walls is restricted.
Order WX14X99 door stop for precise settings between
90 ° and 1]0 °.
When Installed into a corner:
Allow 25" for a full 1]0 ° door swing. Allow 15" for pan
removal. Allow 4" min. clearance when door swing
is adjusted to a 90 ° opening for pan access but pan
removal is restricted.
1"
130° Door 130° Door
Swing Swing
25"
Min. to
Wall
II I',
_L k'X
/ _, "k'X
Clearances for Multiple Single Door Installations
In a side-by-side installation of a left and right door
swing product, a 1" clearance between the units is
required. Order ZUGSS2 Stainless Steel Unified Grille
Panel Kit or ZUG2 Custom Panel Unified Grille Panel Kit
for one continuous grille panel.
2"
Fr i
Clearances for two products installed side-bg-side
with the same (left or right) door swing
Allow 2" minimum clearance between the products
to prevent door swing interference. Order the WX14X99
adjustable door stop to reduce the factory set 1]0 °
door swing. Allow 15" minimum to a wall to achieve
full drawer extension and pan removal.
NOTE:ZUG2 and ZUGSS2Grille Panel Kit will NOT fit this
installation.
5"
! i
'.... ,,"1%,
........ :<i' L:
Clearances for two products installed side-bg-side
with right and left side hinges together
Allow 5" minimum between the two products to prevent
one door from striking the other. Use the WX14X99
adjustable door stop to reduce the factory set 1]0 °
door swing and to allow pan removal.
NOTE:ZUG2 and ZUGSS2Grille Panel Kit will NOT fit this
installation.
ZUG2, ZUGSS2 Unified Grille Panel Kit
• If you are installing two units, side by side,
the installation space must be 71-1/2" wide.
Note: Additional cutout width may be required when
side panels are used. Add side panel thickness
to the finished cutout to calculate rough-in width.
• The water and electrical locations for each product
must be located as shown.
• A seporote llSV, 60Hz., 15 or 20 omp power supply
is recommended for each product.
84-1/2"max
83-1/2"min
Finished
Opening
71-1/2"Finished Wid[h .............................................................. t
WallView
24" Minimum
CutoutDepth
75-1/2" From
ColdWater Cold Water Floorto Bottom
Supply Supply of Electrical Area
i
3-1/2" j 3-1/2" 3-1/T 3-1/2"
s" i 5" 5" i 5"
c............................ .................
' 3-1/2" _ 3-1/2" T
3-1/2" 3-1/2" 3-1/2" 3-1/2"
4
