- Page 1 RD Series Modifi ed Sine Wave Inverter/Chargers Owner’s Manual...
-
Page 2: Contact Information
Restrictions on Use The RD Series Inverter/Charger may only be used in life-support devices or systems with the express written approval of Magnum Energy. Failure of the RD Series Inverter/Charger can reasonably be expected to cause the failure of that life-support device or system, or to affect the safety or effectiveness of that device or system. -
Page 3: Important Safety Instructions
CAUTION: This symbol indicates that failure to take a specifi ed action could result in damage to the equipment. Info: This symbol indicates information that emphasizes or supplements important points of the main text. Remedy: This symbol provides possible solutions for related issues. SAVE THESE INSTRUCTIONS Page ii © 2010 Magnum Energy, Inc. - Page 4 In the event of accidental exposure to battery acid, wash thoroughly with soap and water. In the event of exposure to the eyes, fl ood them for at least 15 minutes with running water and seek immediate medical attention. • Recycle old batteries. SAVE THESE INSTRUCTIONS © 2010 Magnum Energy, Inc. Page iii...
-
Page 5: Table Of Contents
Appendix B - Battery Information ............46 Battery Location ..................46 Battery Types ...................46 Battery Temperature .................46 Battery Bank Sizing ..................46 Battery Bank Sizing Worksheet ..............47 Battery Wiring Confi gurations ..............48 Limited Warranty ................51 How to Receive Repair Service ............51 Page iv © 2010 Magnum Energy, Inc. - Page 6 Figure 2-7, Battery Temperature Sensor ..................17 Figure 2-8, RD Series Inverter/Charger - AC Wiring ................ 20 Figure 2-9, RD Series Inverter/Charger - AC Wiring (Access Cover) ..........20 Figure 2-10, AC Terminal Block ..................... 21 Figure 2-11, AC Wiring for Single In - Single Out (30 A) Confi gurations ..........24 Figure 2-12, AC Wiring for Single In - Single Out (60 A) Confi...
-
Page 7: Introduction
Introduction 1.0 Introduction Congratulations on your purchase of the RD Series inverter/charger from Magnum Energy. The RD Series is a modifi ed sine wave inverter designed especially for renewable energy use. Powerful, yet simple to operate, this inverter/charger will provide you with the years of trouble-free performance you have come to expect from Magnum Energy, all backed by our limited 2 year warranty. -
Page 8: Features And Benefi Ts

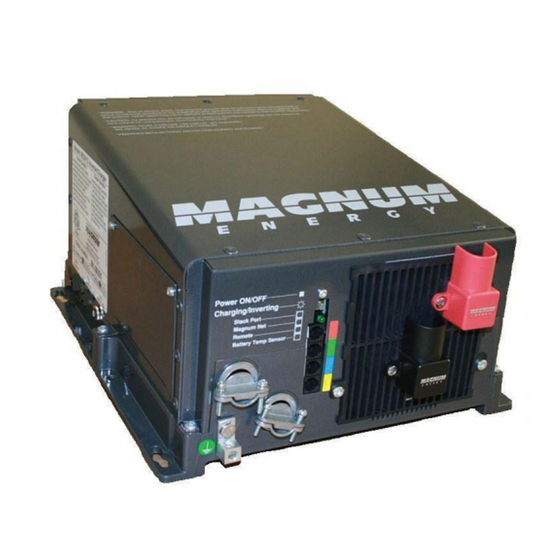

The front of the RD Series is equipped with the following features (see Figures 1-1 and 1-2): Power ON/OFF Switch - a momentary pushbutton switch that alternately turns the inverter On or Off. -
Page 9: Figure 1-1, Power Switch, Status Led, And Accessory Connection Ports
Figure 1-1, Power Switch, Status LED, and Accessory Connection Ports NTAKE ENTS AND ON RIGHT SIDE OSITIVE AC I NPUT TERMINAL UTPUT UNDER COVER ONNECTIONS EGATIVE TERMINAL UNDER COVER QUIPMENT ROUND ERMINAL OUNTING LANGE Figure 1-2, Electrical Connection Points Page 3 © 2010 Magnum Energy, Inc... -
Page 10: Figure 1-3, Left Side Features
Introduction The left side of the RD Series is equipped with the following features (see Figure 1-3): Exhaust Air Vent - ventilation openings that allow heated air to be removed by the internal cooling fan. Model/Serial Number Label - includes model/serial number information, date of manufacture, and inverter and charger specifi... -
Page 11: How An Inverter/Charger Works
Appliances and Run Time The RD Series inverter/charger can power a wide range of household appliances including small motors, hair dryers, clocks, and other electrical devices. As with any appliance using batteries for power, there is a certain length of time that it can run –... -
Page 12: Table 1-1, Typical Appliance Power Consumption
Even though it is diffi cult to calculate exactly how long an inverter will run a particular appliance, the best advice is trial and error. Your RD Series inverter has a built-in safeguard that automatically protects your batteries from over-discharge. -
Page 13: Installation
RD inverter/charger. The more thorough you plan in the beginning, the better your inverter needs will be met. 2.1.1 Unpacking and Inspection Carefully remove the RD Series inverter/charger from its shipping container and inspect all contents. Verify the following items are included: • The RD Inverter/Charger •... -
Page 14: Figure 2-1, Simplifi Ed Installation Diagram For Permanent Installations
M E - S B C S m art B attery C o m b in er (M ag n u m A ccesso ry ) Figure 2-1, Simplifi ed Installation Diagram for Permanent Installations © 2010 Magnum Energy, Inc. Page 8... - Page 15 The batteries must be mounted upright (if using liquid batteries) and securely fastened. The location must be fully accessible and protected from exposure to heat producing devices, and away from any fuel tanks. Page 9 © 2010 Magnum Energy, Inc...
-
Page 16: Mounting The Inverter
This surface and the mounting hardware must also be capable of supporting at least twice the weight of the inverter. To meet regulatory requirements, the RD Series must be mounted in one of the following positions, as shown in Figure 2-2: •... -
Page 17: Figure 2-3, Rd Series Dimensions And Side Reference
Keyhole slots (x4) and mounting holes 4 7/8" (x4) accept (12.4 cm) up to 9/32" (7 mm) screw/bolt 12" (30.5 cm) 12 5/8" (32.1 cm) Figure 2-3, RD Series Dimensions and Side Reference Page 11 © 2010 Magnum Energy, Inc... -
Page 18: Wiring The Inverter - General Requirements
Installation Wiring the Inverter - General Requirements This section describes the requirements and recommendations for wiring the RD Series inverter/ charger. Before wiring the inverter/charger, read all instructions. All wiring should meet all local codes and industry standards, and be performed by qualifi... -
Page 19: Dc Wiring
• Color code the DC cables/wires with colored tape or heat shrink tubing: RED for positive (+), WHITE for negative (-), and GREEN (or bare copper) for DC ground to avoid polarity problems. Page 13 © 2010 Magnum Energy, Inc... -
Page 20: Figure 2-4, Dc And Battery Temperature Sensor Wiring
D C S y s te m G rounding point [E le c trode C onduc tor (i .e ., ground rod )] Battery Bank Figure 2-4, DC and Battery Temperature Sensor Wiring © 2010 Magnum Energy, Inc. Page 14... -
Page 21: Table 2-1, Recommended Dc Wire/Overcurrent Device For Rated Use
Note 5 - May not allow continuous operation at full rated power as defi ned by the NEC. Page 15 © 2010 Magnum Energy, Inc... -
Page 22: Figure 2-5, Battery Hardware Installation
(5/16 -18" bolt, the cable ring lug 5/8" length) and the battery post. battery battery cable post (w ith ring lug) Figure 2-5, Battery Hardware Figure 2-6, Inverter DC Hardware Installation Installation © 2010 Magnum Energy, Inc. Page 16... -
Page 23: Figure 2-7, Battery Temperature Sensor
3) the correct DC voltage and polarity have been verifi ed. Info: For the RD Series inverter/charger to perform optimally, a minimum battery bank of 200 AH is recommended for moderate loads (<1000W) and greater than 400 AH for heavy loads (≥1000W). - Page 24 If the batteries are in an enclosure, perform a fi nal check of the connections to the battery terminals, and then close and secure the battery enclosure. © 2010 Magnum Energy, Inc. Page 18...
-
Page 25: Ac Wiring
AC circuits. The RD Series allows the AC input and output wiring to be permanently wired. The inverter’s input is wired to the service/distribution panel (main panel). The inverter’s output is then wired to a dedicated panel (sub-panel). -
Page 26: Figure 2-8, Rd Series Inverter/Charger - Ac Wiring
Strain Relief AC Input/ Output Strain Relief Figure 2-8, RD Series Inverter/Charger - AC Wiring AC Access Cover AC Input Circuit Breaker (CB3) Figure 2-9, RD Series Inverter/Charger - AC Wiring (Access Cover) © 2010 Magnum Energy, Inc. Page 20... -
Page 27: Figure 2-10, Ac Terminal Block
AC ground terminal to the input and output ground connections. HOT 2 IN HOT 1 OUT HOT 1 IN HOT 2 OUT NEUT IN NEUT OUT AC GROUND (In & Out) Figure 2-10, AC Terminal Block Page 21 © 2010 Magnum Energy, Inc... - Page 28 3. After verifying all AC connections are correct and all inverter AC terminal screws are torqued to 16 in lbf (1.8 N-m), replace the AC wiring access cover and the covers on the main electrical/ distribution panel. © 2010 Magnum Energy, Inc. Page 22...
-
Page 29: Table 2-3, Ac Input/Output Wiring Confi Gurations
Figure 2-14 Diagram Note 1: AC Source is from either utility power or a generator. Note 2: If two legs of 30A @ 120 VAC are used, they must be from the same source. Page 23 © 2010 Magnum Energy, Inc... -
Page 30: Figure 2-11, Ac Wiring For Single In - Single Out (30A) Confi Gurations
(U tility P o w e r /G e n e ra to r In p u t ) (In v e rte r L o a d s ) Figure 2-11, AC Wiring for Single In - Single Out (30A) Confi gurations © 2010 Magnum Energy, Inc. Page 24... -
Page 31: Figure 2-12, Ac Wiring For Single In - Single Out (60A) Confi Gurations
(U tility P o w e r /G e n e ra to r In p u t ) (In v e rte r L o a d s ) Figure 2-12, AC Wiring for Single In - Single Out (60A) Confi gurations Page 25 © 2010 Magnum Energy, Inc... -
Page 32: Figure 2-13, Ac Wiring For Dual In - Single Out Confi Gurations
(U tility P o w e r /G e n e ra to r In p u t ) (In v e rte r L o a d s ) Figure 2-13, AC Wiring for Dual In - Single Out Confi gurations © 2010 Magnum Energy, Inc. Page 26... -
Page 33: Figure 2-14, Ac Wiring For Dual In - Dual Out Confi Gurations
(U tility P o w e r /G e n e ra to r In p u t ) (In v e rte r L o a d s ) Figure 2-14, AC Wiring for Dual In - Dual Out Confi gurations Page 27 © 2010 Magnum Energy, Inc... -
Page 34: Grounding Inverters
The RD Series inverter/charger uses both AC and DC power; however, the AC electrical system is isolated from the DC electrical system by an internal transformer. Although this inverter/charger has two electrical systems, each electrical system must be properly grounded and connected to a common “earth”... -
Page 35: Figure 2-16, Multiple Connections To Dc Ground Rod (Method 1)
G E C -D C S y s tem G E C -A C Grounding Electrode Grounding Electrode (AC side dedicated ) (D C side dedicated) Figure 2-16, Multiple Connections to DC Ground Rod (Method 1) Page 29 © 2010 Magnum Energy, Inc... -
Page 36: Figure 2-17, Multiple Connections To Dc Ground Rod (Method 2)
E G C - D C G E C -A C G rounding S y s tem G E C -D C Grounding Electrode (D C side dedicated) Figure 2-18, Single Connection to DC Ground Rod (Method 3) © 2010 Magnum Energy, Inc. Page 30... -
Page 37: Table 2-5, Equipment Grounding Conductor Sizing
2.6.2 System Bonding Jumper The RD Series inverter does not include an internal bond between the grounded conductor (AC neutral/DC negative) and the equipment grounding terminals. This bond [System Bonding Jumper (SBJ)] is usually done in the main distribution panel for each electrical system. -
Page 38: Inverter Notifi Cation Requirements
4. Connect a small light bulb no larger than 75 watts to the inverter output and verify it comes on and shines normally. DO NOT connect anything but a light bulb until all wiring and voltages are confi rmed to be correct. © 2010 Magnum Energy, Inc. Page 32... -
Page 39: Figure 2-20, Ac Voltage Checks
A C O u tp u t 120 V ac ( ± 5% ) 3 0 30 N eu tral to G ro u n d < 0.5 V ac Figure 2-20, AC Voltage Checks Page 33 © 2010 Magnum Energy, Inc... -
Page 40: Operation
5 to 50 watts using the ME-RC50 remote display. Inverting - When a load greater than 5 watts is connected to the inverter output, the RD Series “inverts” the DC power from the battery and supplies 120 VAC power to your sub-panel. The inverter’s green LED fl... -
Page 41: Standby Mode
Operation Standby Mode The RD Series features an automatic transfer relay and an internal battery charger when operating in Standby Mode. Standby Mode begins whenever AC power (utility power or generator) is connected to the inverter’s AC input. Once the AC voltage and frequency of the incoming AC power is within the AC input limits, an automatic AC transfer relay is activated. -
Page 42: Figure 3-3, Automatic 4-Stage Charging Graph
24.2 VDC on 24-volt models) or lower, the unit will begin another bulk charge. * These settings in the RD Series are changeable and leave the factory with default values (see Table 3-2, Inverter/Charger Default Values). These default values are adequate for most installations, however, if you determine that some of the values need to be changed for your particular system, the ME-RC50 remote control may be purchased to adjust these settings. -
Page 43: Transfer Time
The transfer from Standby Mode to Inverter Mode occurs in approximately 16 milliseconds. While the RD Series is not designed as a computer UPS system, this transfer time is usually fast enough to hold them up. However, the VAC dropout setting has an effect on the ability of the loads to transfer without resetting. -
Page 44: Protection Circuitry Operation
(1 minute delay) (9.0 - 12.2 VDC) (18.0 - 24.4 VDC) (18.0 - 24.4 VDC) (18.0 - 24.4 VDC) LBCO (immediate) 8.5 VDC 17.0 VDC 17.0 VDC 17.0 VDC *adjustable with remote control © 2010 Magnum Energy, Inc. Page 38... -
Page 45: Inverter Startup
AC loads connected to the inverter’s output). Power ON/OFF pushbutton switch Charging/Inverting Status LED indicator Figure 3-5, Power Switch and Status Indicator Page 39 © 2010 Magnum Energy, Inc... -
Page 46: Factory Default Values
Operation Factory Default Values Your RD Series inverter/charger uses default values for the adjustable settings (see Table 3-2) that are adequate for most installations. If some of your operating parameters need to be changed from the default values, the optional ME-RC50 remote control can be used to make those changes. To help you determine if you need the ME-RC50 remote display, information on the inverter/charger settings that can be changed is provided below. -
Page 47: Maintenance And Troubleshooting
Maintenance and Troubleshooting 4.0 Maintenance and Troubleshooting The following information is provided to help you keep your RD Series inverter/charger in optimum operational condition. Recommended Inverter and Battery Care The RD Series inverter/charger is designed to provide you with years of trouble-free service. -
Page 48: Troubleshooting
Maintenance and Troubleshooting Troubleshooting The RD Series inverter/charger is a fairly simple device to troubleshoot. There are only two active circuits (AC and DC) as well as a charging circuit. The following chart is designed to help you quickly pinpoint the most common inverter failures. -
Page 49: Resetting The Inverter
15 seconds it should come on and fl ash rapidly to indicate the inverter has reset. The Status LED will go off after the pushbutton is released. Figure 4-1, Performing an Inverter Reset Page 43 © 2010 Magnum Energy, Inc... -
Page 50: Appendix A - Specifi Cations And Optional Equipment
Shipping Weight 42 lb (19.1 kg) 40 lb (18.1 kg) 47 lb (21.3 kg) 58 lb (26.3 kg) Max operating altitude 15,000’ (4570 m) Specifi cations @ 25°C - Subject to change without notice. © 2010 Magnum Energy, Inc. Page 44... -
Page 51: Optional Equipment And Accessories
Appendix A - Specifi cations A-2 Optional Equipment and Accessories The following Magnum Energy components are available for use with the RD Series inverter/charger. Some of these items are required depending upon the intended use of the inverter. MMP Series Enclosures The MMP175-30D, MMP175-60S, MMP250-30D, and MMP250-60S enclosures are for single in- verter applications. -
Page 52: Appendix B - Battery Information
AC utility power or generator power. Info: For the RD Series inverter/charger to perform optimally, a minimum battery bank of 200 AH is recommended for moderate loads (<1000W) and greater than 400 AH for heavy loads (≥1000W). -
Page 53: Battery Bank Sizing Worksheet
AC source for the calculated load, the Total Amp- Hours should be multiplied by 1.2 to factor in an average 80% inverter effi ciency. Page 47 © 2010 Magnum Energy, Inc... -
Page 54: Battery Wiring Confi Gurations
= 200 AH @ 12 VDC 6 VDC 6 VDC 200 AH @ 6 VDC (200 AH) (200 AH) add voltage and capacity together add voltage add capacity in series in parallel Figure B-3, Series-Parallel Battery Wiring © 2010 Magnum Energy, Inc. Page 48... -
Page 55: Figure B-4, Battery Bank Wiring Examples (12-Volt)
(6 VDC + 6 VDC) battery battery (200 AH) (200 AH) 12 volt battery bank (two strings of two 6-volt batteries wired in series and connected in parallel) Figure B-4, Battery Bank Wiring Examples (12-volt) Page 49 © 2010 Magnum Energy, Inc... -
Page 56: Figure B-5, Battery Bank Wiring Examples (24-Volt)
(200 AH) (200 AH) (200 AH) (200 AH) 24 volt battery bank (two strings of four 6-volt batteries wired in series and connected in parallel) Figure B-5, Battery Bank Wiring Examples (24-volt) © 2010 Magnum Energy, Inc. Page 50... -
Page 57: Limited Warranty
Appendix C - Warranty & Service Limited Warranty Magnum Energy, Inc., warrants the RD Series inverter/charger to be free from defects in material and workmanship that result in product failure during normal usage, according to the following terms and conditions: 1. - Page 58 Magnum Energy, Inc. 2211 West Casino Rd. Everett, WA 98204 Phone: 425-353-8833 Fax: 425-353-8390 Web: www.magnumenergy.com RD Series Owner’s Manual (PN: 64-0006 Rev A)
