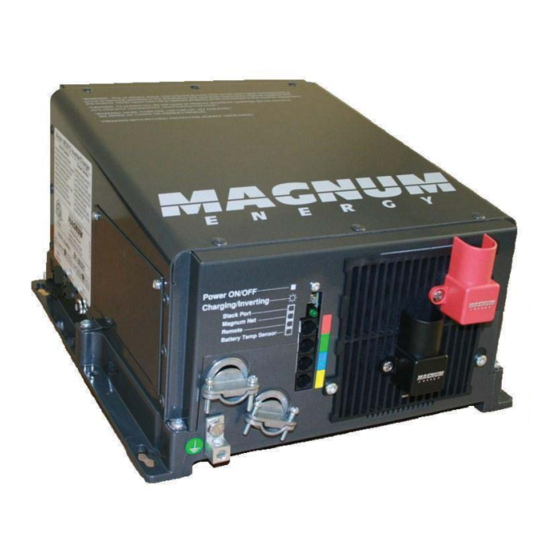

- Page 1 RD-E Series Modifi ed Sine Wave Inverters/Chargers Owner’s Manual...
-
Page 2: Contact Information
If the RD-E Series Inverter/Charger fails, it is reasonable to assume that the health of the user or other persons may be endangered. -
Page 3: Important Safety Instructions
CAUTION: This symbol indicates that failure to take a specifi ed action could result in damage to the equipment. Info: This symbol indicates information that emphasizes or supplements important points of the main text. Remedy: This symbol provides possible solutions for related issues. SAVE THESE INSTRUCTIONS Page ii © 2010 Magnum Energy, Inc. - Page 4 In the event of accidental exposure to battery acid, wash thoroughly with soap and water. In the event of exposure to the eyes, fl ood them for at least 15 minutes with running water and seek immediate medical attention. • Recycle old batteries. SAVE THESE INSTRUCTIONS © 2010 Magnum Energy, Inc. Page iii...
-
Page 5: Table Of Contents
Appendix B - Battery Information ............43 Battery Location ..................43 Battery Types ...................43 Battery Temperature .................43 Battery Bank Sizing ..................43 Battery Bank Sizing Worksheet ..............44 Battery Wiring Confi gurations ..............45 Limited Warranty ................47 How to Receive Repair Service ............47 Page iv © 2010 Magnum Energy, Inc. - Page 6 Figure 2-7, Battery Temperature Sensor ..................17 Figure 2-8, RD-E Series Inverter/Charger - AC Wiring ..............20 Figure 2-9, RD-E Series Inverter/Charger - AC Wiring (Access Cover) ..........20 Figure 2-10, AC Terminal Block ..................... 21 Figure 2-11, AC Wiring Input/Output ..................... 23 Figure 2-12, Grounding System for RD-E Series ................
-
Page 7: Introduction
RD-E Series is a modifi ed sine wave inverter designed especially for renewable energy systems. Powerful, yet simple to operate, this inverter/charger will provide you with the years of trouble- free performance you have come to expect from Magnum Energy, all backed by our limited 2 year warranty. -
Page 8: Features And Benefi Ts
The front of the RD-E Series is equipped with the following features (see Figures 1-1 and 1-2): Power ON/OFF Switch - a momentary pushbutton switch that alternately turns the inverter On or Off. -
Page 9: Figure 1-1, Power Switch, Status Led, And Accessory Connection Ports
AND ON RIGHT SIDE (+) DC OSITIVE TERMINAL AC I NPUT UNDER COVER UTPUT ONNECTIONS (-) DC EGATIVE TERMINAL UNDER COVER DC E QUIPMENT ROUND ERMINAL OUNTING LANGE Figure 1-2, Electrical Connection Points Page 3 © 2010 Magnum Energy, Inc... -
Page 10: Figure 1-3, Left Side Features
Introduction The left side of the RD-E Series is equipped with the following features (see Figure 1-3): Exhaust Air Vent - ventilation openings that allow heated air to be removed by the internal cooling fan. Model/Serial Number Label - includes model/serial number information, date of manufacture, and inverter and charger specifi... -
Page 11: How An Inverter/Charger Works
Appliances and Run Time The RD-E Series inverter/charger can power a wide range of household appliances including small motors, hair dryers, clocks, and other electrical devices. As with any appliance using batteries for power, there is a certain length of time that it can run –... -
Page 12: Table 1-1, Typical Appliance Power Consumption
Even though it is diffi cult to calculate exactly how long an inverter will run a particular appliance, the best advice is trial and error. Your RD-E Series inverter has a built-in safeguard that automatically protects your batteries from over-discharge. -
Page 13: Installation
If items appear to be missing or damaged, contact your authorized Magnum Energy dealer or Magnum Energy. If at all possible, keep your shipping box. It will help protect your inverter from damage if it ever needs to be returned for service. Save your proof-of-purchase as a record of your ownership;... -
Page 14: Figure 2-1, Simplifi Ed Installation Diagram For Permanent Installations
M E - S B C S m art B attery C o m b in er (M ag n u m A ccesso ry ) Figure 2-1, Simplifi ed Installation Diagram for Permanent Installations © 2010 Magnum Energy, Inc. Page 8... -
Page 15: Locating The Inverter
The batteries must be mounted upright (if using liquid batteries) and securely fastened. The location must be fully accessible and protected from exposure to heat producing devices, and away from any fuel tanks. Page 9 © 2010 Magnum Energy, Inc... -
Page 16: Mounting The Inverter
This surface and the mounting hardware must also be capable of supporting at least twice the weight of the inverter. To meet regulatory requirements, the RD-E Series must be mounted in one of the following positions, as shown in Figure 2-2: •... -
Page 17: Figure 2-3, Rd-E Series Dimensions And Side Reference
Keyhole slots (x4) and mounting holes 4 7/8" (x4) accept (12.4 cm) up to 9/32" (7 mm) screw/bolt 12" (30.5 cm) 12 5/8" (32.1 cm) Figure 2-3, RD-E Series Dimensions and Side Reference Page 11 © 2010 Magnum Energy, Inc... -
Page 18: Wiring The Inverter - General Requirements
Installation Wiring the Inverter - General Requirements This section describes the requirements and recommendations for wiring the RD-E Series inverter/ charger. Before wiring the inverter/charger, read all instructions. All wiring should meet all local codes and industry standards, and be performed by qualifi... -
Page 19: Dc Wiring
BLUE for negative (-), and GREEN (or GREEN w/YELLOW stripe) for DC ground to avoid polarity problems. Refer to Table A-2 for a list of equivalent wiring color codes for Europe and North America. Page 13 © 2010 Magnum Energy, Inc... -
Page 20: Figure 2-4, Dc And Battery Temperature Sensor Wiring
D C S y s te m G rounding point [E le c trode C onduc tor (i .e ., ground rod )] Battery Bank Figure 2-4, DC and Battery Temperature Sensor Wiring © 2010 Magnum Energy, Inc. Page 14... -
Page 21: Table 2-1, Recommended Dc Wire/Overcurrent Device For Rated Use
Note 4 - As recommended, the DC grounding electrode conductor can be a #6 AWG (33.6 mm2) conductor if that is the only connection to the grounding electrode and that grounding electrode is a rod, pipe, or plate electrode. Note 5 - May not allow continuous operation at full rated power. Page 15 © 2010 Magnum Energy, Inc... -
Page 22: Figure 2-5, Battery Hardware Installation
Ensure nothing is 5/8" length) placed between the cable ring lug and Battery cable the battery post. Battery (with ring lug ) post Figure 2-5, Battery Hardware Figure 2-6, Inverter DC Hardware Installation Installation © 2010 Magnum Energy, Inc. Page 16... -
Page 23: Figure 2-7, Battery Temperature Sensor
3) the correct DC voltage and polarity have been verifi ed. Info: For the RD-E Series inverter/charger to perform optimally, a minimum battery bank of 200 AH is recommended for moderate loads (<1000W) and greater than 400 AH for heavy loads (≥1000W). -
Page 24: Wiring The Inverter To The Battery Bank
If the batteries are in an enclosure, perform a fi nal check of the connections to the battery terminals, and then close and secure the battery enclosure. © 2010 Magnum Energy, Inc. Page 18... -
Page 25: Ac Wiring
AC circuits. The RD-E Series allows the AC input and output wiring to be permanently wired. The inverter’s input is wired to the service/distribution panel (main panel). The inverter’s output is then wired to a dedicated panel (sub-panel). -
Page 26: Figure 2-8, Rd-E Series Inverter/Charger - Ac Wiring
Clamp AC Input/ Output Strain Relief Clamp Figure 2-8, RD-E Series Inverter/Charger - AC Wiring AC Access Cover AC Input Circuit Breaker (CB3) Figure 2-9, RD-E Series Inverter/Charger - AC Wiring (Access Cover) © 2010 Magnum Energy, Inc. Page 20... -
Page 27: Figure 2-10, Ac Terminal Block
For multiple ground wires, use a pressure or mechanical connector to attach the single wire from the AC ground terminal to the input and output ground connections. HOT IN HOT OUT NEUT IN NEUT OUT AC GROUND (In & Out) Figure 2-10, AC Terminal Block Page 21 © 2010 Magnum Energy, Inc... - Page 28 & Out). The maximum inverter pass-thru capacity is 3600W (30A @ 230VAC). Refer to the wiring diagram in Figure 2-11. Note 1: AC Source is from either the utility/grid power or an AC generator. © 2010 Magnum Energy, Inc. Page 22...
-
Page 29: Figure 2-11, Ac Wiring Input/Output
S u b-P a n e l a n d O u tle ts ( U tility /G e n e ra to r In p u t ) (In v e rte r L o a d s ) Figure 2-11, AC Wiring Input/Output Page 23 © 2010 Magnum Energy, Inc... -
Page 30: Grounding Inverters
The RD-E Series inverter/charger uses both AC and DC power; however, the AC electrical system is isolated from the DC electrical system by an internal transformer. Although this inverter/charger has two electrical systems, each electrical system must be properly grounded and connected to a common “earth”... -
Page 31: Figure 2-13, Multiple Connections To Dc Ground Rod (Method 1)
G E C -D C S y s tem G E C -A C Grounding Electrode Grounding Electrode (AC side dedicated ) (D C side dedicated) Figure 2-13, Multiple Connections to DC Ground Rod (Method 1) Page 25 © 2010 Magnum Energy, Inc... -
Page 32: Figure 2-14, Multiple Connections To Dc Ground Rod (Method 2)
E G C - D C G E C -A C G rounding S y s tem G E C -D C Grounding Electrode (D C side dedicated) Figure 2-15, Single Connection to DC Ground Rod (Method 3) © 2010 Magnum Energy, Inc. Page 26... -
Page 33: Table 2-4, Equipment Grounding Conductor Sizing
2.6.2 System Bonding Jumper The RD-E Series inverter does not include an internal bond between the grounded conductor (AC neutral/DC negative) and the equipment grounding terminals. This bond [System Bonding Jumper (SBJ)] is usually done in the main distribution panel for each electrical system. -
Page 34: Inverter Notifi Cation Requirements
Replace the covers on the main electrical/distribution panel. Replace the chassis access cover. Verify the inverter’s front panel switch is in the OFF position. Info: If required by code, have the installation inspected by an electrical inspector. © 2010 Magnum Energy, Inc. Page 28... -
Page 35: Functional Test
B R O W N ( ± 5% ) B L U E 3 0 30 N eu tral to G ro u n d < 0.5 V ac Figure 2-17, AC Voltage Checks Page 29 © 2010 Magnum Energy, Inc... -
Page 36: Operation
This inverter also includes an extensive protection circuitry to shut down the inverter under certain fault conditions. Inverter Mode When the RD-E Series is fi rst powered up, it defaults to the OFF mode. The momentary Power ON/ OFF Switch (see Figure 1-1, Item 1) must be lightly pressed to turn the inverter ON. -
Page 37: Standby Mode
Figure 3-2, Power Flow - Standby Mode Battery Charging Magnum Energy’s RD-E Series is equipped with an active PFC (Power Factor Corrected) and PI (Proportional-Integral) multi-stage battery charger. The PFC feature is used to control the amount of power used to charge the batteries in order to obtain a power factor as close as possible to 1 (or unity). -
Page 38: Figure 3-3, Automatic 4-Stage Charging Graph
Info: If the battery voltage falls to the re-bulk voltage (24.2 VDC) or lower, the unit will begin another bulk charge. * These settings in the RD-E Series are changeable and leave the factory with default values (see Table 3-2, Inverter/Charger Default Values). These default values are adequate for most... -
Page 39: Transfer Time
The transfer from Standby mode to Inverter mode occurs in approximately 16 milliseconds. While the RD-E Series is not designed as a computer UPS system, this transfer time is usually fast enough to hold them up. However, the VAC dropout setting has an effect on the ability of the loads to transfer without resetting. -
Page 40: Protection Circuitry Operation
31.0 VDC LBCI ≥25.0 VDC ≥25.0 VDC LBCO* 20.0 VDC 20.0 VDC (1 minute delay) (18.0 - 24.4 VDC) (18.0 - 24.4 VDC) LBCO (immediate) 17.0 VDC 17.0 VDC *adjustable with remote control © 2010 Magnum Energy, Inc. Page 34... -
Page 41: Inverter Startup
AC loads connected to the inverter’s output). Power ON/OFF pushbutton switch Charging/Inverting Status LED indicator Figure 3-5, Power Switch and Status Indicator Page 35 © 2010 Magnum Energy, Inc... -
Page 42: Factory Default Values
Operation Factory Default Values Your RD-E Series inverter/charger uses default values for the adjustable settings (see Table 3-2) that are adequate for most installations. If some of your operating parameters need to be changed from the default values, the optional ME-RC50 or ME-ARC50 remote control can be used to make those changes. -
Page 43: Maintenance And Troubleshooting
Maintenance and Troubleshooting 4.0 Maintenance and Troubleshooting The following information is provided to help you keep your RD-E Series inverter/charger in optimum operational condition. Recommended Inverter and Battery Care The RD-E Series inverter/charger is designed to provide you with years of trouble-free service. -
Page 44: Troubleshooting
Maintenance and Troubleshooting Troubleshooting The RD-E Series inverter/charger is a fairly simple device to troubleshoot. There are only two active circuits (AC and DC) as well as a charging circuit. The following chart is designed to help you quickly pinpoint the most common inverter failures. -
Page 45: Resetting The Inverter
15 seconds it should come on and fl ash rapidly to indicate the inverter has reset. The Status LED will go off after the Power ON/OFF pushbutton is released. Figure 4-1, Performing an Inverter Reset Page 39 © 2010 Magnum Energy, Inc... -
Page 46: Appendix A - Specifi Cations And Optional Equipment
42 lb (19.1 kg) 55 lb (25 kg) Shipping weight 47 lb (21.3 kg) 60 lb (27.2 kg) Max operating altitude 15,000 ft (4570 m) Specifi cations @ 25°C - Subject to change without notice. © 2010 Magnum Energy, Inc. Page 40... -
Page 47: Optional Equipment And Accessories
Appendix A - Specifi cations A-2 Optional Equipment and Accessories The following Magnum Energy components are available for use with the RD-E Series inverter/ charger. Some of these items are required depending upon the intended use of the inverter. MMP Series Enclosures The MMP175-30D, MMP175-60S, MMP250-30D, and MMP250-60S enclosures are for single in- verter applications. -
Page 48: Wiring Color Codes For Europe And The U.s./Canada
Canada. In the U.S., the National Electrical Code (NEC) is the mandating authority; in Canada, it’s the Canadian Electrical Code (CEC). Most of Europe abides by the International Electrotechnical Commission’s (IEC) wiring color codes. The tables also list the labels that Magnum Energy applies to identify AC/DC wiring usage in its inverters. -
Page 49: Appendix B - Battery Information
AC utility power or generator power. Info: For the RD-E Series inverter/charger to perform optimally, a minimum battery bank of 200 AH is recommended for moderate loads (<1000W) and greater than 400 AH for heavy loads (≥1000W). -
Page 50: Battery Bank Sizing Worksheet
AC source for the calculated load, the Total Amp- Hours should be multiplied by 1.2 to factor in an average 80% inverter effi ciency. © 2010 Magnum Energy, Inc. Page 44... -
Page 51: Battery Wiring Confi Gurations
= 200 AH @ 12 VDC 6 VDC 6 VDC 200 AH @ 6 VDC (200 AH) (200 AH) add voltage and capacity together add voltage add capacity in series in parallel Figure B-3, Series-Parallel Battery Wiring Page 45 © 2010 Magnum Energy, Inc... -
Page 52: Figure B-4, Battery Bank Wiring Examples (24-Volt)
(200 AH) (200 AH) (200 AH) (200 AH) 24 volt battery bank (two strings of four 6-volt batteries wired in series and connected in parallel) Figure B-4, Battery Bank Wiring Examples (24-volt) © 2010 Magnum Energy, Inc. Page 46... -
Page 53: Limited Warranty
Magnum Energy’s limit of liability under the limited warranty shall be the actual cash value of the product at the time the original purchaser returns the product for repair, determined by the price paid by the original purchaser. Magnum Energy shall not be liable for any other losses or damages. - Page 54 Magnum Energy, Inc. 2211 West Casino Rd. Everett, WA 98204 Phone: 425-353-8833 Fax: 425-353-8390 Web: www.magnumenergy.com RD-E Series Owner’s Manual (PN: 64-0046 Rev A)
