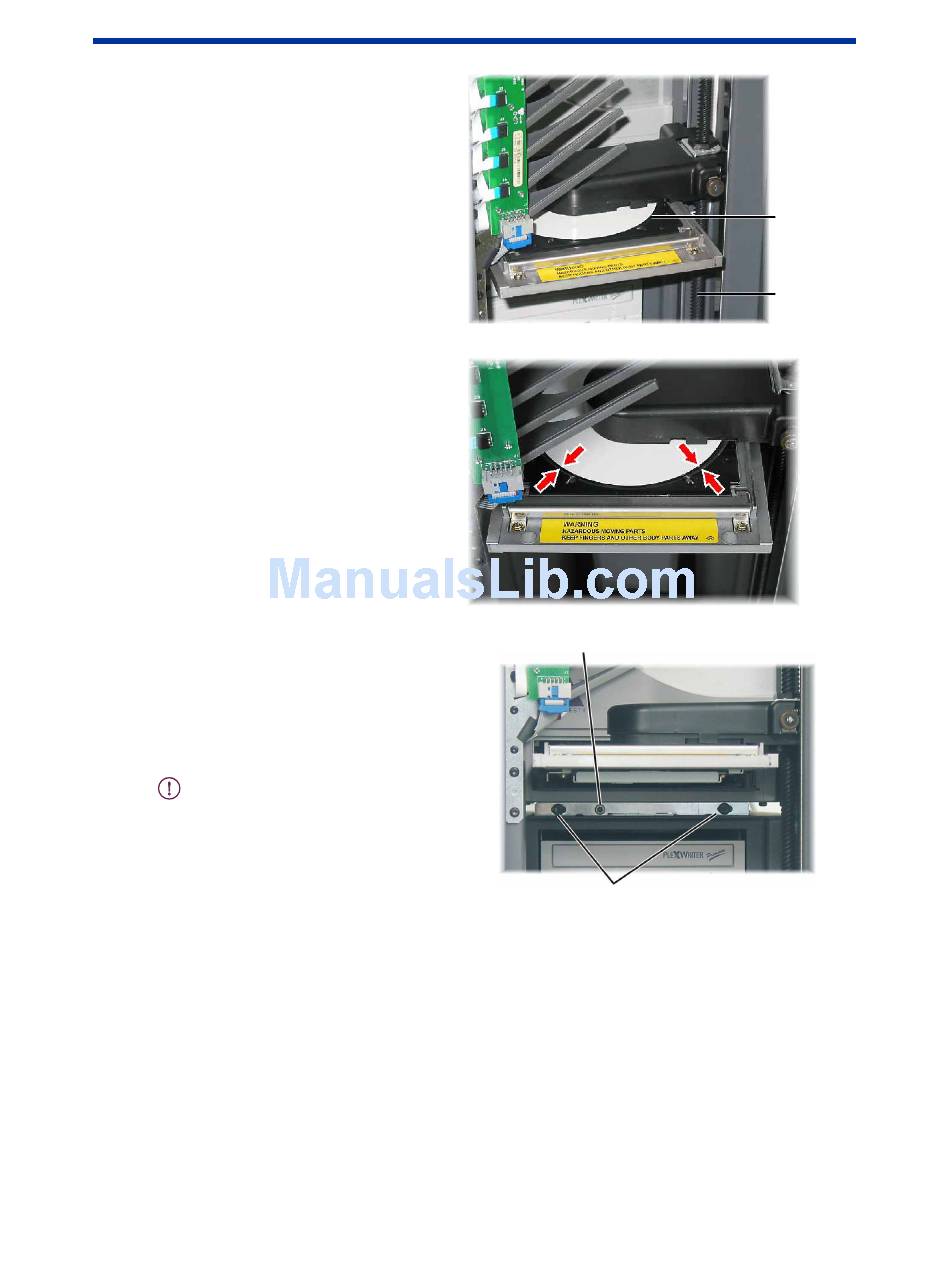

3. Check the disc alignment.
To see if the disc is centered, observe
the gap between the edge of the disc and
the raised edges as shown by the
arrows.
If the disc is not centered side to side on
the print pad, continue to step 4.
If the side to side alignment is correct, go
to step 5.
4. If necessary, perform a side to side
alignment.
a. Loosen the two side to side
alignment screws.
b. Slide the printer until the side gaps
are equal.
Important! Slide the entire
printer, not the drawer.
c. Tighten the two side to side
alignment screws.
110768_D
Maintain the DLN5200/DL5200
Front to back Alignment Screw
Side to side Alignment Screws
Print Pad
Lead Screw
