tool for RJ45, one electric iron, and some soldering tin.
Pin definition
To make the RJ45 according to the following pin definition; I means DVR input, O means
DVR output.
Pin index
1
2
3
4
5
6
7
8
According to demand, the following three situations are considered to make the serial port
plug-in according to the corresponding relationship of the pin definition.
(1) When the serial port of the DVR is connected with the DTE device with DB25 plug-in
(terminal like computer, annunciator, door access etc), the corrresponding relationship is as
follows:
(2) When the serial port of the DVR is connected with DTE device with DB9 plug-in, the
corresponding relationship is as follows:
LJD Digital Security Ltd
Copyright © 2005. All rights reserved.
User Manual for COLOSSUS Series Embedded Net DVR
Name I/O
DCD I
RxD I
TxD O
CTS I
RTS O
DTR O
GND
Null
—

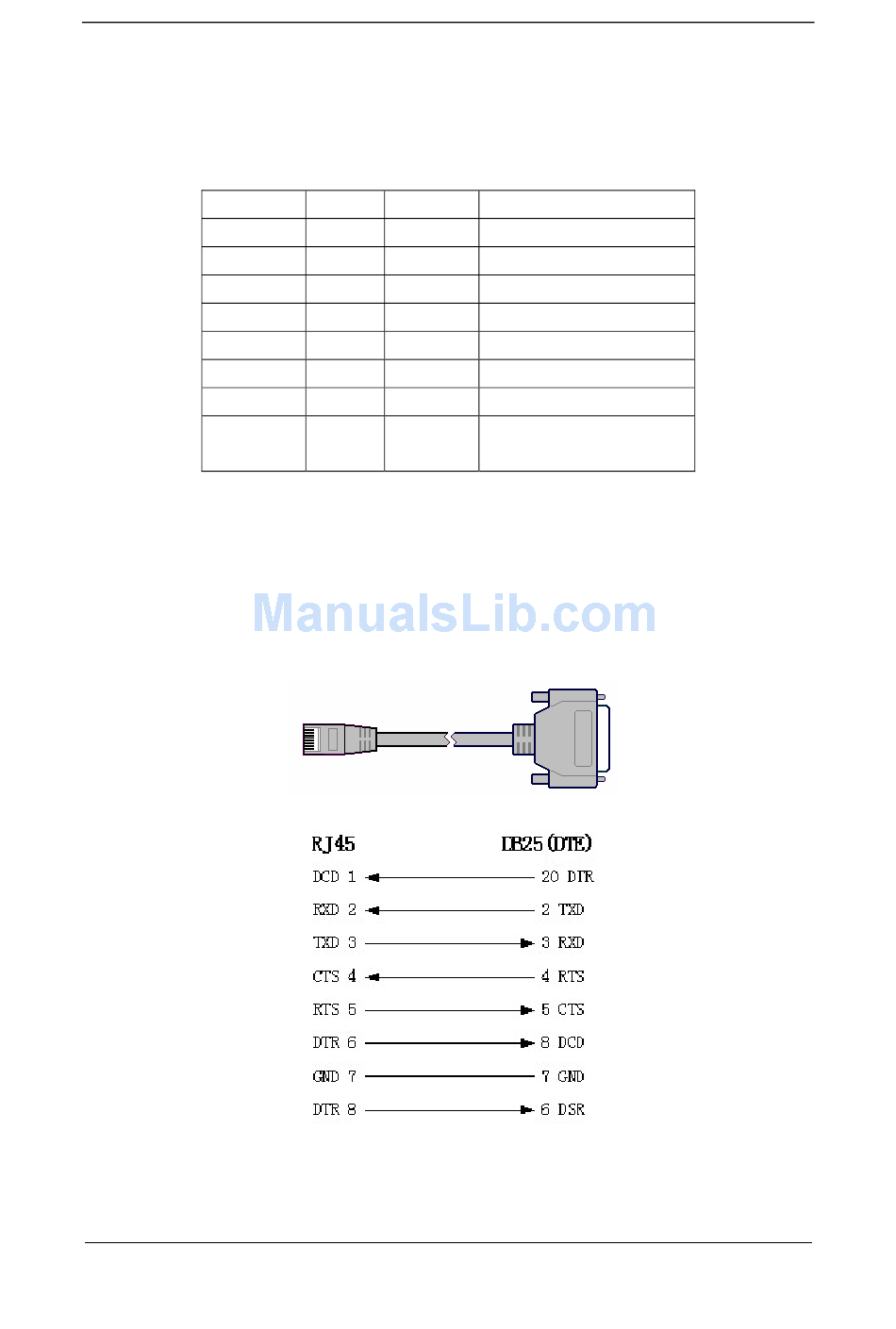

Connection for RJ45 and DB25 (DTE)
Description
Carrier Detect
Receive Data
Transfer Data
Clear Data
Request to Send
Terminal Device Ready
Ground
—
