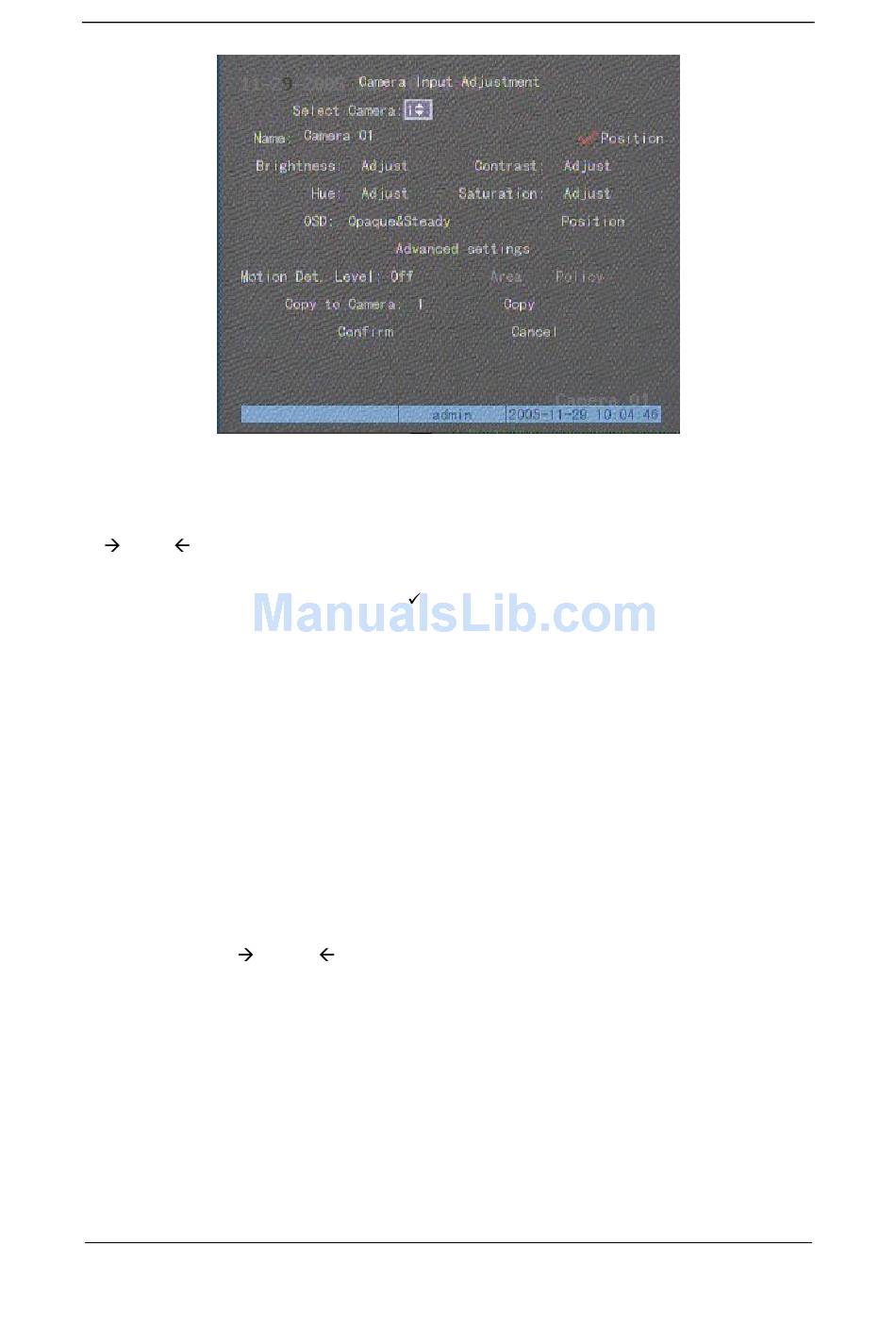

Each menu contains different kinds of items. There is a small rectangular frame named
"Active Frame" which is pointing to the selected item. This "Active Frame" can be moved by
【 】or【 】keys. There are such kinds of menu items:
1. Check Box: Provide 2 options, " " means enable and "×" means disable. You can use
【ENTER】or【EDIT】key to switch over.
2. List Box: Provide more than 2 options. However, only one of them can be selected. You
can use【↑】and【↓】to select one option. For example, on the right side of "Select
Camera", there is a list box for you to select one camera.
3. Edit Box: This is for you to input characters. Press【EDIT】key to enter into edit status,
you can input characters as following:
a) Press【A】key to select number, upper case, lower case or symbols;
b) Use【 】and【 】keys to move cursor;
c) Use【EDIT】key to delete the charcter in front of cursor;
d) Press【ENTER】or【ESC】to exit edit.
4. Button: Excute a special function or enter into next sub-menu. For example, press
"Policy" button to enter into sub-menu. Press【Confirm】to save parameters and return
to parent menu. Press 【 Cancel】 button to cancel and return to parent menu. The button in
