5.16 RS232 setup

There is one RS-232 port at DVR rear panel. In main menu, move "Active Frame" to

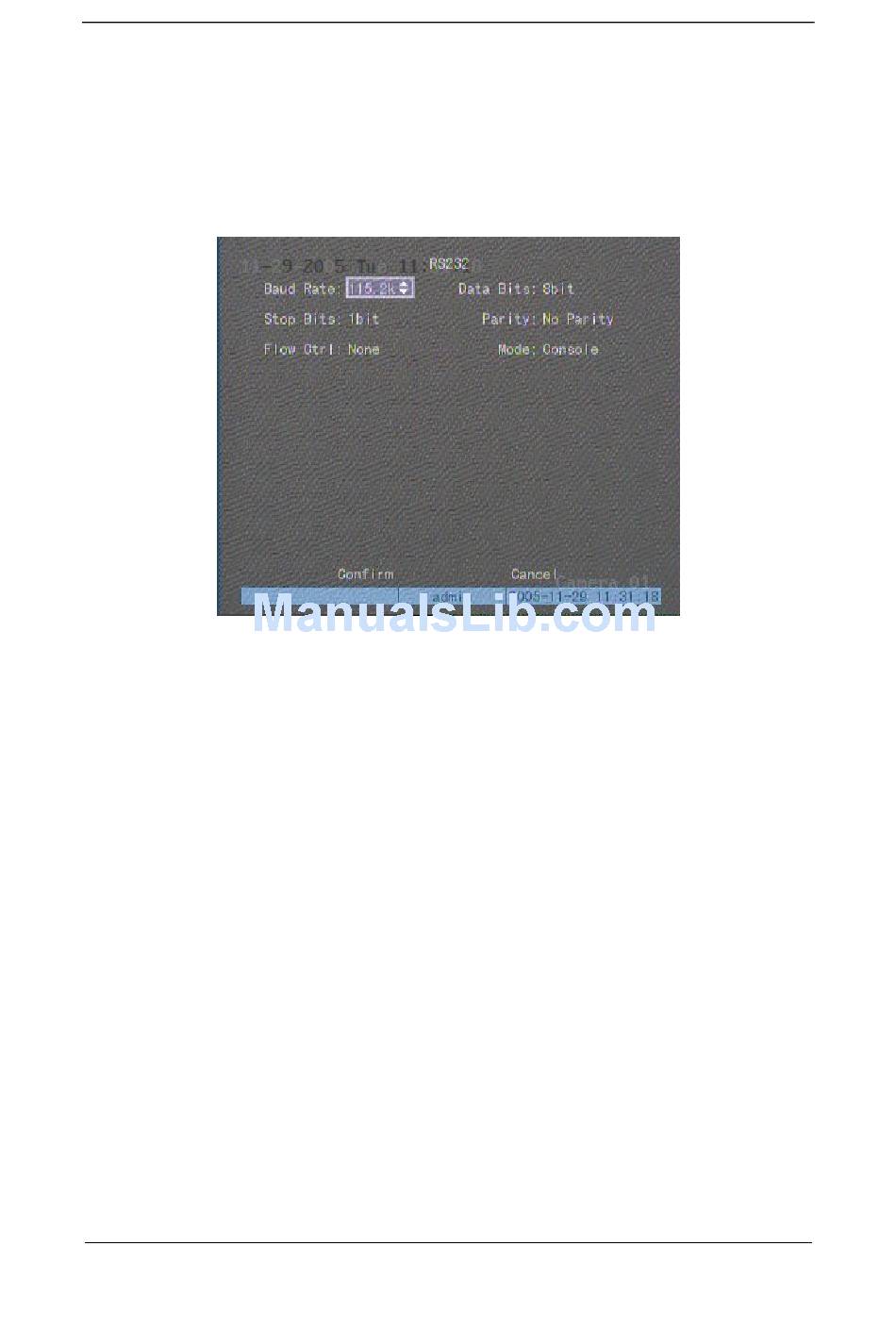

"RS232" icon and perss【ENTER】key, you enter into "RS232" setup menu:
RS232 menu description
RS-232 parameters: Including baud rate, data bit, stop bit, parity, flow control, etc.
Work mode: The RS-232 can be used as "Console".
Console: Connect with PC serial port. You can use HyperTerminal or NetTerm to control it.
