Connect Cable Made Method - LJD Digital Security Colossus Pro User Manual

(1) Use the following method to make the network cable when DVR is connected with
network hub or switch.
(2) Use the following method to make the cross network cable when DVR is directly
connected with client-end PC.
3 RS-232 connect cable made method
Material and tool
One twisted cable (8 pins), one standard RJ45 head, one or more DB25 or DB9 plug-in, a
LJD Digital Security Ltd
Copyright © 2005. All rights reserved.
User Manual for COLOSSUS Series Embedded Net DVR

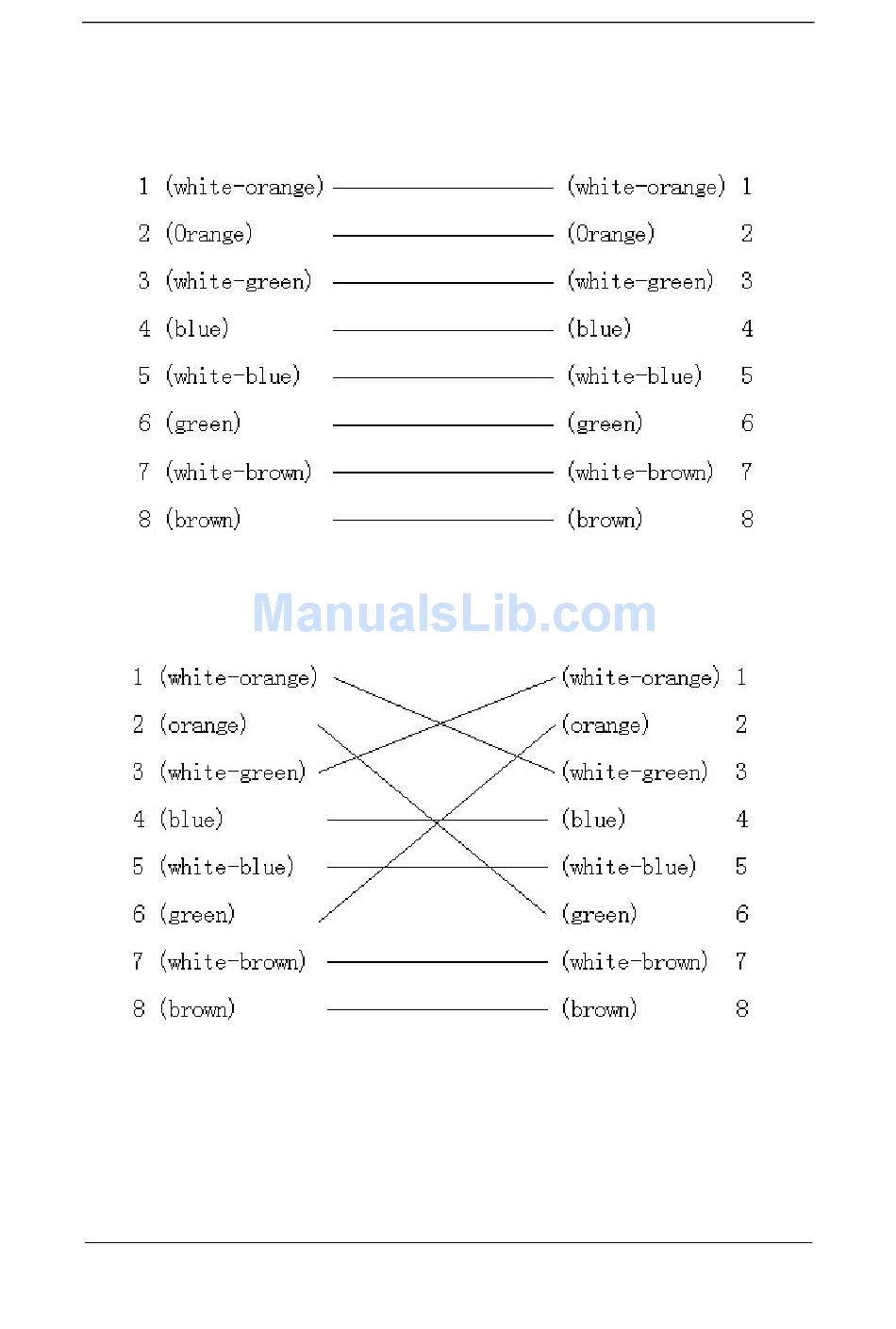

The corresponding relationship of the direct cable
The corresponding relationship of cross cable
