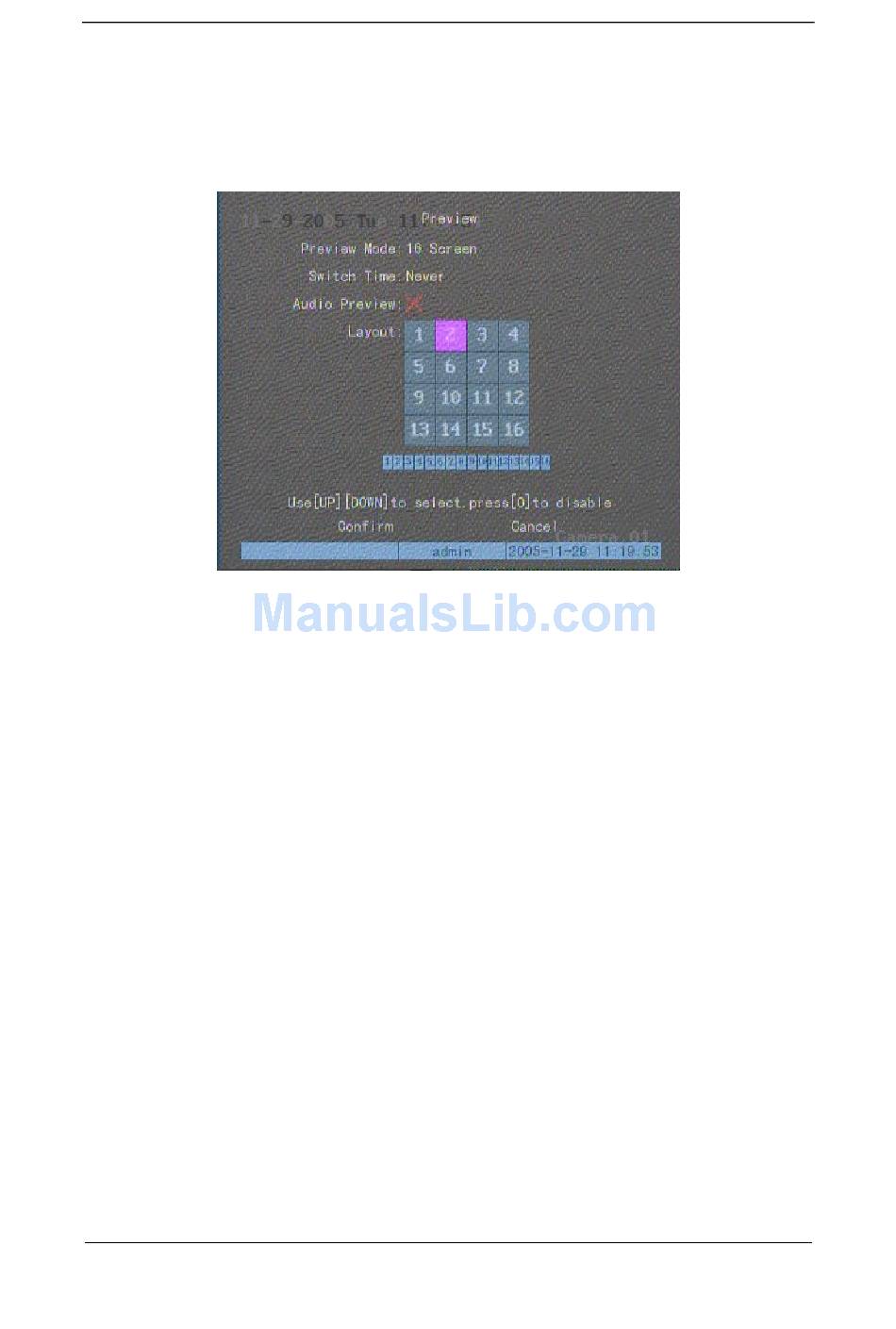

Screen"preview mode, this frame is divided into 4 windows. Each window represents one camera.
You can move "Active Frame" among the windows. There is one bar under the square to display
the preview order of all cameras.
First select the biggest screen preview mode, for example, for 16-channel DVR, select "16
Screen" preview mode so that all windows are display in the square.
Secondly, move "Active Frame" to one of these windows, press numeric keys to input
camera index (If DVR has less than 10 channels, just use one numeric key, otherwise, use 2
numeric keys ). The small window will display that camera number. In this way you can change
the display order. If you press 0 or 00, then the corresponding window will not display live video.
After you define the camera perview order, you can select preview mode to meet your
demand.
Save setup: Press "Confirm" button to save preview properties. Press "Cancel" or 【ESC】
key to abort.
