Video Output Standard and VGA Setup

Video output standard
There is one VOUT BNC connector at the rear panel of DVR. It is used to connect with
analog monitor and can support PAL or NTSC video output. You can modify video output
standard to match video input.
In "Display" menu:
There is a list box named "Video Output Standard", you can use【 】 【 】key to select PAL
or NTSC video output.
VGA setup

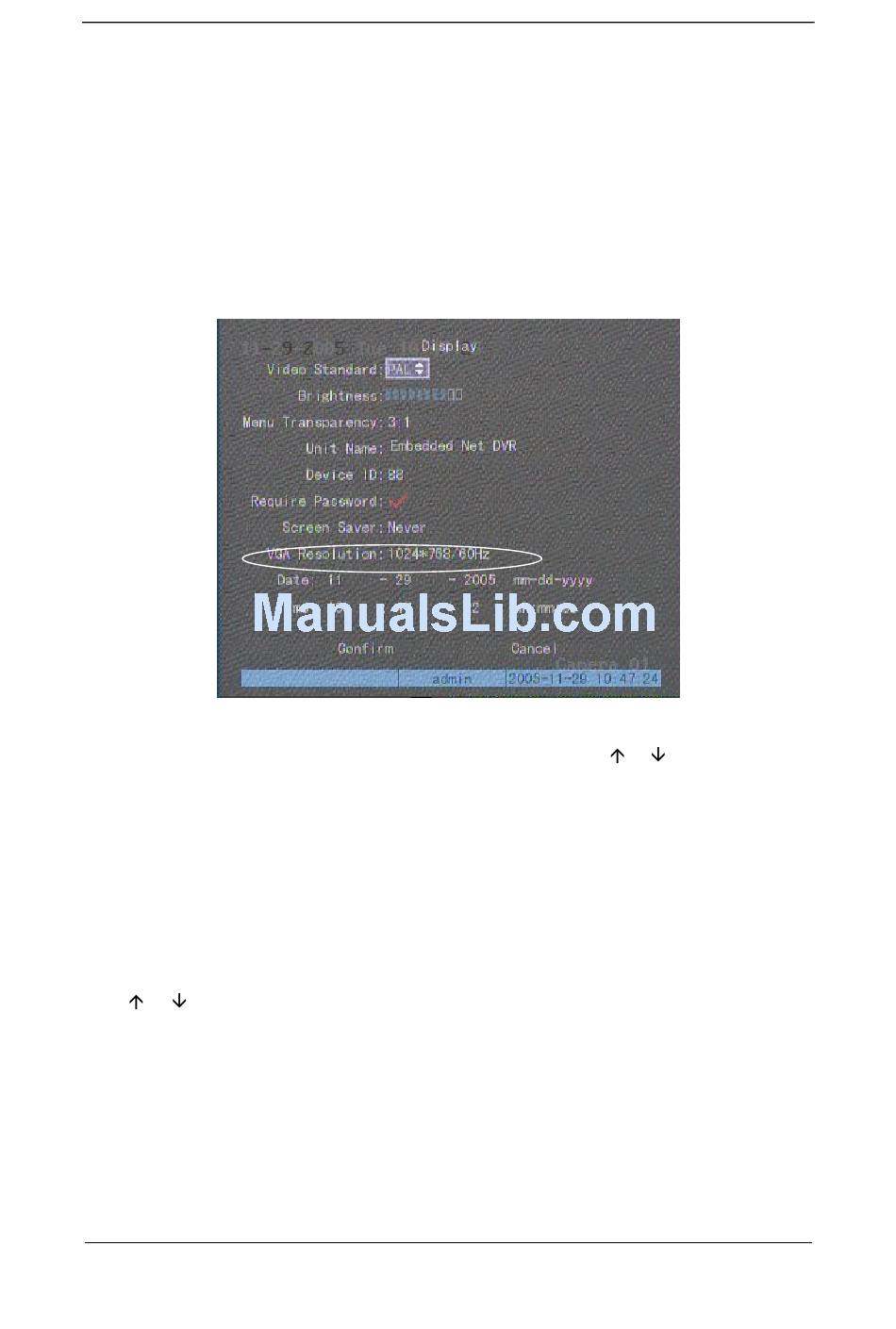

There is one VGA interface at the real panel of DVR. You can use it to connect with VGA
display. You can define VGA resolution, refresh frequency in "Display" menu.
There are following options: 1024*768/60Hz, 800*600/60Hz and 800*600/75Hz. You can
use【 】 【 】key to select.
Press "Confirm" button to save or "Cancel" to abort.
