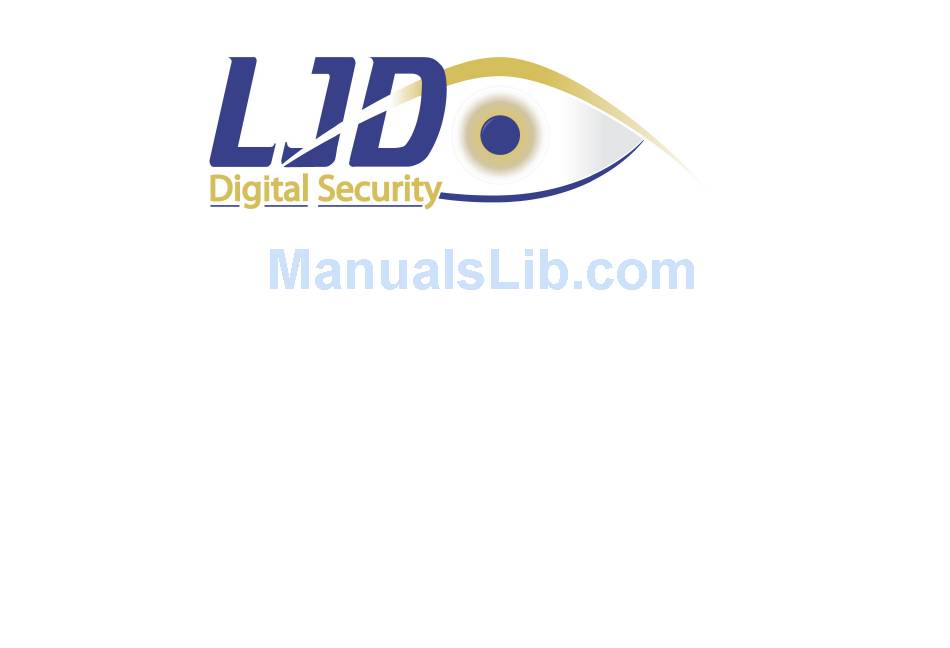

Page 1: Quick Start
COLOSSUS DVR Quick Start User Guide Page 1... - Page 2 ADMIN PASSWORD IS: 12345 This is for menu options and playback preview Remote Setup Loading the batteries into the IR controller Remove the battery cover. Insert the battery. Please take care that the poles (+ and -) are correctly positioned. Replace the battery cover.
- Page 3 One Channel Playback Two Channels Playback In preview or menu modes, press [PLAY] key and enter your username and password. [pic one or two channels playback] If you select anything other than “No” for “Second” then it will search and play data for two channels. The “Second”...
- Page 4 “Search” button and press【ENTER】key, DVR will search and list the matched files. If the matched files are more than 8, you can use “Page No.” to select page (use numeric keys or【↑】【↓】keys to select page). In the file list box, use【↑】【↓】keys to move the scroll bar to the file, press【ENTER】key to playback the file.
-
Page 5: Motion Detection Alarm
Exit: 【ESC】 Playback switch: When in 2-ch playback, press【PREV】to switch between main channel and second channel. Note: When DVR is busy, if you select high play speed, maybe there is difference for actual play speed. Exit playback Motion Detection Alarm If you enable this function, when there is motion detected, DVR will make alarm. - Page 6 The whole screen is divided into 22*18 panes (NTSC: 22*15). There is one yellow panel on the upper left side. The motion area setup steps are the same as that of mask area setup (refer to chapter 5.7). The only differences are that you can use【PTZ】key to set the whole screen as motion area, and motile motion areas can be defined. Press【A】key to clear all motion areas.
- Page 7 Note: In order to make the cameras start recording, in “Recording” menu, you must enable recording schedule and set “Rec Type” as “Motion Detection” or “Motion | Alarm”. Please refer to chapter 5.12 for recording setup. Step 7: Motion alarm schedule: When the motion alarm is happened in schedule, DVR will response such as “On Screen Warning”, “Audible Warning”, “Upload to Center” and “Trigger Alarm Output”.
