2.3

Rear Panel Description

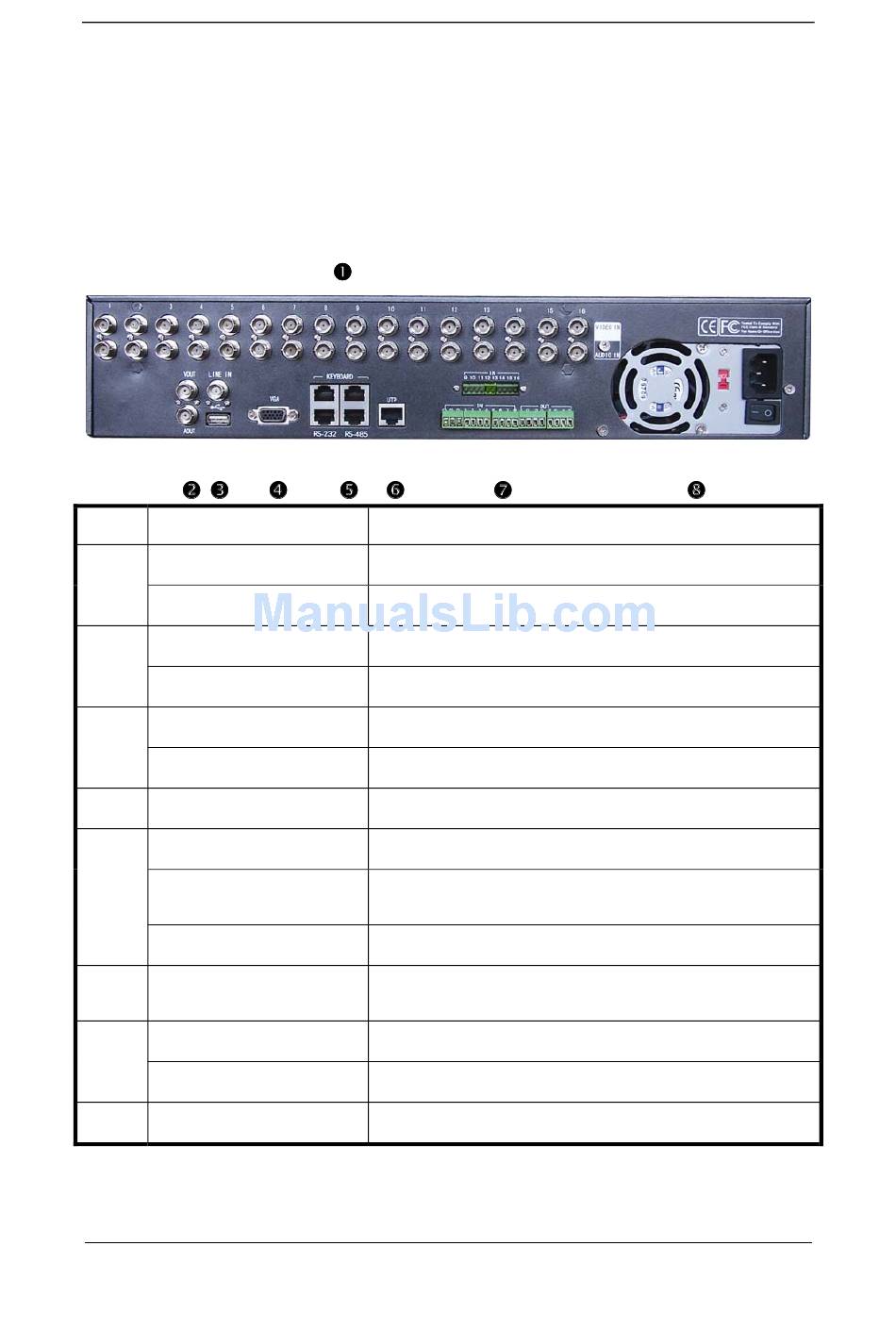

2.3.1 COLOSSUS Rear Panel

Notice: This picture is for COLOSSUS16
Index Physical Interface
Video Input
1
Audio Input
Video Output
2
Audio Output
Line In
3
USB Interface
4
VGA Interface
Keyboard Interface
5
RS-232
RS-485
6
UTP Network Interface
External Alarm Input
7
Relay Output
8
AC Input
LJD Digital Security Ltd
Copyright © 2005. All rights reserved.
User Manual for COLOSSUS Series Embedded Net DVR
Standard BNC.
Standard BNC.
Connect monitor, output video and menu.
Local audio output.
Audio line input for voice.
USB memory disk, USB HDD, USB CD-R/W
VGA display.
One is for Dvr pro keyboard, and one is for DVR cascade.
Connect RS-232 devices. Refer to Appendix B for pin
definition.
PTZ connection. Refer to Appendix B for pin definition.
Connect network devices. Refer to Appendix B for pin
definition.
8/16 Alarm in.
4 Alarm out
Use switch to change AC voltage 220/110V.
Description
Page
of
9 107
