5.7

Mask Area Setup

In some cases, maybe you want mask the sensitive area. This area will not be preview and
recorded. The mask area setup steps are following:

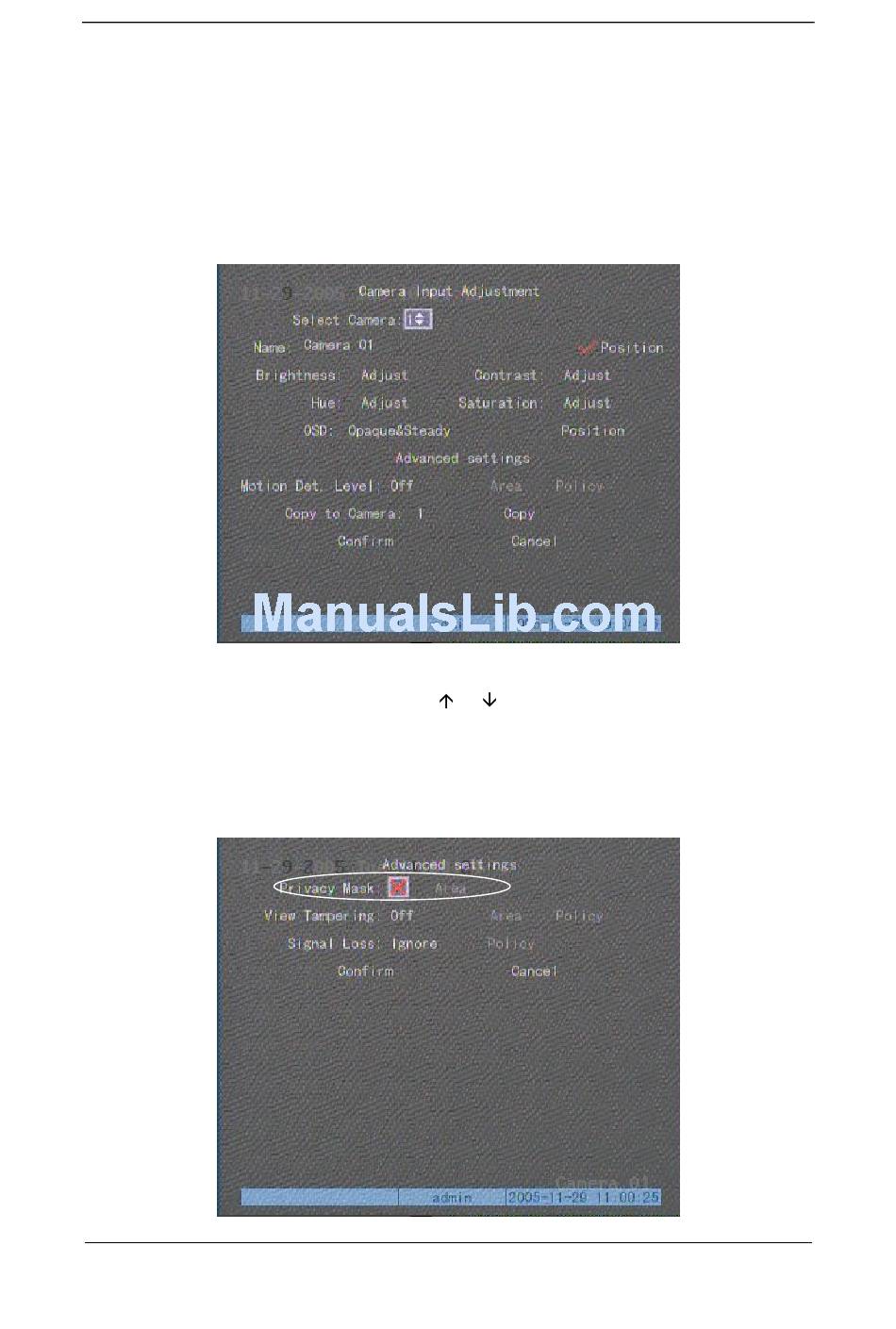

Step 1: Enter into "Image Setup" menu:
Step 2: Select one camera: You can use【 】 【 】keys to select one camera.
Step 3: Enter into advanced settings: Move "Active Frame" to "Advanced settings" item
and press【Enter】to enter into advanced settings interface.
LJD Digital Security Ltd
Copyright © 2005. All rights reserved.
User Manual for COLOSSUS Series Embedded Net DVR
