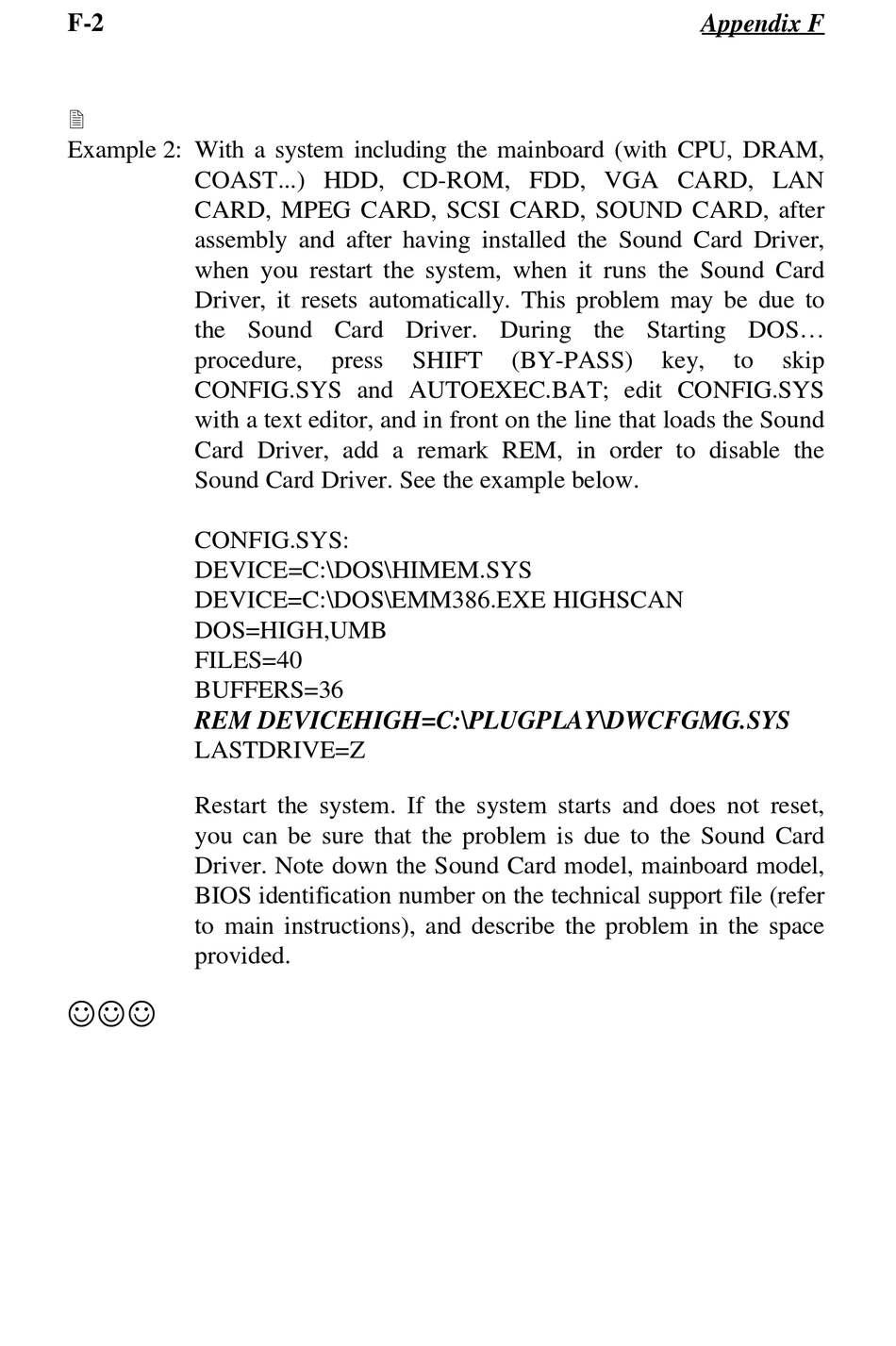

Abit IT5E Series User Manual page 92

F-2
2
Example 2: With a system including the mainboard (with CPU, DRAM,
COAST...) HDD, CD-ROM, FDD, VGA CARD, LAN
CARD, MPEG CARD, SCSI CARD, SOUND CARD, after
assembly and after having installed the Sound Card Driver,
when you restart the system, when it runs the Sound Card
Driver, it resets automatically. This problem may be due to
the Sound Card Driver. During the Starting DOS...
procedure,
CONFIG.SYS and AUTOEXEC.BAT; edit CONFIG.SYS
with a text editor, and in front on the line that loads the Sound
Card Driver, add a remark REM, in order to disable the
Sound Card Driver. See the example below.
CONFIG.SYS:
DEVICE=C:\DOS\HIMEM.SYS
DEVICE=C:\DOS\EMM386.EXE HIGHSCAN
DOS=HIGH,UMB
FILES=40
BUFFERS=36
REM DEVICEHIGH=C:\PLUGPLAY\DWCFGMG.SYS
LASTDRIVE=Z
Restart the system. If the system starts and does not reset,
you can be sure that the problem is due to the Sound Card
Driver. Note down the Sound Card model, mainboard model,
BIOS identification number on the technical support file (refer
to main instructions), and describe the problem in the space
provided.
JJJ
press SHIFT (BY-PASS) key,
Appendix F
to skip
