(2) Standard CMOS Setup Menu

It is the basic configuration parameters of the BIOS. These
parameters include the settings of date, hour, VGA card, FDD and HDD.
Date(mm:dd:yy) : Wed,Jul 10 1996
Time(hh:mm:ss) : 14:53:31
HARDS DISKS Type
Primary Master : None
Primary Slave : None
Secondar Master : None
y
Secondar Slave : None
y
Drive A: 1.44M,3.5IN.
Drive B: None
Floppy 3Mode Support: Disable
Video: EGA/VGA
Halt On: All Errors
Esc: Quit
F1: Help
Set up of HDD operating mode
l
<NORMAL, LBA, LARGE>
Since old operating systems were only able to support HDD whose
capacity was not bigger than 528MB, any hard disk with more than
528MB was unusable. AWARD BIOS features a solution to this
problem: you can, according to your operating system, choose three
operating modes: NORMAL, LBA or LARGE.
ä Normal mode:
Standard normal mode supports hard disks of 528MB or
less. This mode directly uses positions indicated by
Cylinders (CYLS), Heads, and Sectors to access data.
SIZE CYLS HEAD
0 0 0
0 0 0
0 0 0
0 0 0
¡ ô ¡ õ ¡ ÷ ¡ ö : Select Item
(Shift)F2: Change color

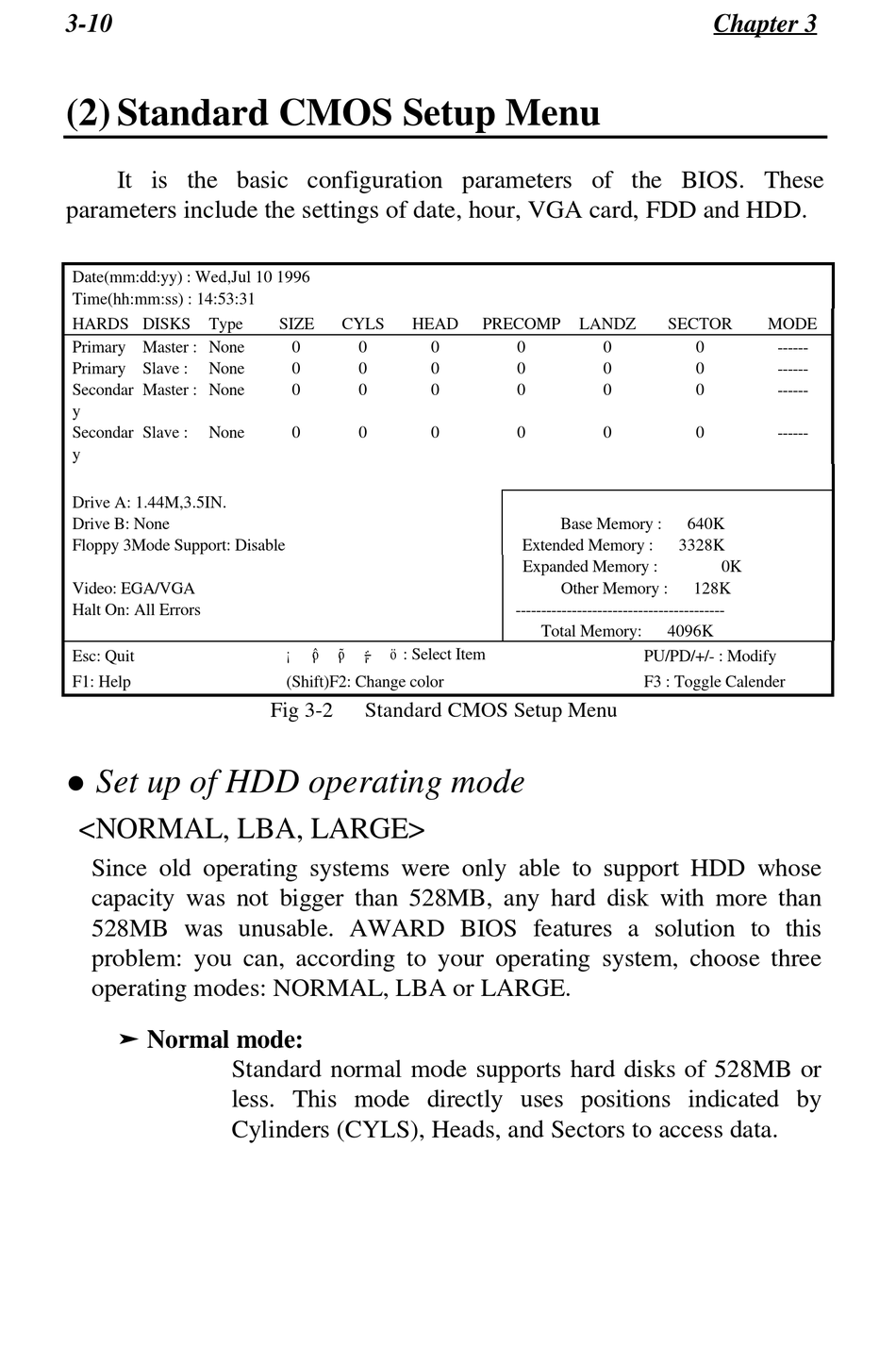

Fig 3-2 Standard CMOS Setup Menu
PRECOMP LANDZ
0 0
0 0
0 0
0 0
Base Memory :
Extended Memory :
Expanded Memory :
Other Memory :
-----------------------------------------
Total Memory:
PU/PD/+/- : Modify
F3 : Toggle Calender
Chapter 3
SECTOR MODE
0 ------
0 ------
0 ------
0 ------
640K
3328K
0K
128K
4096K
