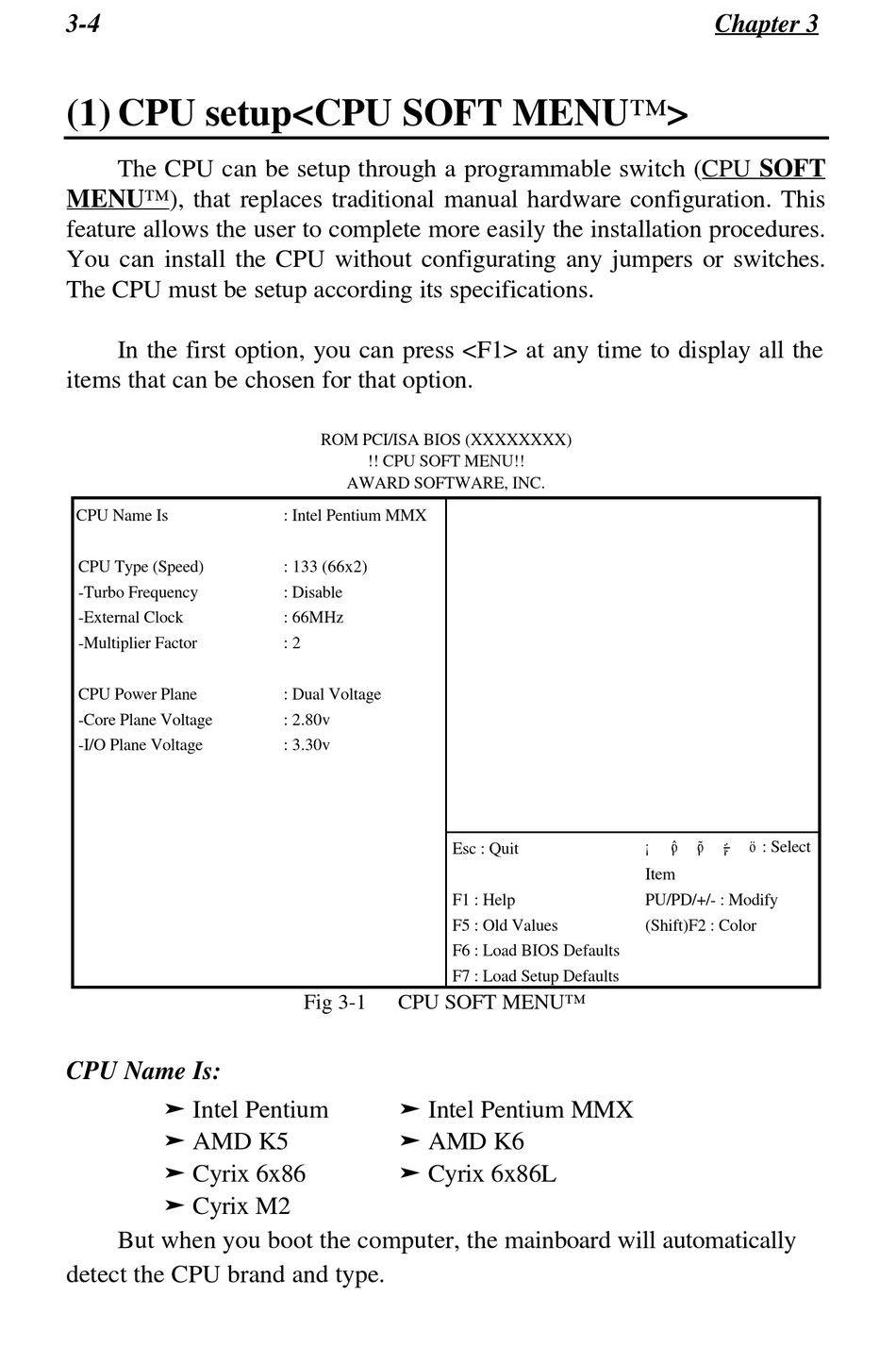

(1) CPU setup<CPU SOFT MENU™>
The CPU can be setup through a programmable switch (CPU SOFT
MENU™), that replaces traditional manual hardware configuration. This
feature allows the user to complete more easily the installation procedures.
You can install the CPU without configurating any jumpers or switches.
The CPU must be setup according its specifications.
In the first option, you can press <F1> at any time to display all the
items that can be chosen for that option.
CPU Name Is
CPU Type (Speed)
-Turbo Frequency
-External Clock
-Multiplier Factor
CPU Power Plane
-Core Plane Voltage
-I/O Plane Voltage
CPU Name Is:
ä Intel Pentium
ä AMD K5
ä Cyrix 6x86
ä Cyrix M2
But when you boot the computer, the mainboard will automatically
detect the CPU brand and type.
ROM PCI/ISA BIOS (XXXXXXXX)
!! CPU SOFT MENU!!
AWARD SOFTWARE, INC.
: Intel Pentium MMX
: 133 (66x2)
: Disable
: 66MHz
: 2
: Dual Voltage
: 2.80v
: 3.30v
Fig 3-1 CPU SOFT MENU™
ä Intel Pentium MMX
ä AMD K6
ä Cyrix 6x86L
Esc : Quit
F1 : Help
F5 : Old Values
F6 : Load BIOS Defaults
F7 : Load Setup Defaults
Chapter 3
¡ ô ¡ õ ¡ ÷ ¡ ö : Select
Item
PU/PD/+/- : Modify
(Shift)F2 : Color
