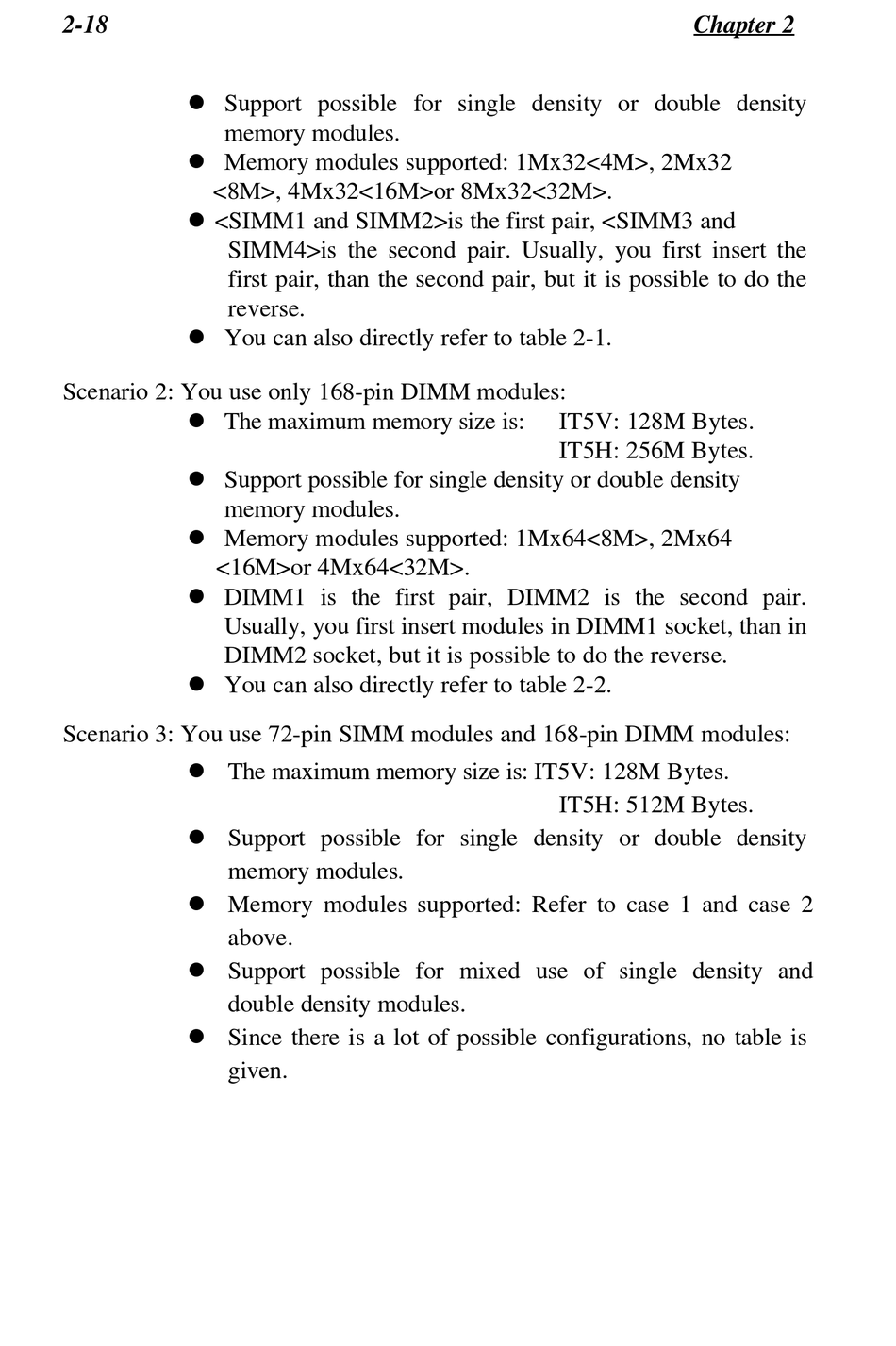

Abit IT5E Series User Manual page 30

2-18
l Support possible for single density or double density
memory modules.
l Memory modules supported: 1Mx32<4M>, 2Mx32
<8M>, 4Mx32<16M>or 8Mx32<32M>.
l <SIMM1 and SIMM2>is the first pair, <SIMM3 and
l You can also directly refer to table 2-1.
Scenario 2: You use only 168-pin DIMM modules:
l The maximum memory size is:
l Support possible for single density or double density
memory modules.
l Memory modules supported: 1Mx64<8M>, 2Mx64
<16M>or 4Mx64<32M>.
l DIMM1 is the first pair, DIMM2 is the second pair.
Usually, you first insert modules in DIMM1 socket, than in
DIMM2 socket, but it is possible to do the reverse.
l You can also directly refer to table 2-2.
Scenario 3: You use 72-pin SIMM modules and 168-pin DIMM modules:
l The maximum memory size is: IT5V: 128M Bytes.
l Support possible for single density or double density
l Memory modules supported: Refer to case 1 and case 2
l Support possible for mixed use of single density and
l Since there is a lot of possible configurations, no table is
SIMM4>is the second pair. Usually, you first insert the
first pair, than the second pair, but it is possible to do the
reverse.
memory modules.
above.
double density modules.
given.
Chapter 2
IT5V: 128M Bytes.
IT5H: 256M Bytes.
IT5H: 512M Bytes.
