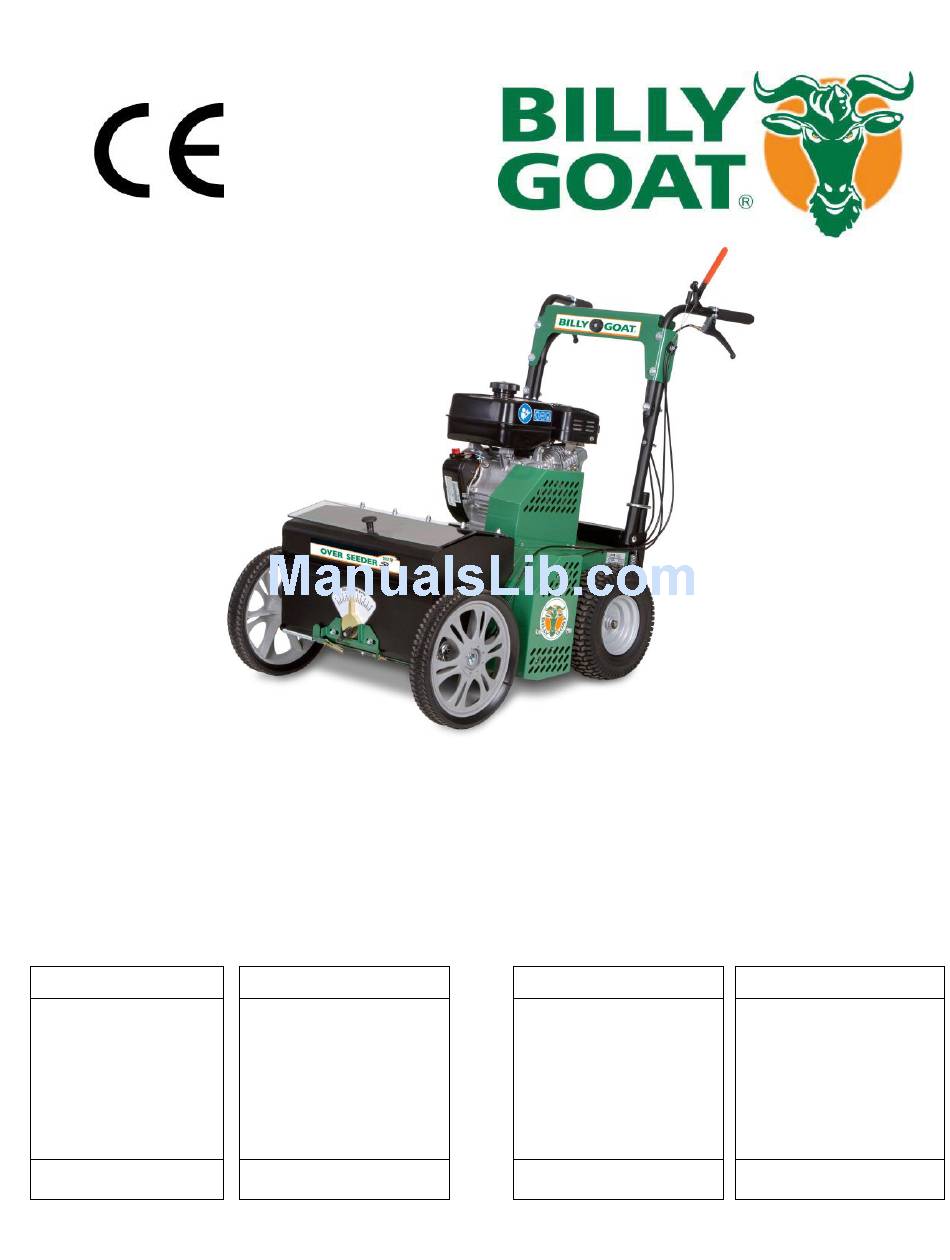

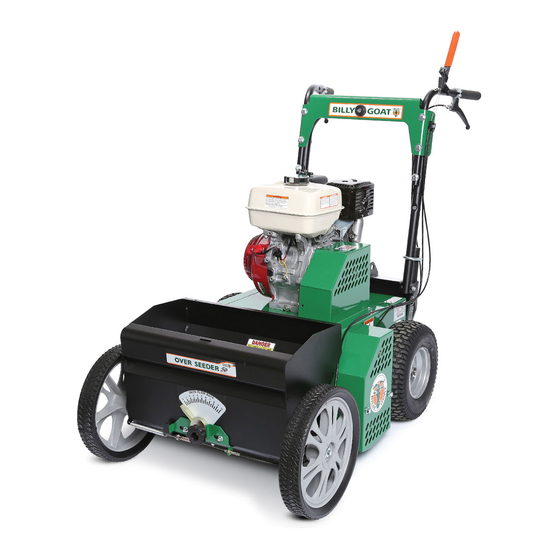

Unit shown with Seed Box Lid, sold separately
BILLY GOAT SELF PROPELLED OVERSEEDER
OS901SPS, OS901SPH
Owner's Manual
Accessories

Replacement Parts

Seed Box Lid Kit
Chariot Kit
Reel Kit
Blade Kit
A convenient way to
Allows the user to ride
Use to replace worn or
Use to replace worn or
enclose the seed box
behind the unit and
damaged reels
damaged blades on the
decrease fatigue from
reel
walking
P/N 351600
P/N 351601
P/N 351603
P/N 351610
Part No 351520
Form No F022513A
