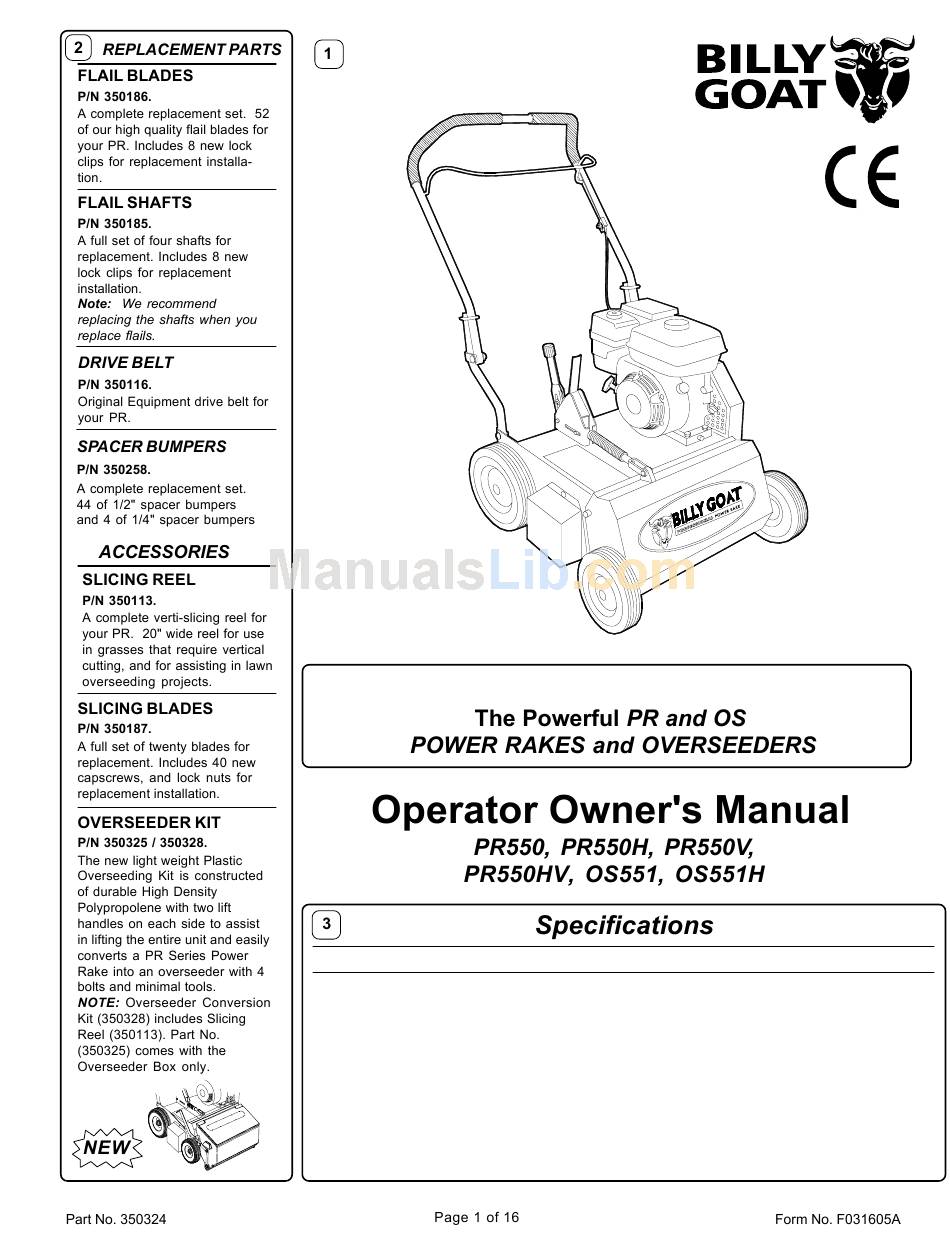

Billy Goat PR550, PR550H, PR550V, PR550HV, OS551, OS551H Operator Owner's Manual
The powerful pr and os power rakes and overseeders
Hide thumbs
Also See for PR550, PR550H, PR550V, PR550HV, OS551, OS551H:
- Operator owner's manual (16 pages) ,
- Owner's manual (16 pages) ,
- Owner's manual (20 pages)
Advertisement
Quick Links
Download this manual
See also:
Owner's Manual
Thank You for Selecting
Thank You for Selecting
Thank You for Selecting
Thank You for Selecting
Thank You for Selecting
PR550
ENGINE: H.P.
5.5 (4.1 kW)
ENGINE: TYPE
B&S OHV
ENGINE: FUEL CAP.
3.0 qt. (2.84 L)
ENGINE: OIL CAP.
0.66 qt. (0.62 L)
WEIGHT: UNIT
160# (72.5 kg)
WEIGHT: SHIPPING
183# (83.0 kg)
ENGINE WEIGHT:
36# (16.3 kg)
MAX. ENGINE OPERATING SLOPE
15°
PR550V
PR550H
PR550HV
5.5 (4.1 kW)
5.5 (4.1 kW)
5.5 (4.1 kW)
B&S OHV
HONDA OHV
HONDA OHV
3.0 qt. (2.84 L)
3.88 qt. (3.6 L)
3.88 qt. (3.6 L)
0.66 qt. (0.62 L)
0.69 qt. (0.65 L)
0.69 qt. (0.65 L)
163# (74.1 kg)
158# (71.8 kg)
161# (73.2 kg)
183# (83.0 kg)
178# (80.9 kg)
178# (80.9 kg)
36# (16.3 kg)
34# (15.4 kg)
34# (15.4 kg)
15°
20°
20°
OS551
OS551H
5.5 (4.1 kW)
5.5 (4.1 kW)
B&S OHV
HONDA OHV
3.0 qt. (2.84 L)
3.88 qt. (3.6 L)
0.66 qt. (0.62 L)
0.69 qt. (0.65 L)
173# (78.5 kg)
171# (77.6 kg)
208# (94.3 kg)
209# (94.8 kg)
36# (16.3 kg)
34# (15.4 kg)
15°
20°
Advertisement
Related Manuals for Billy Goat PR550, PR550H, PR550V, PR550HV, OS551, OS551H
Summary of Contents for Billy Goat PR550, PR550H, PR550V, PR550HV, OS551, OS551H
- Page 1 Thank You for Selecting Thank You for Selecting Thank You for Selecting Thank You for Selecting Thank You for Selecting PR550 PR550V ENGINE: H.P. 5.5 (4.1 kW) 5.5 (4.1 kW) ENGINE: TYPE B&S OHV B&S OHV ENGINE: FUEL CAP. 3.0 qt. (2.84 L) 3.0 qt.
-
Page 4: Oil Alert
CHOKE STOP CHOKE Read and follow Operating Instructions before running engine. Gasoline is flammable. Allow engine to cool at least 2 minutes before fueling. Engines emit carbon monoxide, DO NOT run in enclosed area. OIL ALERT... -
Page 5: Before Operating
RELEASE TO DISENGAGE CLUTCH PULL TO ENGAGE CLUTCH WARNING EXPLOSIVE FUEL STOP ENGINE AND ALLOW T O COOL BEFORE REFUELING. WARNING LAWN PREPARATION: - MOW LAWN TO LOWEST SETTING ON YOUR MOWER. - DO NOT WATER PRIOR TO SEEDING. - POWER RAKE TO DETHATCH LAWN AND REMOVE THATCH. - FERTILIZE LAWN WITH BROADCAST SPREADER. -
Page 9: Seed Application Chart
- PULL BACK ON THE KNOB THEN SLIDE THE BRACKET TO DESIRED STOP SETTING. EXAMPLE: STOP SETTING IS ON 4 - IF SLICING WITHOUT DROPPING SEEDS FOR LONG PERIOD THEN SET STOP THE STOP SETTING TO ZERO . SETTING KNOB BRACKET TIME. - Page 11 POWER RAKE SEEDER BOX KIT PART S LIST ITEM NO. PART NO. 350321 350306 350276 350320 350271 350272 350273 350322 350319 8171003 900321 350335 400217 8024040 8024021 350286 8160001 350332 8160002 350318 350280 350329 8197031 350331 8172007 8154007 8059136 PART S BAG SEEDER BOX KIT 8024021 8160001 8160002...
- Page 12 item SHAFT FLAIL BLADE BLADE FLAIL SPACER BUMPER 5/8" x 1/4" SPACER BUMPER 5/8" x 1/2" SHAFT WA FLAIL REEL CLIP LOCK 1/2" WASHER 1/2 SAE PARTS ite m Par t No. QTY LIST SHA FT FLA IL BLA DE 350141 CLIP LOCK 1/2"...
- Page 13 PARTS item LIST SPACER BUMPER 5/8" x 1/4" SPACER BUMPER 5/8" x 1/2" item item PR500 Part No. 350143 350144 PARTS LIST LOCK WASHER 5/16 TWISTED TOOTH SCREWCAP 5/16 - 24 x 1" HCS GR. 5 SHAFT SLICING WA BLADE SLICING REEL PLATE BLADE MTG.
- Page 15 PARTS item PR550 PR550H LIST Part No. Part No. Pulley 3" OD 350101-01 350101 Spacer Crank PR Honda 350339 Pulley 6.5" OD X ¾" 350102 350102 Wheel 8" Front PR 350103 350103 Wheel 10" Front PR 350104 350104 Height Adjust Assy 350107 350107 Reel Flail / Slicing Assy...
- Page 16 Unit(Weight) Engine Power lbs. Should a Billy Goat Machine fail due to a defect in material and/or workmanship, the owner should make a warranty claim as follows: -The Machine must be taken to the dealer from whom it was purchased or to an authorized Servicing Billy Goat Dealer.
