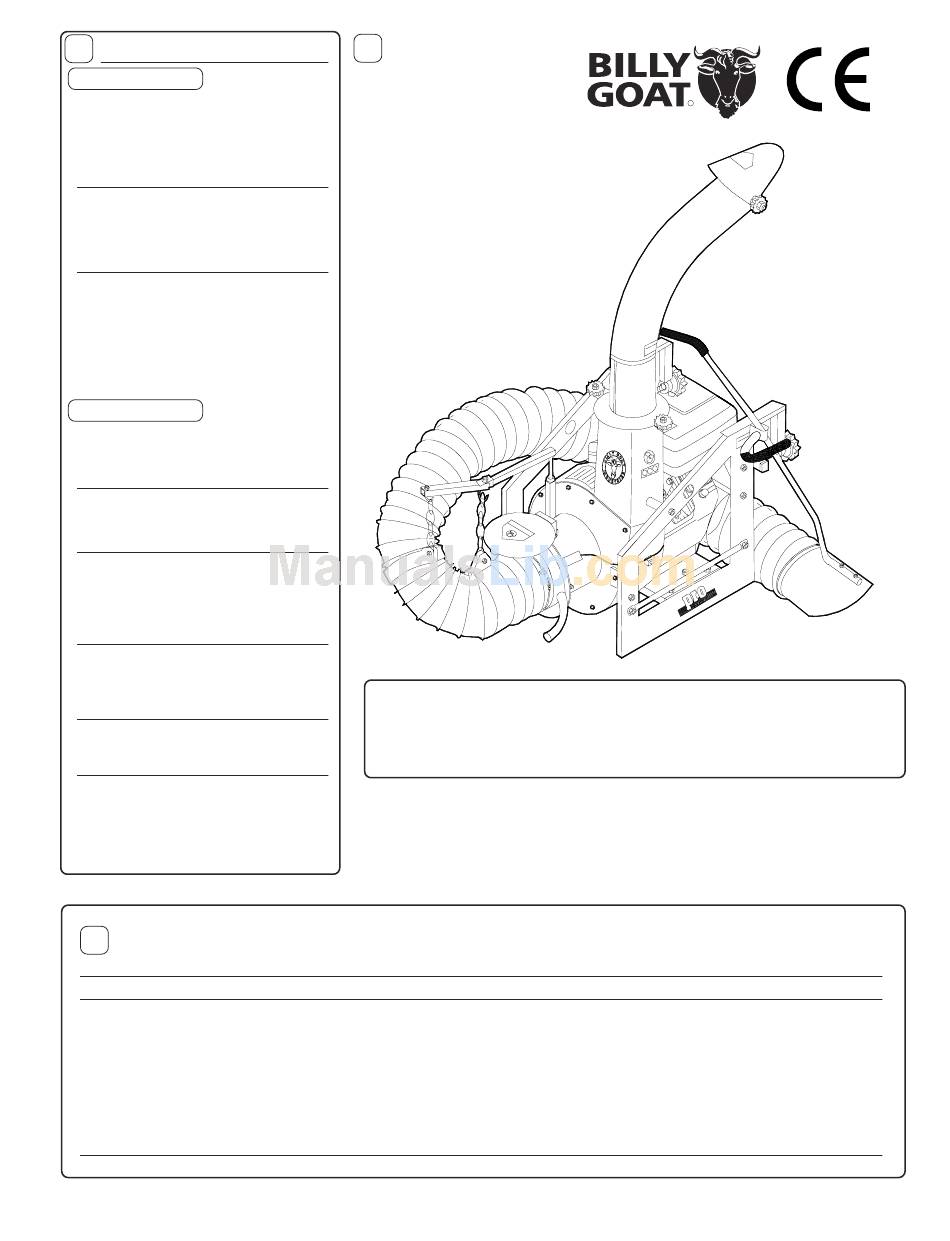

Billy Goat HTR1602V Operator Owner's Manual

2 OPTIONAL ACCESSORIES
INTAKE
HOSE KIT TR P/N 810509 Standard on TR
units. [8"(203mm) x 12.5' (3.8m)]
HOSE KIT HTR P/N 810896 Standard on
HTR units. [10"(254mm) x 12.5' (3.8m)]
HOSE COUPLER KIT 8" (203mm) TR
P/N 810525 Quick release coupler joins 2
hoses together to increase vacuuming
distance and allows hoses to be separated
for storage.
HOSE CONNECTOR KIT 8" (203mm) TR
P/N 810524
HOSE CONNECTOR KIT 10" (254mm) HTR
P/N 810776
For permanently connecting 2 hoses together
to increase vacuuming distance .
EXHAUST ALL MODELS
EXHAUST EXTENSION KIT P/N 810637
Increases exhaust height 11"(280mm) for
loading debris into elevated locations.
EXHAUST HOSE KIT P/N 811206
[6"(152mm) x 10' (3.0m)] Quick release
coupler and hose increases exhaust distance.
EXHAUST HOSE COUPLER KIT P/N 811207
[6"(152mm)] Quick release coupler joins 2
hoses together to increase vacuuming
distance and allows hoses to be separated for
storage.
EXHAUST HOSE CONNECTOR KIT
P/N 800336 [6"(152mm)] Permanently joins
2 exhaust hoses together to increase
exhaust distance.
PANEL FILTER KIT P/N 810584 Provides air
filter panel for use on truck and trailer
mounted debris enclosures.
PORTABLE DEBRIS BAG P/N 810660
1.3 yds. 3 (1.0m 3 ) or 28.4 bushels (1000L).
For portable use. Several bags can be filled
and left for later pickup.
3
ENGINE: H.P.
ENGINE: WEIGHT
ENGINE: TYPE
ENGINE: FUEL CAPACITY
ENGINE: OIL CAPACITY
UNIT & NOZZLE WEIGHT:
HOSE WEIGHT:
TOTAL SHIPING WEIGHT:
UNIT SIZE:
Part No. 811202
1
Operator Owner's Manual

Specifications

HTR1602V
16 H.P. TWIN OHV VANGUARD GUARD
79 lbs. (35.83 kg)
Briggs & Stratton 4 Cycle IC Twin
9 qt.(8.52 L),Float feed carb.& fuel pump
1.75 qt. (1.66 L), Oil pump w/filter
247 lb (112 kg)
27 lb (112.2 kg)
302 lb (136.9 kg)
OVERALL LENGTH: HTR 36.5"(0.93m) / TR 35"(0.89M) OVERALL WIDTH: 24.25" (0.62m)
T h a n k Yo u f o r S e l e c t i n g
The Powerful TRUCK LOADER VACUUM
HTR1602V, TR1304H, TR1104
TR1304H
13.0 HP (10.68 kW)
68.4 lbs. (31 kg)
HONDA 4 cycle
6.9 qt. (6.0 L)
1.16 qt. (1.1 L)
214.2 lb (97.2 kg)
14 lb (6 kg)
262 lb (118.8 kg)
Page 1 of 12
R
TR1104
11.0 HP (9.04 kW)
52.0 lbs. (23.6 kg)
B & S 4 cycle Intek I/C
4.0 qt. (3.8 L)
0.875 qt. (0.8 L)
198 lb (89.8 kg)
14 lb (6 kg)
246 lb (111.5 kg)
OVERALL HEIGHT: 66" (1.68m)
Form No. F072402A
