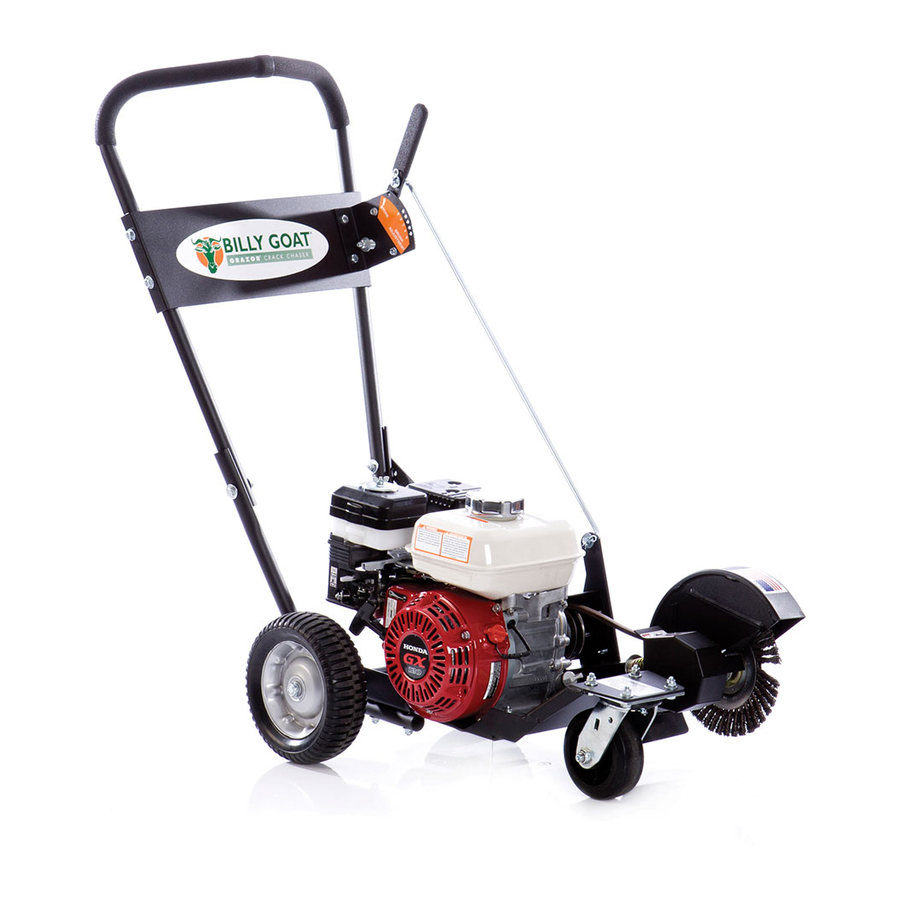

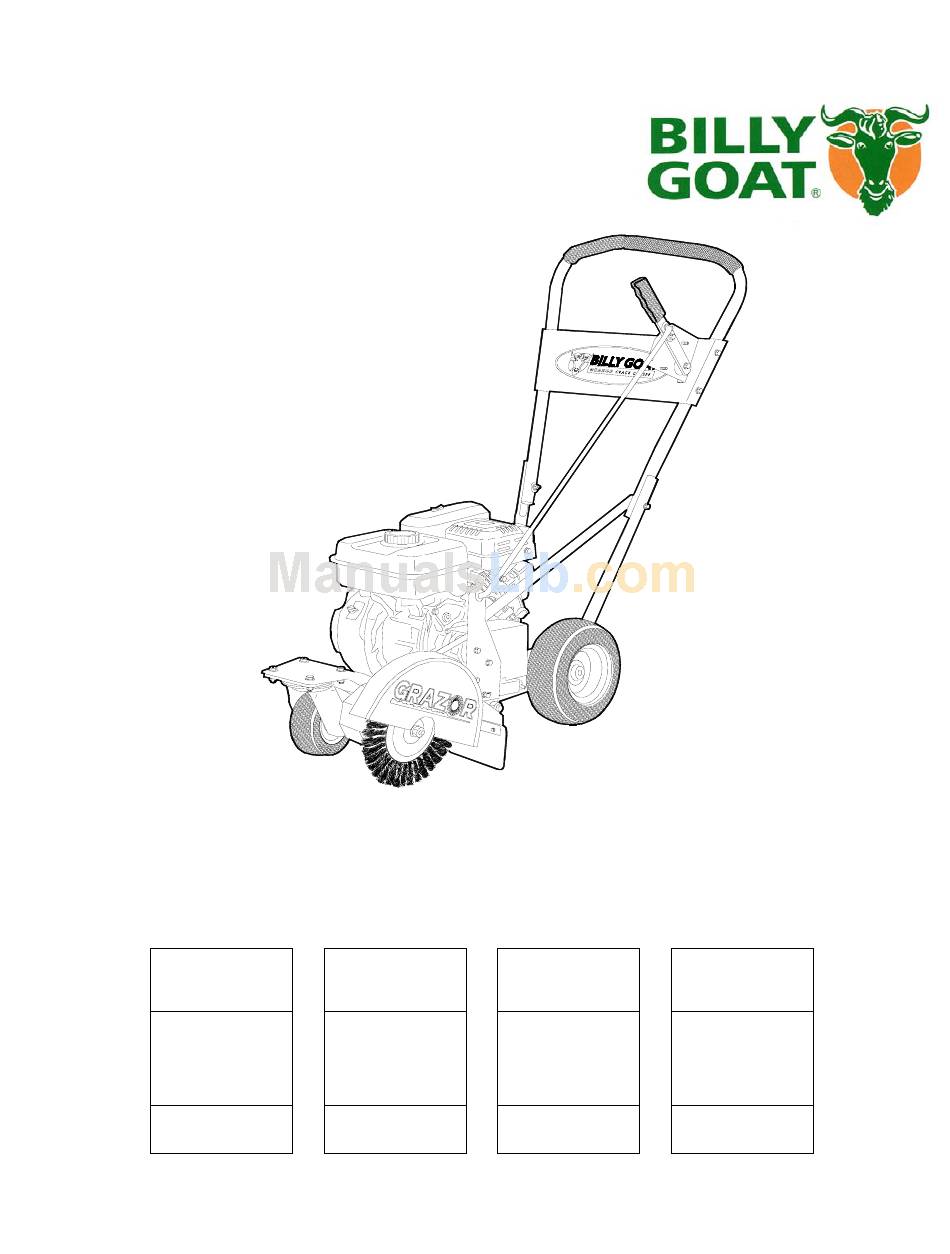

  • Page 1 BILLY GOAT GRAZER 8" HEAVY DUTY REPLACEMENT BRUSH OEM quality replacement wire brush. P/N 600172 Part No 610428 GZ Owner’s Manual Owner's Manual GZ401H & GZ451S Accessories DRIVE BELT ENGINE PULLEY Original Original Equipment Belt Equipment for replacement. Pulley for replacement.

  • Page 2: Table Of Contents

    ABOUT THIS MANUAL THANK YOU for purchasing a BILLY GOAT manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your machine in top running order. Read this manual carefully before assembling, operating, or servicing your equipment.

  • Page 3: Serial Plate Data And Specifications

    Engine: Model Engine: Type Engine: Fuel Capacity Engine: Oil Capacity Total Unit Weight: Max. operating slope Part No 610428 GZ Owner’s Manual GZ401H 4.0 (2.98 kW) GX120T1QA2 HONDA OHV 2.1 qt. (2.0 L) 0.63 qt. (0.6 L) 84# (38.1 Kg) GZ451S 4.5 (3.36 kW)

  • Page 4: General Safety

    This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. This symbol indicates important information that will prevent damage to your BILLY GOAT Grazor. This symbol indicates the engine oil level should be checked before operating this equipment.
  • Page 5 DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended. DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before refueling. DO NOT store gasoline near an open flame. DO NOT remove gas cap while engine is running.

  • Page 6: Instruction Labels

    11). INSTRUCTION LABELS The labels shown below were installed on your BILLY GOAT equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown.

  • Page 7: Packing Checklist & Assembly

    PACKING CHECKLIST Your Billy Goat is shipped from the factory in one carton, completely assembled except for the upper handle assembly, lower handles, handle brace, brush lift rod, and brush. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box.

  • Page 8: Operation

    GZ Owner’s Manual OPERATION Like all mechanical tools, reasonable care must be used when operating machine. Inspect machine work area and machine before operating. Make sure that all operators of this equipment are trained in general machine use and safety. PUT OIL IN ENGINE BEFORE STARTING Do not operate if excessive vibration occurs.

  • Page 9: Operation

    OPERATING HINTS: A side-to-side sweeping motion is the quickest way to remove surface vegetation from crevices, even if deeper crevice cleaning is desired. After removing surface vegetation, the crevice will be more visible for a deeper cleaning. Power Brush Safety Requirements Warning –...

  • Page 10: Maintenance

    4. Slide the brush (item 6) sideways off of the bearing shaft. 5. Install new brush over the shaft. NOTE: Be sure that to use the nylon bushing that comes with the Billy Goat replacement brush to insure proper fit between the brush and the shaft.

  • Page 11: Warranty Claim Procedure

    • The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT Dealer. •...

  • Page 12: Illustrated Parts & Parts Lists

    GZ Owner’s Manual PARTS DRAWING GZ Part No 610428 Form No F022508A...

  • Page 13: Parts List

    Key 3/16" X 1" Key Woodruff 3/16 X 3/4 Screwcap 5/16-18 X 2" Label GZ decal Label Danger Flying Debris Washer 1/4 Flat ZP Part No 610428 GZ Owner’s Manual GZ401H Part No. 360183 400268 400570 890359 600117 600172 610101...

  • Page 14: Maintenance Record

    GZ Owner’s Manual MAINTENANCE RECORD Date Service Performed Part No 610428 Form No F022508A...
  • Page 15 GZ Owner’s Manual BRUSH CUTTER FORCE BLOWER AERATOR If you liked this product please feel free to view our full line of quality lawn care, renovation, and debris removal products at www.billygoat.com DL VACUUM MULTI VACUUM POWER RAKE Part No 610428...
