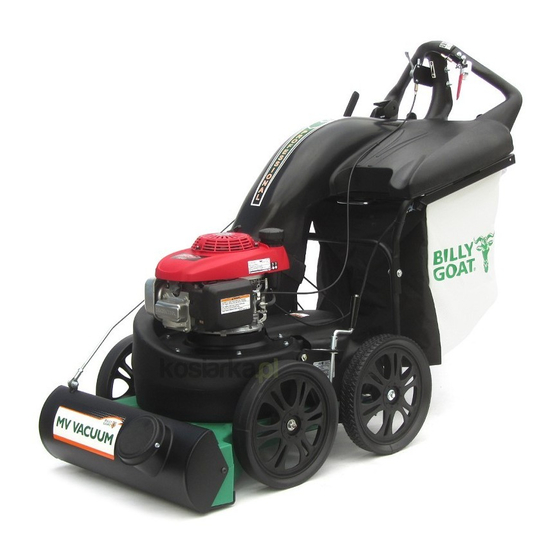

Billy Goat MV601SPE Owner's Manual

Self-propelled multi-vac

Hide thumbs Also See for MV601SPE:

Owner's manual (20 pages)

Operator's manual (18 pages)

Table Of Contents

Quick Links

MVSP Owner's Manual

Self-Propelled Multi-Vac Owner's Manual

CASTER KIT

Use on hard surface

For vacuuming hard

for maneuverability.

P/N 840129

IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

Part No 840245

MV650SPH, MV601SPE, and MV650SPHDS

Beginning Serial #: 020516001

Accessories

HOSE KIT

BAG LINER KIT

To collect leaves,

to reach areas.

thatch, and grass.

P/N 840116

P/N 840134

Original Instructions

FELT BAG KIT

Use on all dusty

conditions.

P/N 840194

LINER KIT

Interior housing liner

to decrease housing

wear.

P/N 840201

840245_B_LO

Table of Contents

Need help?

Do you have a question about the MV601SPE and is the answer not in the manual?

Questions and answers

Summary of Contents for Billy Goat MV601SPE

Page 1 MVSP Owner’s Manual Self-Propelled Multi-Vac Owner’s Manual MV650SPH, MV601SPE, and MV650SPHDS Beginning Serial #: 020516001 Accessories CASTER KIT HOSE KIT BAG LINER KIT FELT BAG KIT LINER KIT Use on hard surface For vacuuming hard To collect leaves, Use on all dusty Interior housing liner for maneuverability.
Page 2: Table Of Contents
MVSP Owner’s Manual CONTENTS SPECIFICATIONS AND SAFET INSTRUCTION LABELS ASSEMBLY INSTRUCTIONS OPERATION MAINTENANCE AND TROUBLESHOOTING 10-15 ILLUSTRATED PARTS LIST 16-24 DECLARATION OF CONFORMITY 25-27 Go to http://www.billygoat.com for French-Canadian translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits Part No 840245 840245_B_LO...
Page 3: Specifications And Safet
MVSP Owner’s Manual SPECIFICATIONS MV650SPH MV601SPE MV650SPHDS Engine Type Honda GSV190LN1L Briggs and Stratton Honda GSV190LN1L Professional Series 121S02-0110-F1 Horsepower 6.5 (4.85 kW) 5.0 (3.73 kW) 6.5 (4.85 kW) Fuel Capacity 1.6 qt (1.5 L) 1.2 qt. (1.14 L) 1.6 qt (1.5 L) 0.56 qt.
Page 4: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT MV Vacuum. If any labels are damaged or missing, replace them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the Illustrated Parts List.
Page 5: Assembly Instructions
MVSP Owner’s Manual ASSEMBLY INSTRUCTIONS ® Your BILLY GOAT MV Vacuum was shipped in one carton, completely assembled except for the Hood/Upper Handle Assembly. Mounting hardware for the Hood/Upper Handle Assembly is temporarily installed on the lower handle and the Housing Assembly.
Page 6 MVSP Owner’s Manual Fig. 3 Fig. 4 HERE HERE Fig. 5 Fig. 6 Fig. 7 Part No 840245 840245_B_LO...
Page 7: Operation
MVSP Owner’s Manual OPERATION This vacuum is designed for picking up trash, organic material and other similar debris. It should not be used for other purposes than what is intended. OPERATOR CONTROLS The operator’s position is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly, which allows sufficient leverage to steer the machine.
Page 8 MVSP Owner’s Manual VACUUM NOZZLE HEIGHT ADJUSTMENT For maximum pickup: Adjust nozzle height as close to debris as possible, but without blocking airflow into the nozzle. NOTE: Never bury nozzle into debris. The vacuum nozzle is raised and lowered by turning the crank handle clockwise and counter-clockwise (See Fig.
Page 9 MVSP Owner’s Manual DEBRIS BAG Debris bags are normal replaceable wear items. Bag liners are available for use in various conditions where debris will be vacuumed. (See Bag Liner Accessories shown on pg 1). MV650SPHDS Only – The dust sock provided will trap dust when vacuuming up dry debris only. The dust sock will need to be removed periodically and the dust will need to be dumped out as it will accumulate over time.
Page 10: Maintenance And Troubleshooting
MVSP Owner’s Manual MAINTENANCE PERIODIC MAINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Daily or Every 25 Every 50 Every 100- Every 5 Hours Hours 150 Hours Hours  Inspect for worn or damaged parts ...
Page 11 MVSP Owner’s Manual IMPELLER REMOVAL READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. 1. Wait for engine to cool and disconnect spark plug. 2. Drain fuel and oil from the engine. 3. Remove belt cover by removing 5 screws. 4.
Page 12 MVSP Owner’s Manual cable adjustment Loosen 4" Tighten from handle 1 1/8" Fig. 18 Fig. 19 DRIVE BELT REMOVAL AND REPLACEMENT READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Wait for engine to cool completely and disconnect spark plug. Remove guard fasteners and guard.
Page 13 MVSP Owner’s Manual Rotate the axle several times and listen for “popping” or “clacking”. This indicates too much tension on the chain or misalignment of the chain. Skip to Step 12 if no “popping” or “crackling” occurs. Improper Chain Tension At the point where the chain is tightest, check the chain for ¼”...
Page 14 MVSP Owner’s Manual TROUBLESHOOTING Problem Possible Cause Solution Will not vacuum or has poor Dirty or full debris bag or filter. Clean debris bag and filter. Shake bag vacuum performance clean or wash. Nozzle height set too high or too low. Adjust nozzle height (see page 8).
Page 15 MVSP Owner’s Manual MAINTENANCE RECORD Date Service Performed Part No 840245 840245_B_LO...
Page 16: Illustrated Parts List
MVSP Owner’s Manual MVSP NOZZLE PARTS DRAWING Nozzle Assembly Part No 840245 840245_B_LO...
Page 17 MVSP Owner’s Manual MVSP NOZZLE PARTS LIST PART MV650SPH MV601SPE MV650SPHDS ITEM NO. NUMBER DESCRIPTION QTY. QTY. QTY. 350127 YOKE 1/2 - 20 350128 PIN YOKE 1/2" 840243 SCREWCAP BUTTON HEAD 3/8"-16 X 1 1/4" PL 8172009 WASHER 3/8" SAE ZP...
Page 18 MVSP Owner’s Manual MVSP TRANS PARTS DRAWING Drive /Rear Axle Assembly Part No 840245 840245_B_LO...
Page 19 MVSP Owner’s Manual MVSP TRANS PARTS LIST PART MV650SPH MV601SPE MV650SPHDS ITEM NO. NUMBER DESCRIPTION QTY. QTY. QTY. 840110 BRACKET TRANS MOUNT WA MV VAC 350133 BEARING 3/4" W/PILLOW BLOCK 840009 DIFFERENTIAL 54 TOOTH D-CUT 840086 BRACKET TRANS ANTI ROTATION MV 840010 GUARD DRIVE SP VAC 840085 TRANSMISSION 3 SPD GENERAL TRANS.
Page 20 MVSP Owner’s Manual MVSP ENGINE PARTS DRAWING Engine Assembly Part No 840245 840245_A_LO...
Page 21 MVSP Owner’s Manual MVSP ENGINE PARTS LIST ITEM PART MV650SPH MV601SPE MV650SPHDS NUMBER DESCRIPTION QTY. QTY. QTY. 840069 ENGINE HONDA 6.5 VERTICAL GSV190 840277 ENGINE B&S PRO SERIES 875 ELEC START 840136 IMPELLER ASSEMBLY SP MV VAC 840107 PLATE TOP WA SP MV VAC...
Page 22 MVSP Owner’s Manual MVSP HOOD PARTS DRAWING Hood Assembly Part No 840245 840245_A_LO...
Page 23 MVSP Owner’s Manual MVSP HOOD PARTS LIST ITEM PART MV650SPH MV601SPE MV650SPHDS NUMBER DESCRIPTION QTY. QTY. QTY. 440013 CONTROL THROTTLE 840023 CONTROL SHIFT WESCON MV VAC 840265 HANDLE MV CLUTCH CABLE 500176 LABEL CLUTCH DRIVE 840141 HOOD ASSY W/ LABEL MV VAC...
Page 24 MVSP Owner’s Manual ITEM PART MV650SPH MV601SPE MV650SPHDS NUMBER DESCRIPTION QTY. QTY. QTY. 840040 ROD BAG WA MV VAC 840139 LATCH RUBBER ASSEMBLY MV VAC 840016 LATCH RUBBER MV VAC 360203 PAL NUT 0.312 840189 BAG DEBRIS MV VAC 840260...
Page 25: Declaration Of Conformity
MVSP Owner’s Manual Руccкий English Suomi Latviešu Slovenščina български език Français Nederlands Čeština Ελληνικά Slovák Norsk Svenska Dansk Hrvatski Polski Türkçe Deutsch Magyar Português Română Español Italiano Lietuvių eesti keel Δήλωση συμμόρφωσης ΕΚ Deklaracja zgodności UE EC Declaration of Conformity Декларация...
Page 26 4.85 kW 14 m/s 81.2 kg 105.5 dB(A) 104.5 dB(A) 89 dB(A) 3.73 kW 12.6 m/s 92.5 kg MV601SPE 104 dB(A) 103 dB(A) 83 dB(A) 4.85 kW 14 m/s 81.2 kg MV650SPHDS (1) ISO 5395-1:2013 F.7 (EN 4871:1996) (2) ISO 5395-1:2013 G.8 (EN 12096:1997, D.1)
Page 27 MVSP Owner’s Manual Τόπος κατασκευής / Υπεύθυνος τήρησης αρχείων Miejsce produkcji / Osoba odpowiedzialna za Manufacturing Place / Keeper of Documentation Място на производство / Архивар τεκμηρίωσης przechowywanie dokumentów Místo výroby / Držitel dokumentace Gyártás helye / A dokumentáció őrzője Local de Fabrico / Responsável pela Documentação Mjesto proizvodnje / Čuvar dokumentacije Fremstillingssted / Indehaver af dokumentationen...
