4.2 Camera Connection

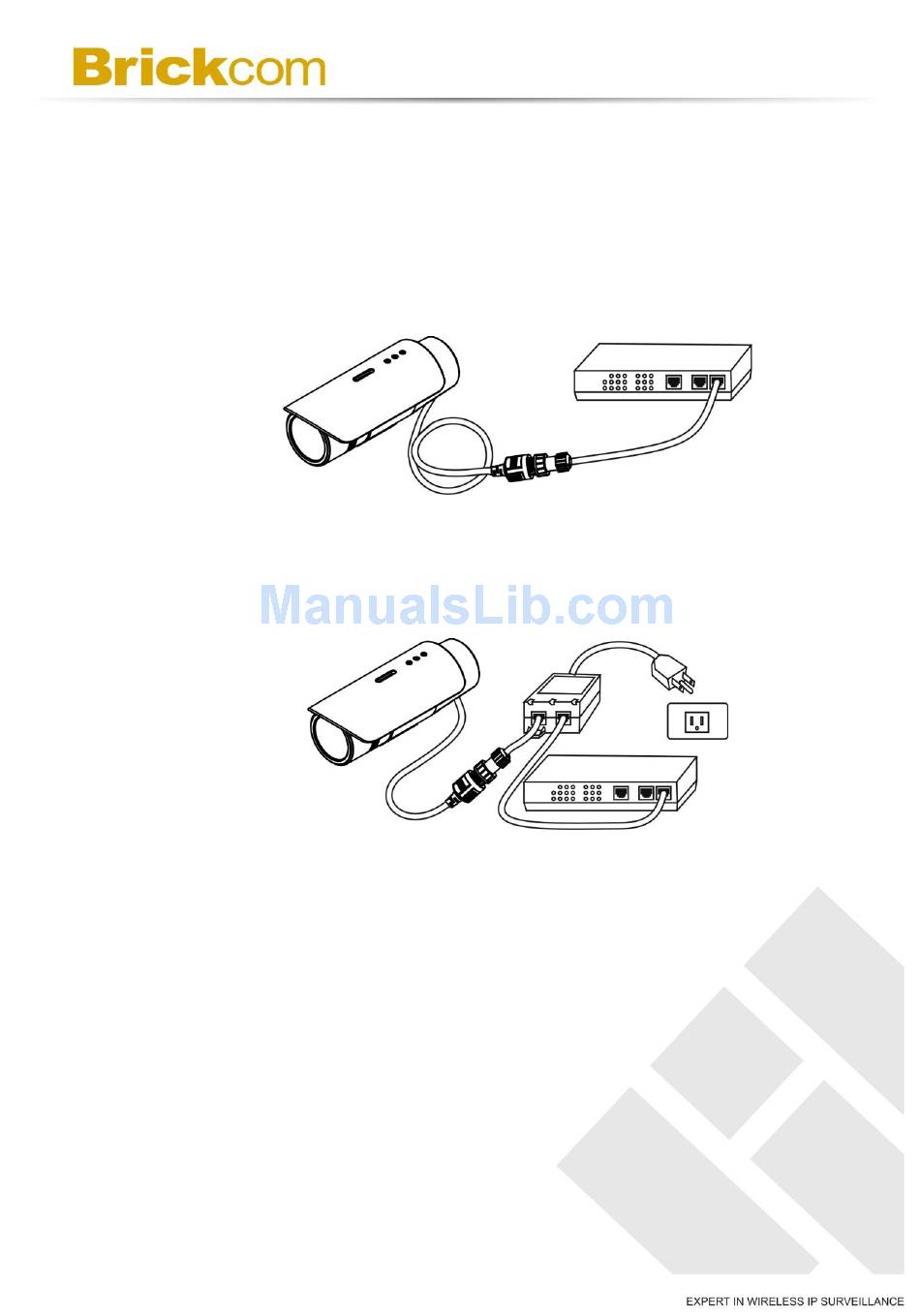

The Outdoor Bullet Series is PoE compliant, so there are two options for
connecting the camera to a power and Ethernet source. The camera can
either be connected to a PoE-enabled switch or a non-PoE switch.
a. If using a PoE-enabled switch:
i. Use a single Ethernet cable to connect the camera to the PoE-enabled
switch.
b. If using a non-PoE switch:
i. Use a standard RJ-45 cable to connect the camera to a PoE Injector.
ii. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE
switch.
iii. Use a standard power cable to connect the PoE Injector to a power
outlet.
