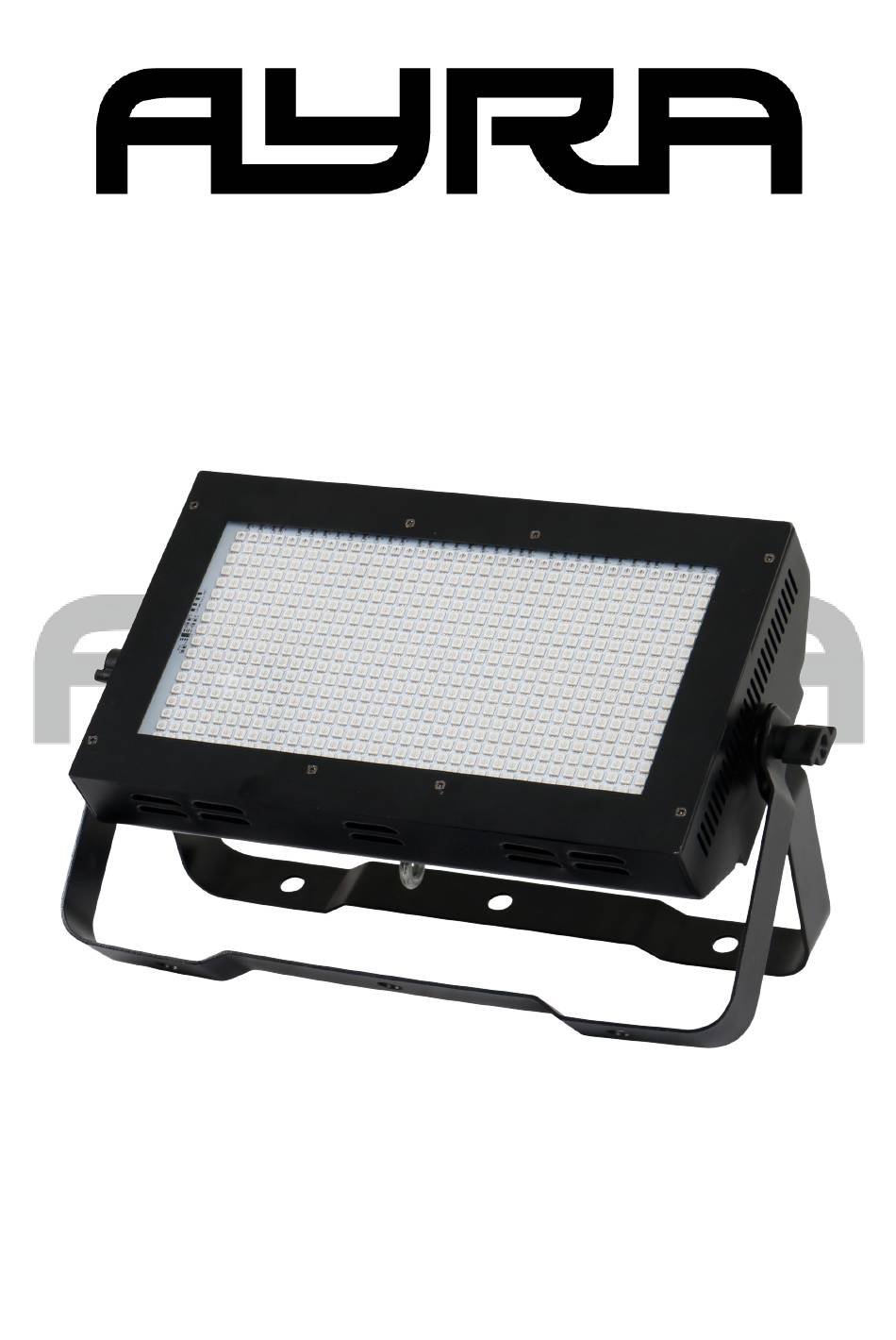

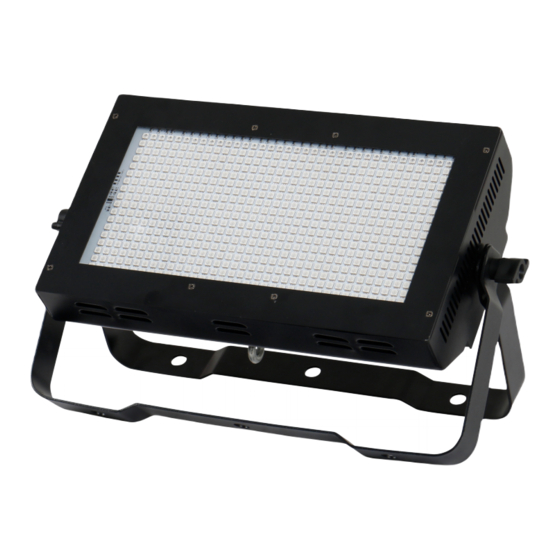

- Page 1 Armageddon 648 RGB LED LED Strobe / Wash Effect User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
- Page 2 'Box Contents' are included in the package. In the event that the Armageddon 648 RGB LED does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your retailer for assistance.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Suitable for indoor use only: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Operation Guidelines for this Device Light Output Double suspension bracket / floor stand Safety-eyelet for safety cable Microphone LED Display with Menu buttons DMX input via 3-pin XLR DMX output via 3-pin XLR IEC C14 power input with fuse compartment The information in this user manual is subject to change at any time without notice.
- Page 7 The device cannot be operated while it is still starting up and displays the ‘AYRA’ logo. Once the device has fully started up, it will automatically jump to the last mode and setting. Operation modes and other settings shown on the display can now be adjusted or changed via the menu buttons.
- Page 8 An explanation of all available functions can be found below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond to DMX channel 1. Set it to channel 003, then the device will respond to DMX channel 3 and so on.
- Page 9 between use. The HOUR function shows exactly how long the device has been in use. This amount accumulates over time as long as the device is being used and cannot be manipulated by the user. VER: Here, the current firmware version is displayed. This cannot be changed or adjusted. The information in this user manual is subject to change at any time without notice.
- Page 10 Operation Modes Please find a clear explanation of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
- Page 11 132-139 LED ON 140-181 Fast on, slow off, slow to fast 182-189 LED ON 190-231 Slow on, fast off, slow to fast 232-239 LED ON 240-247 Random Strobe 248-255 LED ON Red 0-100% 000-255 Green 0-100% 000-255 Blue 0-100% 000-255 7CH mode: Function Value...
-
Page 12: Installation And Connection Instructions
When you want to place the Armageddon 648 RGB LED in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The Armageddon 648 RGB LED is not fitted with rubber feet to grip the ground and stabilise the device. - Page 13 Cleaning and maintenance Clean the exterior of this device on a monthly basis with a dry, or slightly damp microfibre cloth. Ensure that the device is unplugged before cleaning it. Check that all screws are intact and secured and tighten or replace them where needed. Check all metal parts of the device for any signs of corrosion.
- Page 14 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 15 Signal loss or interference in the Close the DMX circuit with a DMX circuit terminator or connect a booster after maximum 32 fixtures. The device is not reacting properly Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode...
-
Page 16: Technical Specifications
Technical Specifications - Powerful LED flood projector with RGB LEDs - 648x 5050 SMD RGB LEDs - For use as a floodlight, blinder, uplighter and more! - Fully metal housing - Temperature controlled ventilation - Slim-line, compact design - Diverse operation modes - Auto Fade / Auto Jump with adjustable speed and optional strobe effect - Colour Macros with optional Strobe effect - Music / Sound-controlled mode with adjustable sensitivity...
