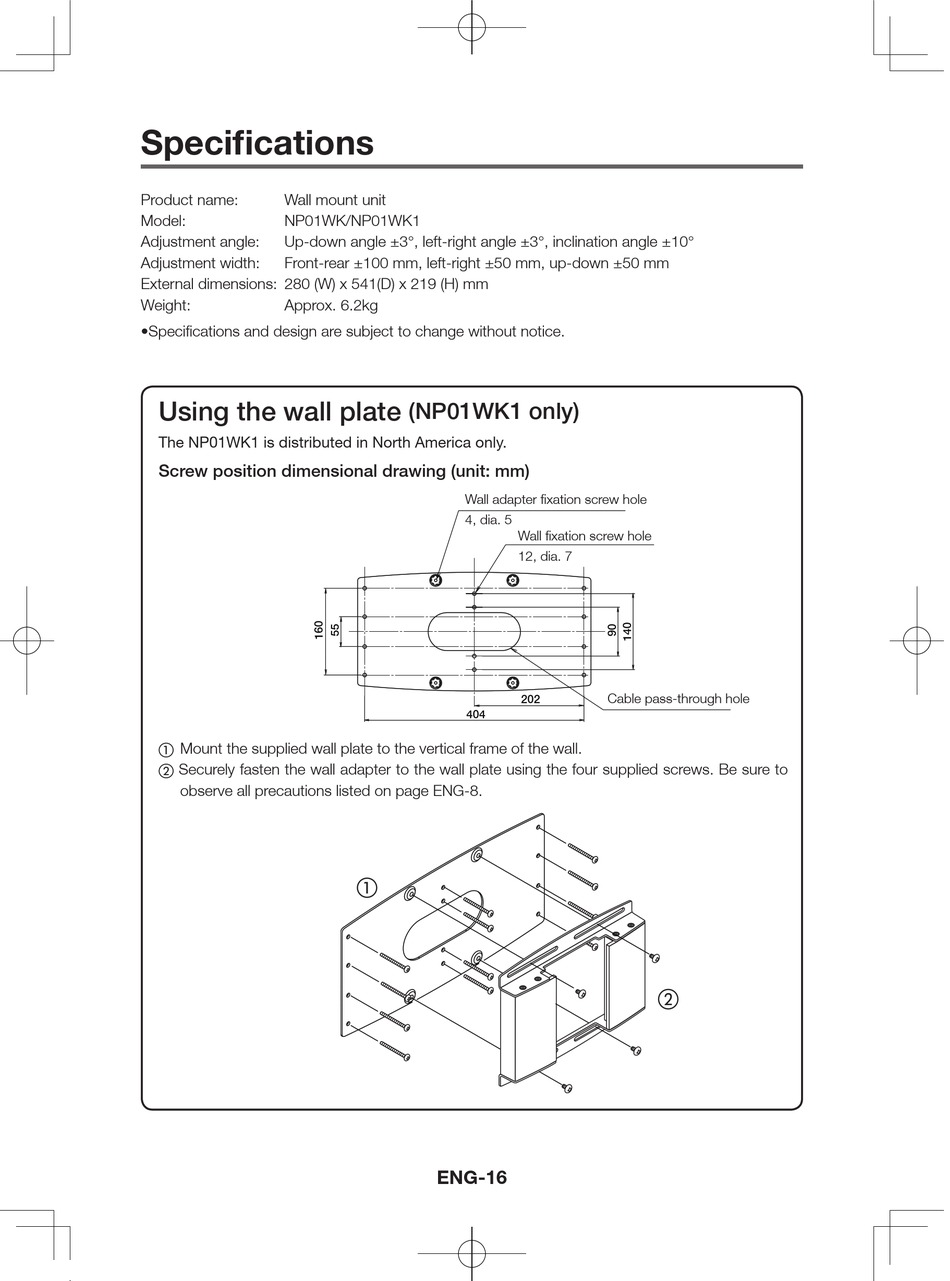

Specifications

Product name:

Wall mount unit

Model:

NP01WK/NP01WK1

Adjustment angle:

Up-down angle ±3°, left-right angle ±3°, inclination angle ±10°

Adjustment width:

Front-rear ±100 mm, left-right ±50 mm, up-down ±50 mm

External dimensions: 280 (W) x 541(D) x 219 (H) mm

Weight:

Approx. 6.2kg

•Specifications and design are subject to change without notice.

The NP01WK1 is distributed in North America only.

Screw position dimensional drawing (unit: mm)

a Mount the supplied wall plate to the vertical frame of the wall.

b Securely fasten the wall adapter to the wall plate using the four supplied screws. Be sure to

observe all precautions listed on page ENG-8.

(NP01WK1 only)

Wall adapter fixation screw hole

4, dia. 5

Wall fixation screw hole

12, dia. 7

202

404

ENG-16

Cable pass-through hole
