Transition Networks E-MCR-02 User Manual

MEDIA CONVERTER RACK

TECHNICAL SPECIFICATIONS

Case dimensions
17.0" x 13.0" x 4.5"
Power Requirements NOTE: Ensure that available power circuits are not overloaded.
Ensure that rack mounting equipment is reliably grounded.
Input Voltage
85-264 VAC
Input Frequency
47-63 Hz
Output Voltage
9 VDC
Output Current
600mA per port maximum
Power Cord
TN P/N
3344
3344
3347
3348
3349
Environment
Temperature:
Humidity
Altitude
Warranty
Lifetime
Compliance Information
Safety: UL 1950 and EN60950
C-UL Listed (Canada)
Emissions: FCC Class A, CISPR 22 Class A, EN55022
Immunity: EN50082, IEC 801-2,3,4
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference, in which case the user will be required to
correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the
radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1999 TRANSITION Networks. All rights reserved. No part of this work may be reproduced or used in
any form or by any means – graphic, electronic, or mechanical – without written permission from
TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(432mm x 330mm x 114mm)
Requirement Location
120 volts, 60 Hz USA/Canada
100 volts, 50-60 Hz Japan
230 volts, 50 Hz Europe
240 volts, 50 Hz Australia
240 volts, 50 Hz United Kingdom
0-50°C (32° to 122° F )
10-90%, non condensing
0-10,000 feet
33107.B

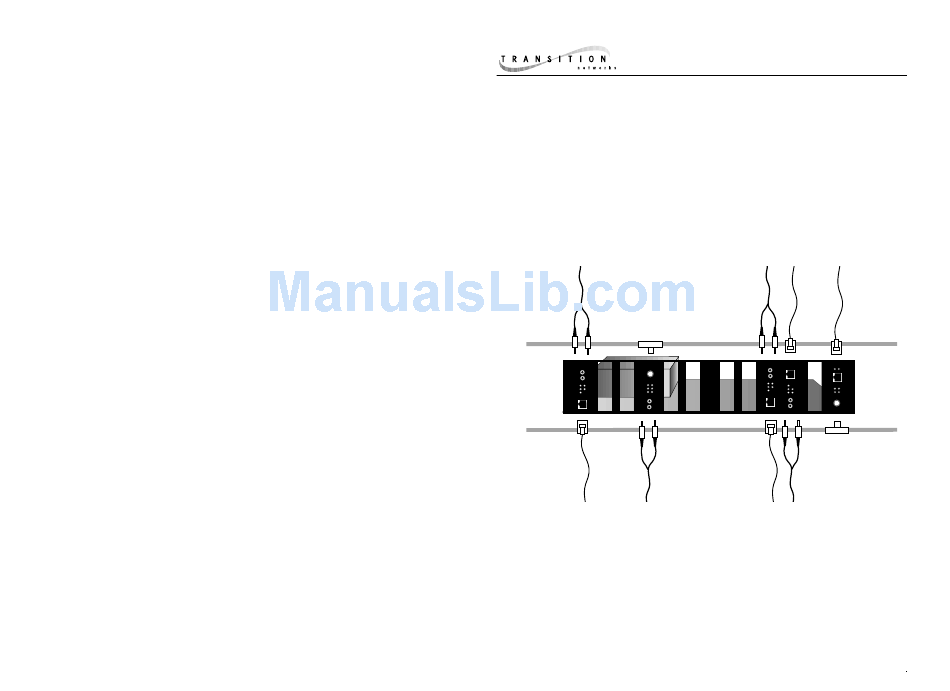

Media Converter Rack
E-MCR-02
USER'S GUIDE
The Transition Networks Media Converter Rack provides space and power
in a rack-mountable chassis for twelve (12) separate and independent
Transition Networks media converters, each with power requirements
ranging from 9VDC to 12VDC.
The Media Converter Rack is designed ONLY for installation of media
converters designed and built by Transition Networks that have both
media input connector and media output connector located on the same
side of the media converter, opposite the power input connector.
The Transition Networks Media Converter Rack is shipped with attached
feet for installation on any well-ventilated table-top or shelf. Optionally,
the Media Converter Rack can be installed in a standard 19-inch rack,
using installation brackets and attachment screws provided.
Minneapolis, MN 55344 USA
