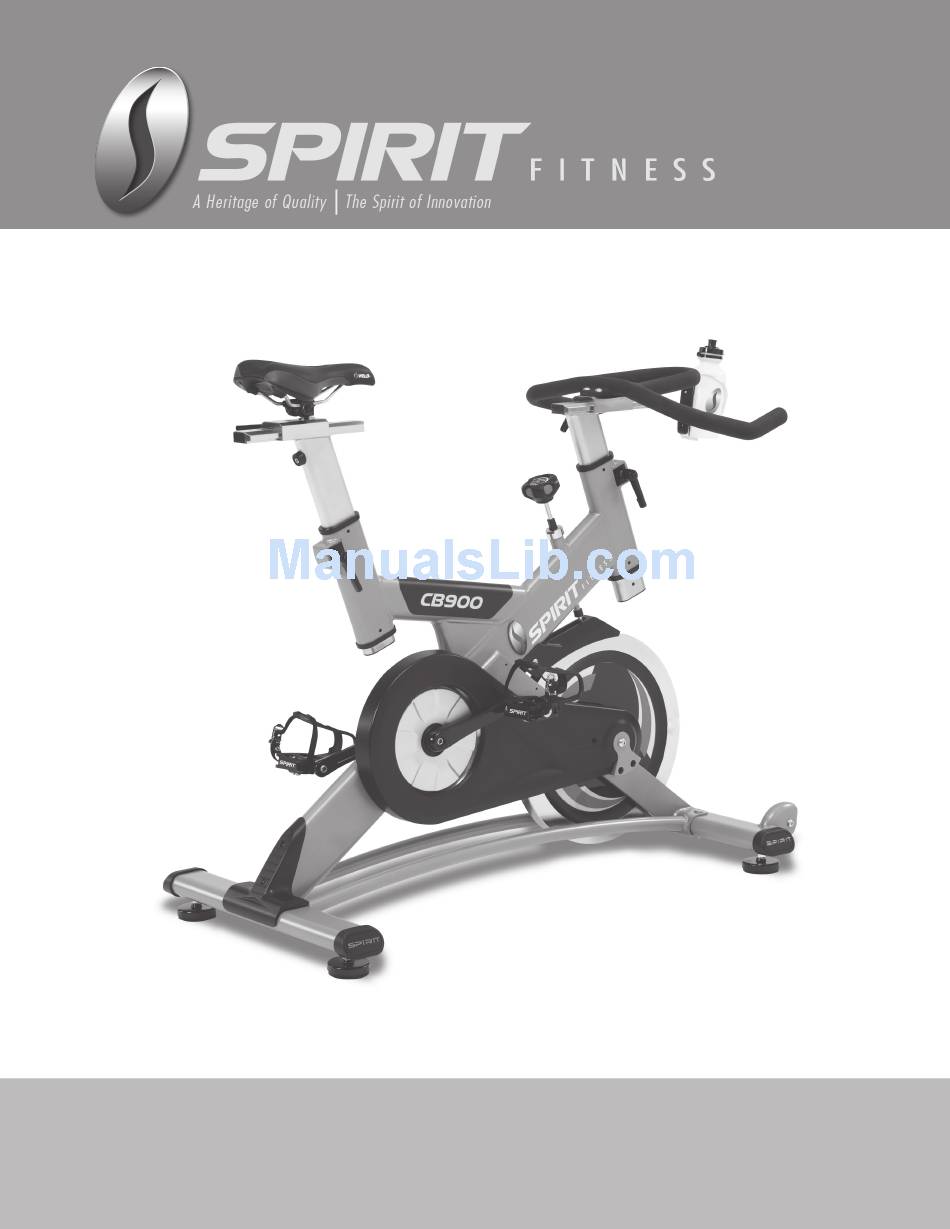

- Page 1 CB900 Indoor Cycle OWNER’S MANUAL Please carefully read this entire manual before operating your new indoor cycle...
- Page 2 CB900 Indoor Cycle...
- Page 3 Product Registration Important Safety Instructions Important Operation Instructions CB900 Assembly Instructions Indoor Cycle Setup Dual Function Pedals Basic Operation General Maintenance Manufacturer’s Limited Warranty...
- Page 5 Congratulations on your new indoor cycle and welcome to the Spirit Fitness family! Thank you for your purchase of this quality group indoor cycle from Spirit Fitness. Your new indoor cycle was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
- Page 6 Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CB900 Indoor Cycle...
- Page 7 ƒ NEVER expose the bike to rain or moisture. This product is NOT designed for use outdoors, near a pool or spa, or in any other high humidity environment. Maximum environmental ratings are 40-120 degrees Fahrenheit, 95% humidity non-condensing (no water droplets forming on surfaces). CB900 Indoor Cycle...
-
Page 8: Pre-Assembly
The numbers in the instructions that are in parenthesis (#) are the item number from the assembly drawing for reference. Assembly T ools #87. Combination M5 Allen Wrench #86. 14/15mm Wrench & Phillips Head Screwdriver #85. 6mm Allen Wrench CB900 Indoor Cycle... - Page 9 Attach the Rear Cover (37) to the frame with two screws (57) using the allen wrench/screw driver (87). HARDWARE #51. 3/8” x 2-1/4” #74. 3/8” #69. 3/8” #57. M5 x 10mm Button Head Socket Bolt Flat Washer Nylon Nut Phillips Head Screw (2 pcs) (4 pcs) (2 pcs) (2 pcs) CB900 Indoor Cycle...
-
Page 10: Step 2: Front Stabilizer
(74) and two nuts (69) using the wrenches (85 & 86). HARDWARE #51. 3/8” x 2-1/4” #74. 3/8” #69. 3/8” Button Head Socket Bolt Flat Washer Nylon Nut (2 pcs) (4 pcs) (2 pcs) CB900 Indoor Cycle... - Page 11 #57. M5 x 10mm #89. 14mm x 20mm x 2T #53. M5 x 15mm #73. 5/16” #76. 5/16” Phillips Head Screw Flat Washer Bolt Flat Washer Split Washer (2 pcs) (2 pcs) (4 pcs) (4 pcs) (4 Pcs) CB900 Indoor Cycle...
-
Page 12: Adjustment Levers
The pitch of the saddle can be adjusted to accommodate all users. Loosen the horizontal bolt under the seat to adjust the pitch, then retighten. T ransportation The indoor cycle is equipped with two transport wheels, which are engaged when the rear of the CB900 indoor cycle is lifted. CB900 Indoor Cycle... -
Page 13: Adjustment Of Seat Position
Loosen the quick release under the handlebar and slide the handlebar forward or backward as desired. A suitable forward/aft position should allow the rider to comfortably grasp the handlebar with a slight bend at the elbow. Tighten the quick release to secure the handlebar assembly. CB900 Indoor Cycle... -
Page 14: Adjusting The Pedal Straps
Use an Allen key Front Binding to turn tension adjusting screws, clockwise to increase binding tension, counterclockwise to decrease binding tension. Rear Binding CB900 Indoor Cycle... - Page 15 2. To apply the brake, press down on the tension knob. 3. Before dismounting, apply the brake to stop flywheel, or increase resistance and let flywheel come to a stop. CB900 Indoor Cycle...
-
Page 16: Maintenance Schedule
1. Do not service internal parts of pedals. If they are found to be worn internally, we recommend replacing the pedal. 2. Use of lubricants or cleaning solutions other than those so specified will result in diminished performance and a shorter life span for that part. CB900 Indoor Cycle... - Page 17 Indoor Cycle Warranty - Effective January 1, 2012 Spirit Fitness warrants all its Indoor Cycle parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’...
- Page 18 3000 Nestle Road Jonesboro, AR 72401 - Phone: 800-258-4555 - Fax: 870-935- 7 611 © 2014 All Rights Reserved. www.spiritfitness.com CB900 Owner’s Manual Rev . 2...
