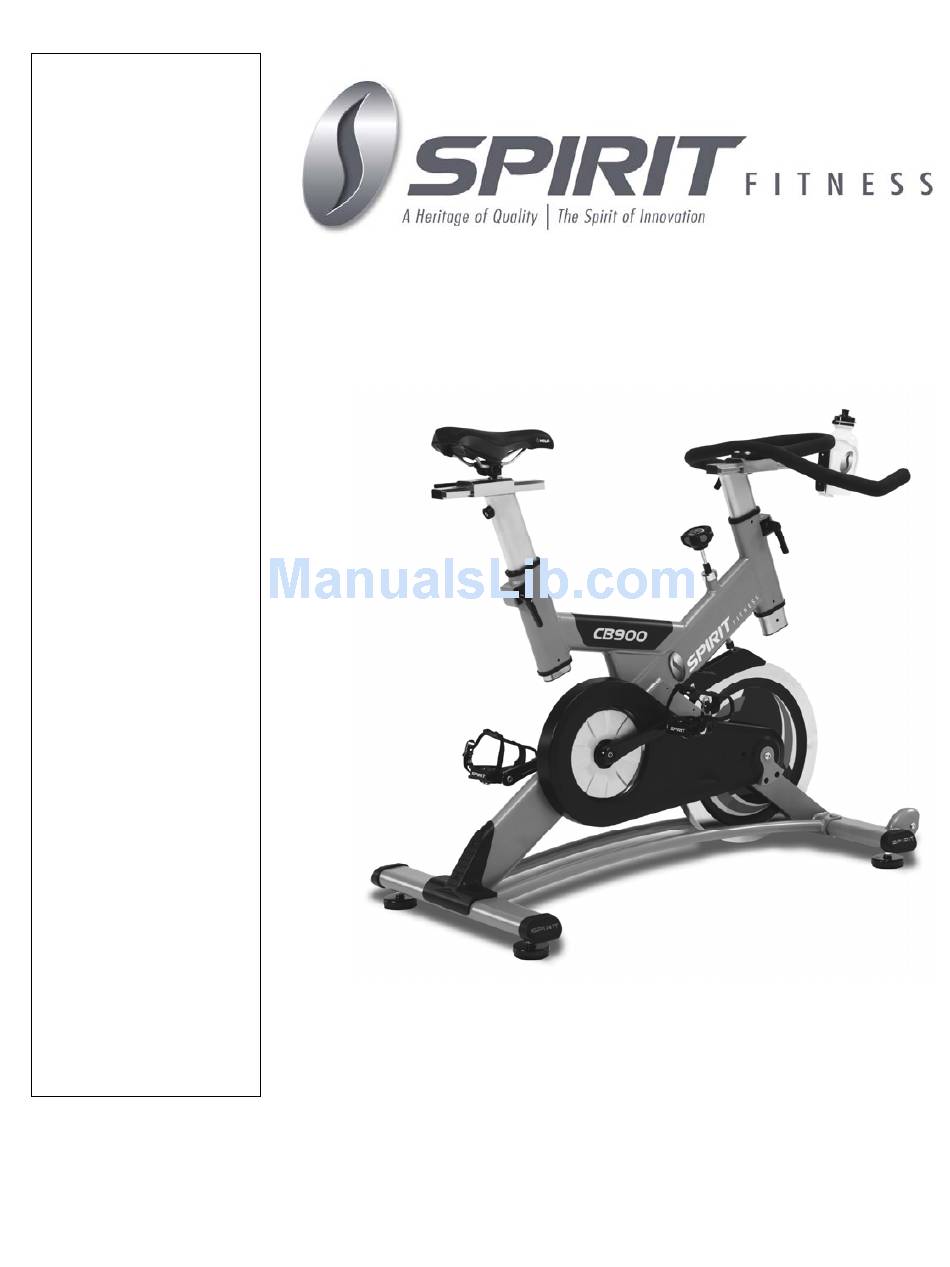

- Page 1 Owner’s Manual Model No. 1611683900 - Assembly - Operation - Adjustments - Parts - Warranty CAUTION: Read and understand this manual before operating unit Retain For Future Reference...
-
Page 2: Table Of Contents
General Maintenance …………………………………………………………..10 List and Diagram……………………………………………………………..11 Manufacturer’s Limited Warranty …………………………………………… 15 ATTENTION This fitness bike is intended for residential use only and is warranted for this application. Any other application voids this warranty in its entirety. CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... -
Page 3: Product Registration
RECORD YOUR SERIAL NUMBER Please record the Serial Number of this fitness product in the space provided below. Serial Number_______________________________________ REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to Dyaco Canada Inc CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... -
Page 4: Important Safety Instructions
These distractions may cause you to lose balance which may result in serious injury. Do not use excessive pressure on console control keys. They are precision set to function properly with little finger pressure. CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... -
Page 5: Assembly Instructions
Assembly Instructions 1611683900 Pre-Assembly 1. Using a razor knife (Box Cutter), cut the banding straps that wrap around the carton. Reach under the bottom edge of the carton and pull it away from the cardboard underneath, separating the staples that join the two together. Lift the box over the unit and unpack. - Page 6 Combination M5 Allen Wrench & Phillips Head Screw Driver (87). HARDWARE #74. 3/8" × 19 × 1.5T #69. 3/8" Nyloc Nut #57. M5 × 10m/m Phillips #51. 3/8" × 2-1/4" Flat Washer (4pcs) (2pcs) Head Screw (2pcs) Button Head Socket Bolt CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013 (2pcs)
-
Page 7: Front Stabilizer Assembly
(69) by using 6m/m L Allen Wrench (85) and 14.15m/m Wrench (86). HARDWARE #51. 3/8" × 2-1/4" #74. 3/8" × 19 × 1.5T #69. 3/8" Nyloc Nut Button Head Socket Bolt Flat Washer (4pcs) (2pcs) (2pcs) CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... - Page 8 #76. 5/16'' × 1.5T #73. 5/16" × 16 × 1.5T #57. M5 × 10m/m #89. Ø14 × 20 × 2.0T Button Head Socket Split Washer Flat Washer Phillips Head Screw Flat Washer Bolt (4pcs) (4pcs) (4pcs) (2pcs) (2pcs) CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013...
-
Page 9: Adjusting The Bike
1. Loosen the quick release under the handlebar and slide the handlebar forward or backward as desired. Suitable forward/aft position should allow the rider to comfortably grasp the handlebar with a slight bend at the elbow. 2. Tighten the quick release to secure the handlebar assembly. CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... -
Page 10: Adjusting The Pedals
The regular side can be used with or without toe clips. REGULAR SIDE VIEW Front binding Top clip strap threads thorugh here Adjust rear binding tension If attaching toe Here using a 3.0mm allen wrench Clip use these holes CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... -
Page 11: Basic Operations
1. Do not service internal parts of pedals. If they are found to be worn internally, we recommend replacing the pedal. 2. Use of lubricants or cleaning solutions other than those so specified will result in diminished performance and a shorter life span for that part. CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... -
Page 12: List And Diagram
Flywheel Axle Hold-Down, Left Side 168390031 6203_Bearing 168390032 Poly-V Drive Belt 168390033 Drive Pulley 168390034 Crank Arm (L) 168390035 Crank Arm (R) 168390036 Bottom Bracket Cartridge 168390036-1 M12_Crank Arm Retaining Bolt 36-1 168390037 Rear Step Cover CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... - Page 13 Right Crank Arm Cover 168390039 Tube Slide Bushing 168390040 Tube Slide Insert 168390041 Flywheel Fender 168390042 Belt Guard Cover 168390043 Oval End Cap with SPIRIT logo 168390045 V-Block, Right(6061-T6) 1683900446 V-Block, Left(6061-T6) 168390047 Water Bottle Cage 168390048 6004_Bearing 168390049 Flywheel Bearing, Needle 168390050 5/16"...
- Page 14 M6 × 15L_Button Head Socket Bolt 168390097 Aluminum Locking V-Blocks(6061-T6) 168390098 Aluminum Locking V-Blocks(6061-T6)(M8) 168390099 Ø8 × 16 × 1.0T_Flat Washer 1683900100 Ø3/8" × 22 × 1.5T_Flat Washer 1683900101 Ø40_C Ring 1683900102 Ø52 × Ø40 × 28m/m_Bushing CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013...
-
Page 15: Exploded View Drawing
Exploded View Drawing CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013... -
Page 16: Manufacturer's Limited Warranty
REPAIR PARTS AND SERVICE All of the parts for the Spirit cycle shown in figure can be ordered from Dyaco Canada Inc. 6050 DON MURIE STREET, NIAGARA FALLS, ONTARIO L2G 0B3. When ordering parts, the parts will be sent and billed at the current prices. - Page 17 CUSTOMER SERVICE 1-888-707-1880 1611683900(CB900)©2013...
