Stand by
Blackout the unit
Strobe
X/Y moving show mode
1.Gobo / Color sync.
selection
strobe
( Show 1 ~ Show 4 )
Function
IM-5S
2.Sync. strobe
Please refer to Show mode
3.Two-light strobe
in 4.2 Main Function
Sound 1
Sound 2
Mode
(LED off )
(LED normal blinking)
Stand by
Blackout the unit
Strobe
X/Y moving show mode
1.Color sync. strobe
selection
2.Sync. strobe
( Show 1 ~ Show 4 )
Function
3.Two-light strobe
Please refer to Show mode
IM-5W
in 4.2 Main Function
Sound 1
Sound 2
Mode
(LED off )
(LED normal blinking)

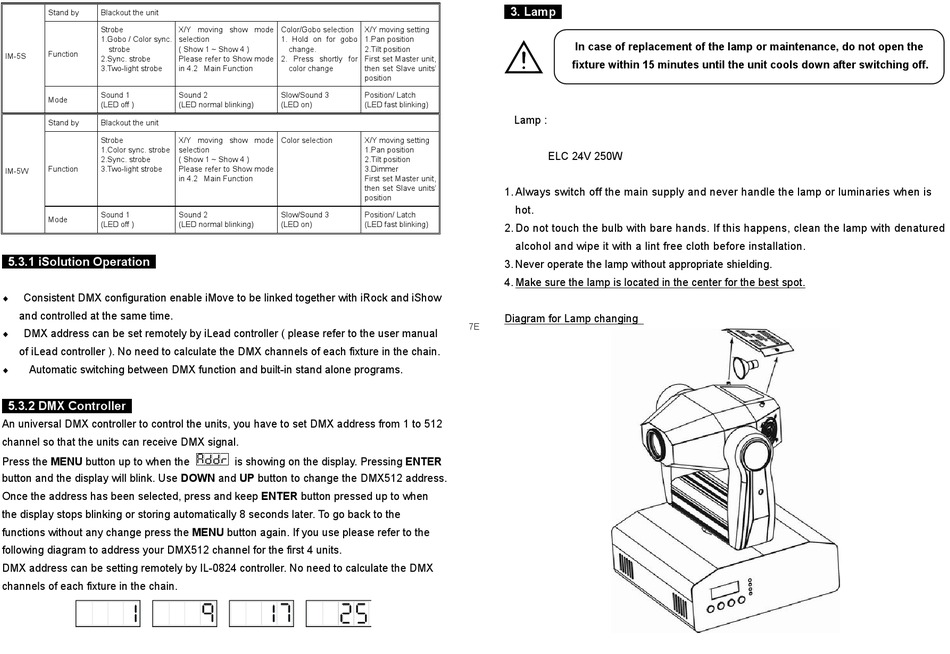

5.3.1 iSolution Operation
♦
Consistent DMX configuration enable iMove to be linked together with iRock and iShow
and controlled at the same time.
♦
DMX address can be set remotely by iLead controller ( please refer to the user manual
of iLead controller ). No need to calculate the DMX channels of each fixture in the chain.
♦
Automatic switching between DMX function and built-in stand alone programs.
5.3.2 DMX Controller
An universal DMX controller to control the units, you have to set DMX address from 1 to 512
channel so that the units can receive DMX signal.
Press the MENU button up to when the
button and the display will blink. Use DOWN and UP button to change the DMX512 address.
Once the address has been selected, press and keep ENTER button pressed up to when
the display stops blinking or storing automatically 8 seconds later. To go back to the
functions without any change press the MENU button again. If you use please refer to the
following diagram to address your DMX512 channel for the first 4 units.
DMX address can be setting remotely by IL-0824 controller. No need to calculate the DMX
channels of each fixture in the chain.
Color/Gobo selection
X/Y moving setting
1. Hold on for gobo
1.Pan position
change.
2.Tilt position
2. Press shortly for
First set Master unit,
color change
then set Slave units'
position
Slow/Sound 3
Position/ Latch
(LED on)
(LED fast blinking)
Color selection
X/Y moving setting
1.Pan position
2.Tilt position
3.Dimmer
First set Master unit,
then set Slave units'
position
Slow/Sound 3
Position/ Latch
(LED on)
(LED fast blinking)
is showing on the display. Pressing ENTER
3. Lamp
In case of replacement of the lamp or maintenance, do not open the
fixture within 15 minutes until the unit cools down after switching off.
¥ Lamp :
ELC 24V 250W
1. Always switch off the main supply and never handle the lamp or luminaries when is
hot.
2. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
3. Never operate the lamp without appropriate shielding.
4. Make sure the lamp is located in the center for the best spot.
Diagram for Lamp changing
7E
