2.2.3 Printing instructions
1)
To use the printer's infrared port, a computer or Personal Digital Assistant (PDA) with IR port is
required.
2)

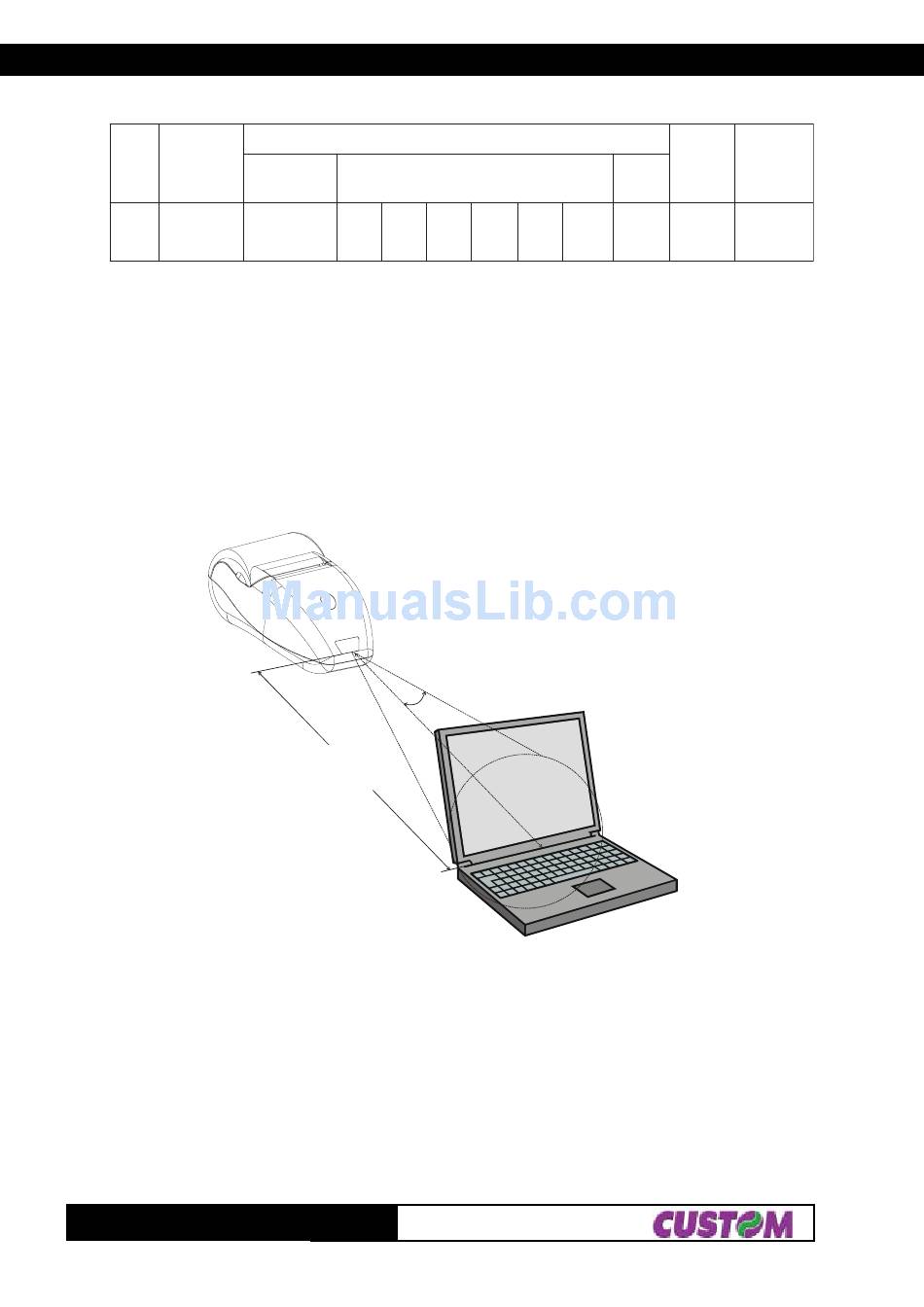

Position a computer conforming to the specifications in point 2) not more than a meter away from the
printer's infrared port. Make sure the two ports are in front of each other with an angle of not more than
15° on the fou sides. Send the print command from the computer (see fig.2.5).
3)
Send the following data printing, like descript in to paragraph 2.2.1 and 2.2.2 for mod. DPT100-B or like
descript in to paragraph 2.3 for mod. DPT100-I
2.3 IrDA PROTOCOL OVERVIEW (only DPT100-I model)
This paragraph contains a general overview information about IrDA protocol implemented on the printer. For
further detrils about the complete IrDA standard specifications are available from the IrDA website www.IrDA.org.
The IrDA standard specifies the following protocols:
•
Physical Signaling Layer (PHY)
•
Lynk Access Protocol (IrLAP)
•
Lynk Management Protocol/Information Access Service (IrLMP/IAS)
The IrDA data lists optional protocols. These are:
•
Tiny TP
•
Ir Tran-P
•
IrOBEX
•
IrLAN
DPT100-B/I/BT
E
p x
a
n
d
e
d
m
o
d
e
$
0
3
$
4
3
$
5
5
C
U
15°
1 meter
2. INTERFACES
