Sample Applications

Integrating Fast Ethernet into an Ethernet Network

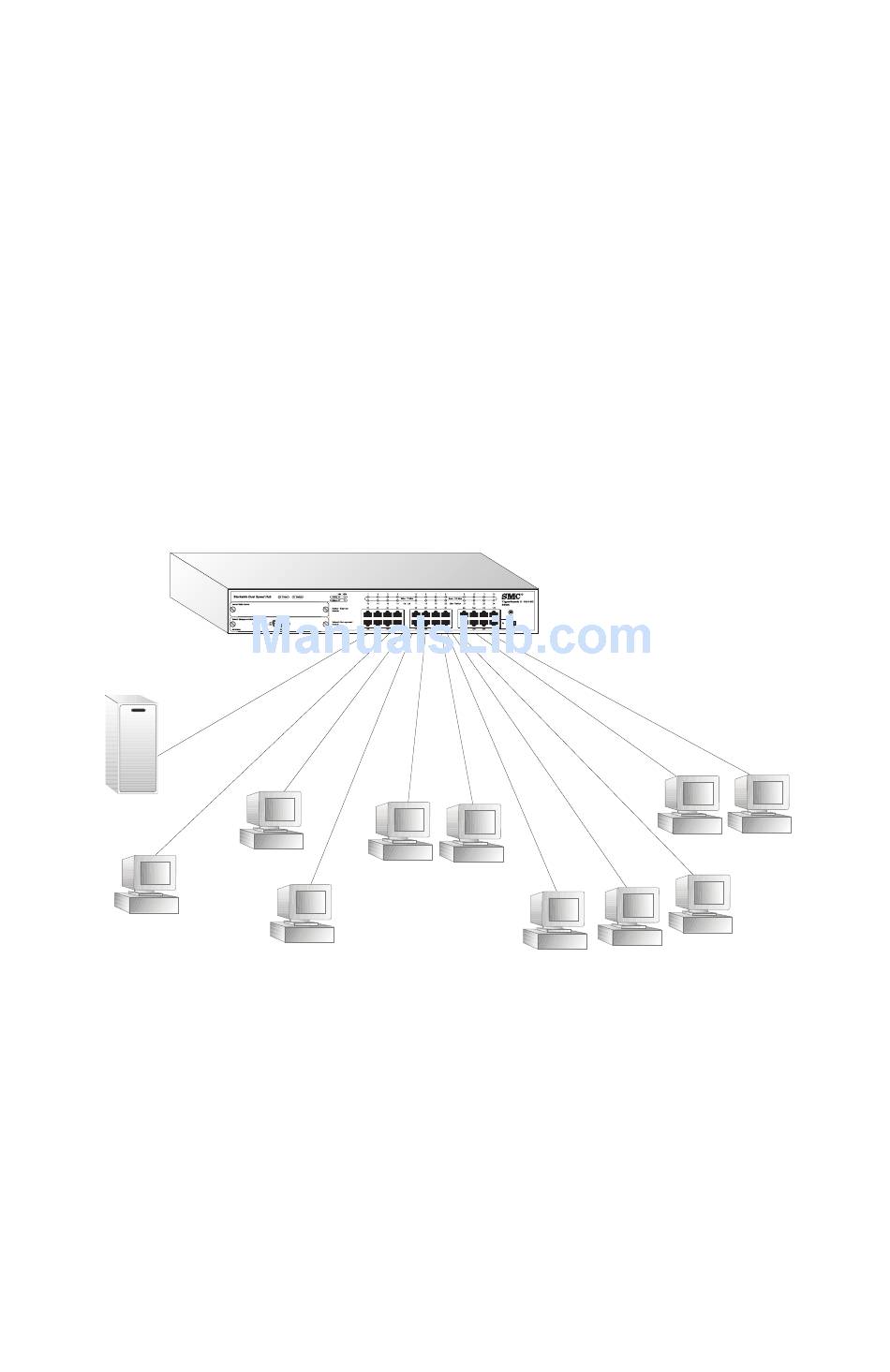

In the illustration below, a TigerStack II 10/100 Base Hub is used

standalone to integrate Fast Ethernet into an Ethernet network. The

Internal Switch Module, included in the Base Hubs, interconnects

the two segments to form a single LAN with an aggregate

bandwidth of 110 Mbps.

Note that for the Base Hub models, a Network Management

Module can be added at a later date.
