N P
ETWORK LANNING
Adding Extender Modules to the stack increases both the reach and
bandwidth of the network. In Figure 2-4, the same two stacks are
joined by a 10BASE-T/100BASE-TX Extender Module, instead of
being cascaded via front-panel ports, increasing the aggregate
bandwidth. A second 10BASE-T/100BASE-TX Extender Module is
used to provide a dedicated 200 Mbps connection to a server in
full-duplex mode.

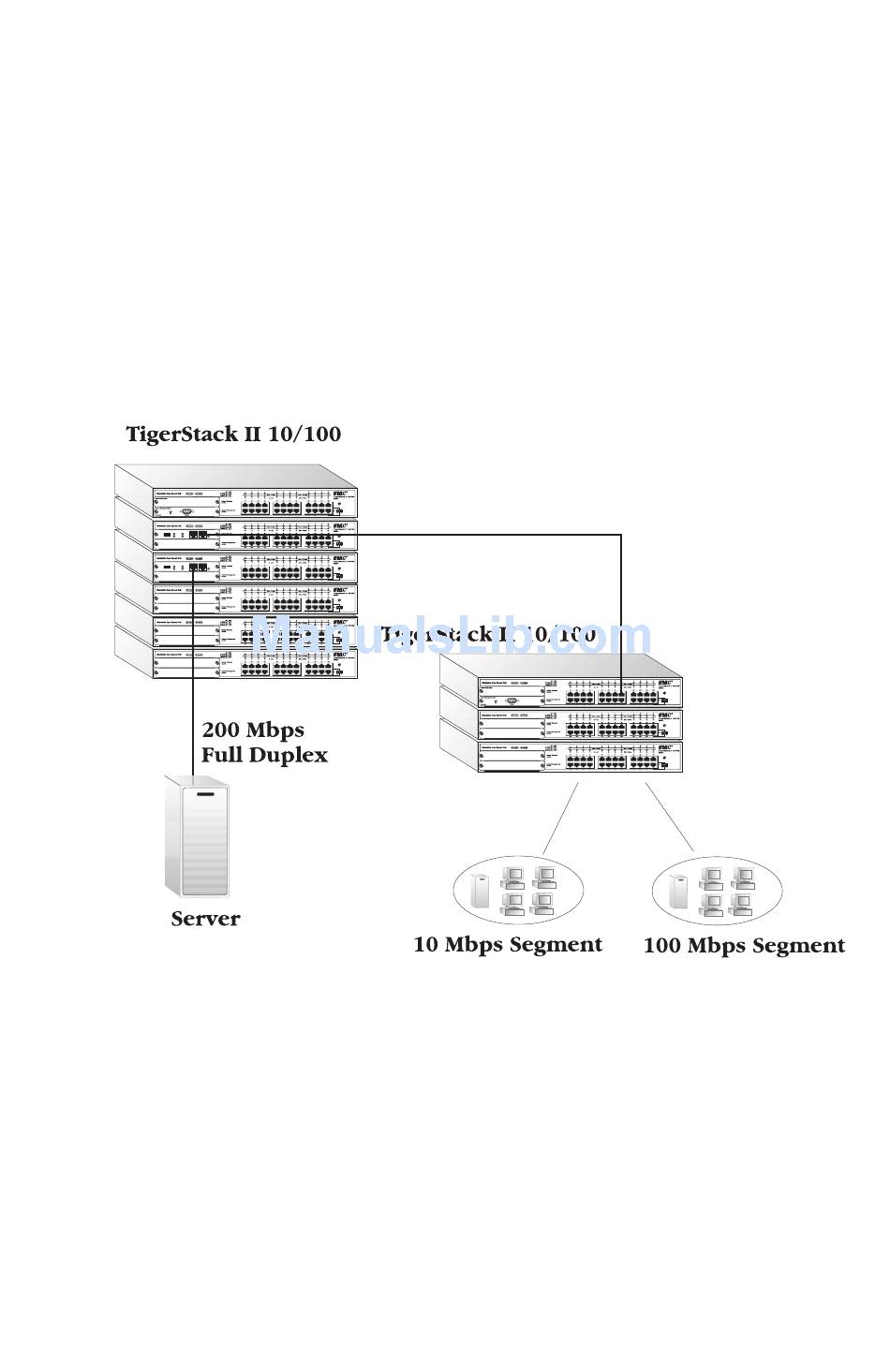

Figure 2-4. Using 10/100 Extender Modules

2-5
