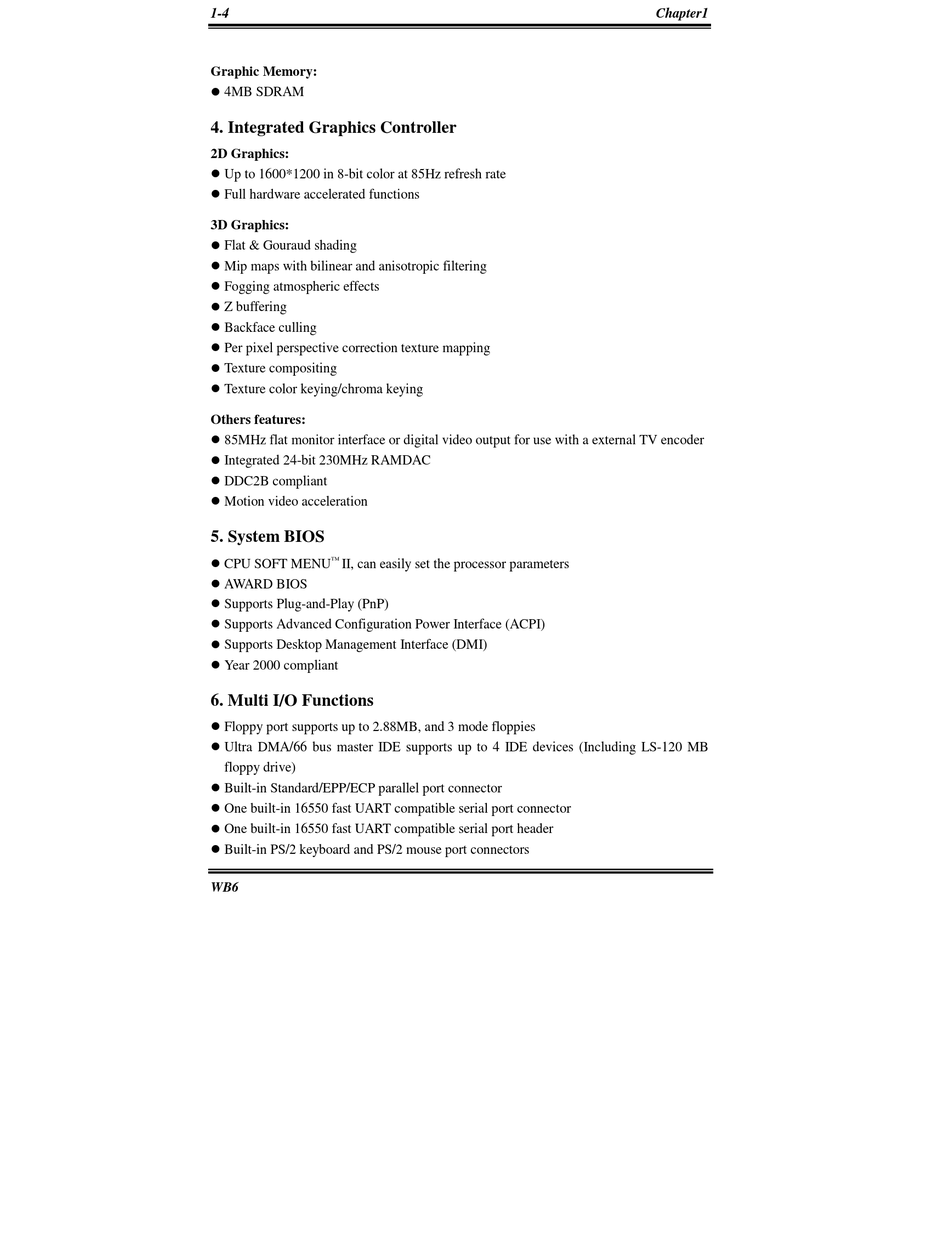

Abit WB6 User Manual page 8

1-4 Chapter1
Graphic Memory:
" 4MB SDRAM
4. Integrated Graphics Controller
2D Graphics:
" Up to 1600*1200 in 8-bit color at 85Hz refresh rate
" Full hardware accelerated functions
3D Graphics:
" Flat & Gouraud shading
" Mip maps with bilinear and anisotropic filtering
" Fogging atmospheric effects
" Z buffering
" Backface culling
" Per pixel perspective correction texture mapping
" Texture compositing
" Texture color keying/chroma keying
Others features:
" 85MHz flat monitor interface or digital video output for use with a external TV encoder
" Integrated 24-bit 230MHz RAMDAC
" DDC2B compliant
" Motion video acceleration
5. System BIOS
" CPU SOFT MENU
™
II, can easily set the processor parameters
" AWARD BIOS
" Supports Plug-and-Play (PnP)
" Supports Advanced Configuration Power Interface (ACPI)
" Supports Desktop Management Interface (DMI)
" Year 2000 compliant
6. Multi I/O Functions
" Floppy port supports up to 2.88MB, and 3 mode floppies
" Ultra DMA/66 bus master IDE supports up to 4 IDE devices (Including LS-120 MB
floppy drive)
" Built-in Standard/EPP/ECP parallel port connector
" One built-in 16550 fast UART compatible serial port connector
" One built-in 16550 fast UART compatible serial port header
" Built-in PS/2 keyboard and PS/2 mouse port connectors
WB6
