Installing the Motherboard

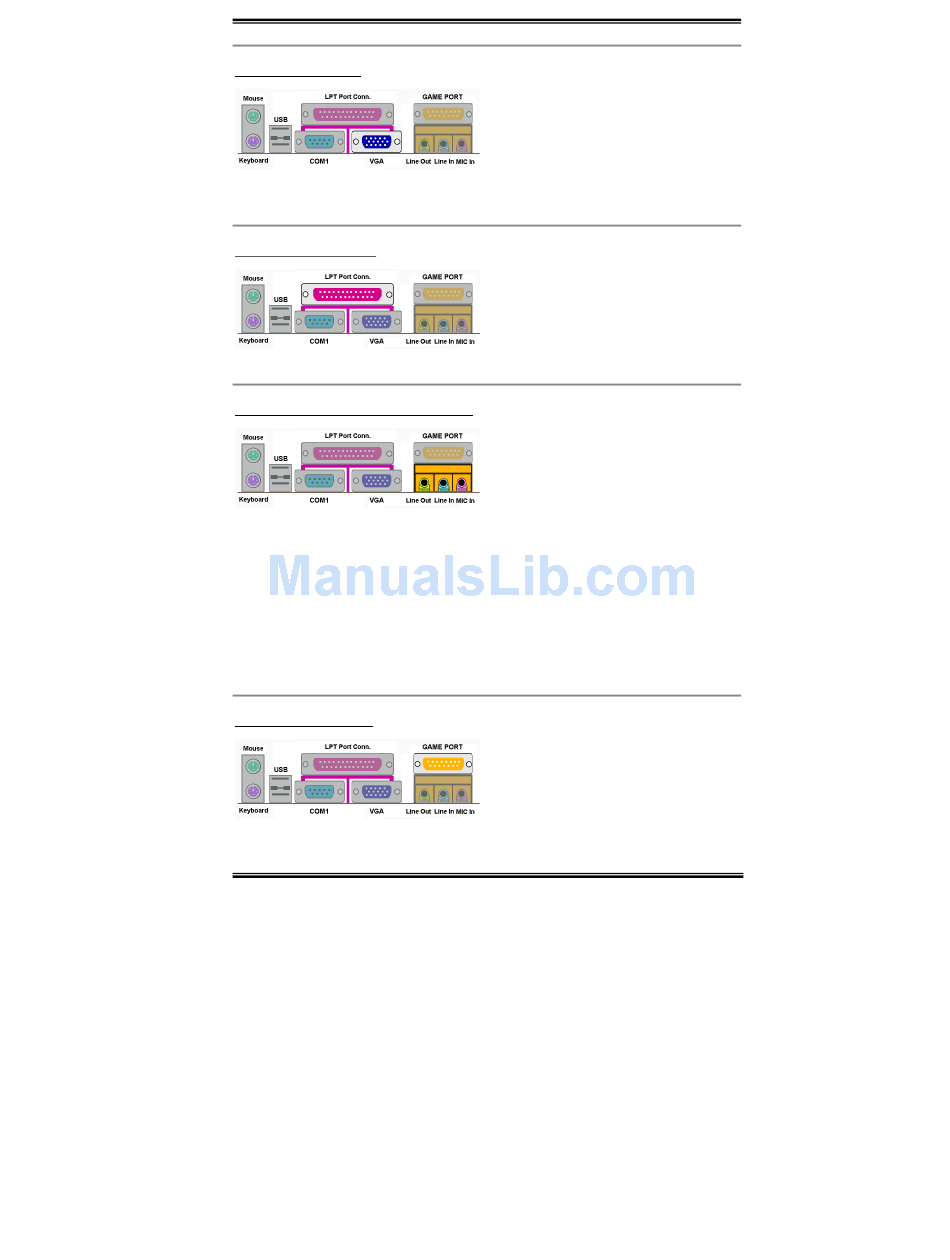

VGA Port Connector
often, we suggest you to fasten the two screws from the plug with this connector. It will
assure your display quality.
Parallel Port Connector
EPP/ECP scanner, etc.
Line Out, Line In and Mic In Connector
AUX signal input socket. Remember, the motherboard does not have a built in amplifier to
drive the speaker, you have to use a speaker that has a built in amplifier. Otherwise, you may
not be able to hear any sound or only a small volume of sound from the speaker.
Line In Connector: You can connect the TV adapter audio output signal, or external
audio sources, like a CD walkman, video camcorder, VHS recorder audio output signal plug
to this connector. Your audio software can control the input level for the line-in signal.
Mic In Connector: You can connect the plug from the microphone to this connector. Do
not connect other audio (or signal) sources to this connector.
GAME Port Connector
user's manual for further detailed information.
This DIN 15 pin Female connector is for
VGA signal output to the monitor. You can
connect the plug from the monitor to this
connector. If you don't move your system
This parallel port is also called an "LPT"
port, because it usually connects to the
printer. You can connect other devices that
support this communication protocol, like a
Line Out connector: You can connect an
external stereo speaker signal input plug to
this connector, or you can connect the plug
from here to the stereo audio equipment
You can connect your joystick, game pad, or
other simulation hardware device DIN 15-
pin plugs to this connector. Please refer to
the further connection notes of the device's
User's Manual
