Installing the Motherboard

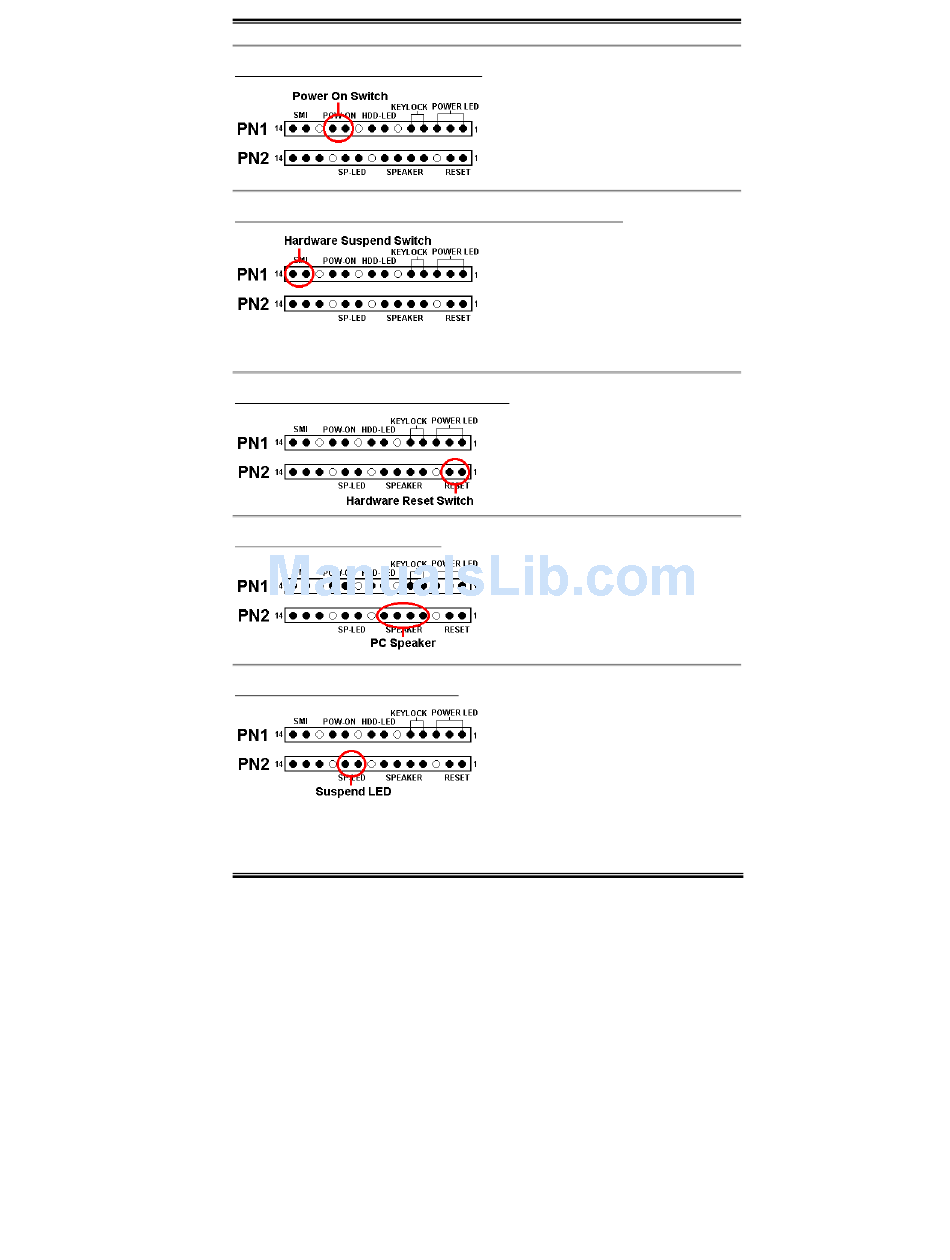

PN1 (Pin 10-11): Power on Switch Header
PN1 (Pin 13-14): Hardware Suspend Switch (SMI Switch) Header
the BIOS setup, this function will not work.
PN2 (Pin 1-2): Hardware Reset Switch Header
PN2 (Pin 4-5-6-7): Speaker Header
PN2 (Pin 9-10): Suspend LED Header
position and the orientation. For pin count-name list for PN1 and PN2, please refer to
table 2-3.
Attach the cable from the case's front panel
power switch to this header.
Attach the cable from the case's front panel
suspend switch (if there is one) to this
header. Use this switch to enable/disable the
power management function by hardware.
Note: If you enable the ACPI function in
Attach the cable from the case's front panel
Reset switch to this header. Press and hold
the reset button for at least one second to
reset the system.
Attach the cable from the system speaker to
this header.
Insert the two-threaded suspend LED cable
into pin 9 and pin 10. If you install it in the
wrong direction, the LED light will not
illuminate correctly.
Note: Watch the Suspend LED pin
