Introduction of WB6 Features
As a result, when it comes to 12:00 AM January 1, 2000 the RTC will switch from
December 31 11:59 PM 1999 to 12:00 AM January 1 1900.
Y2K compliance deals with the date change over from 31 December 1999 to 1 January 2000,
and with recording and reporting of all dates from the RTC including leap year dates. This
motherboard is free from the Y2K problem because its BIOS are Y2K compliant.
If the operating system or application software cannot handle Year 2000 dates, you will
still be facing the Y2K threat because it is not a hardware problem that relates to the
motherboard itself. According to Award BIOS, it is BIOS source code released after 31
May 1995 complies with all known Y2K issues; however, it may still fail the 2000.exe
test. Award has modified its BIOS source code to accommodate the requirements of
2000.exe. Award BIOS source code issued later than 18 November 1996 passes the
NTSL 2000.exe test program.

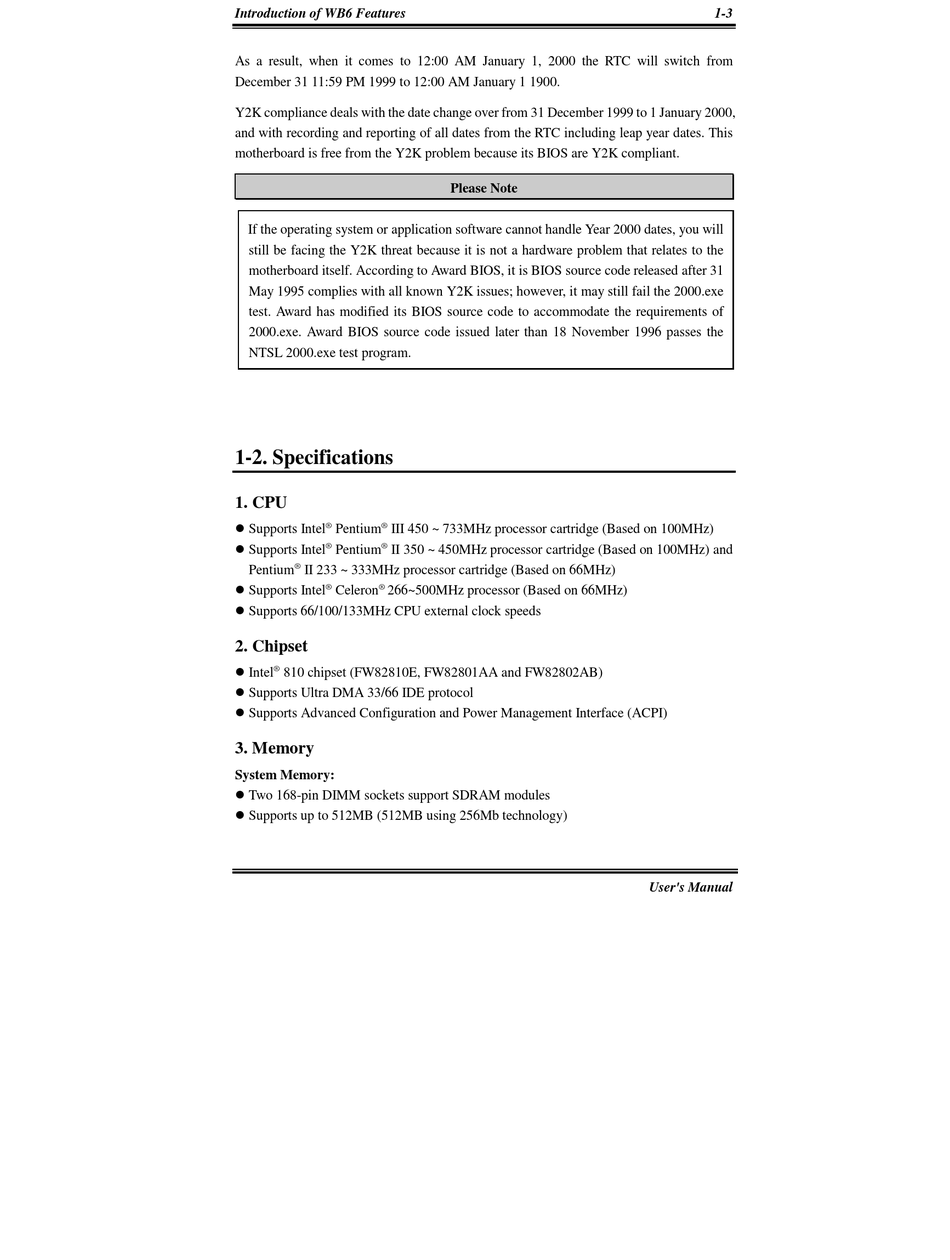

1-2. Specifications

1. CPU
" Supports Intel
®
®
Pentium
III 450 ~ 733MHz processor cartridge (Based on 100MHz)
" Supports Intel
®
®
Pentium
II 350 ~ 450MHz processor cartridge (Based on 100MHz) and
®
Pentium
II 233 ~ 333MHz processor cartridge (Based on 66MHz)
" Supports Intel
®
®
Celeron
266~500MHz processor (Based on 66MHz)
" Supports 66/100/133MHz CPU external clock speeds
2. Chipset
" Intel
®
810 chipset (FW82810E, FW82801AA and FW82802AB)
" Supports Ultra DMA 33/66 IDE protocol
" Supports Advanced Configuration and Power Management Interface (ACPI)
3. Memory
System Memory:
" Two 168-pin DIMM sockets support SDRAM modules
" Supports up to 512MB (512MB using 256Mb technology)
Please Note
1-3
User's Manual
