Shutdown Codes

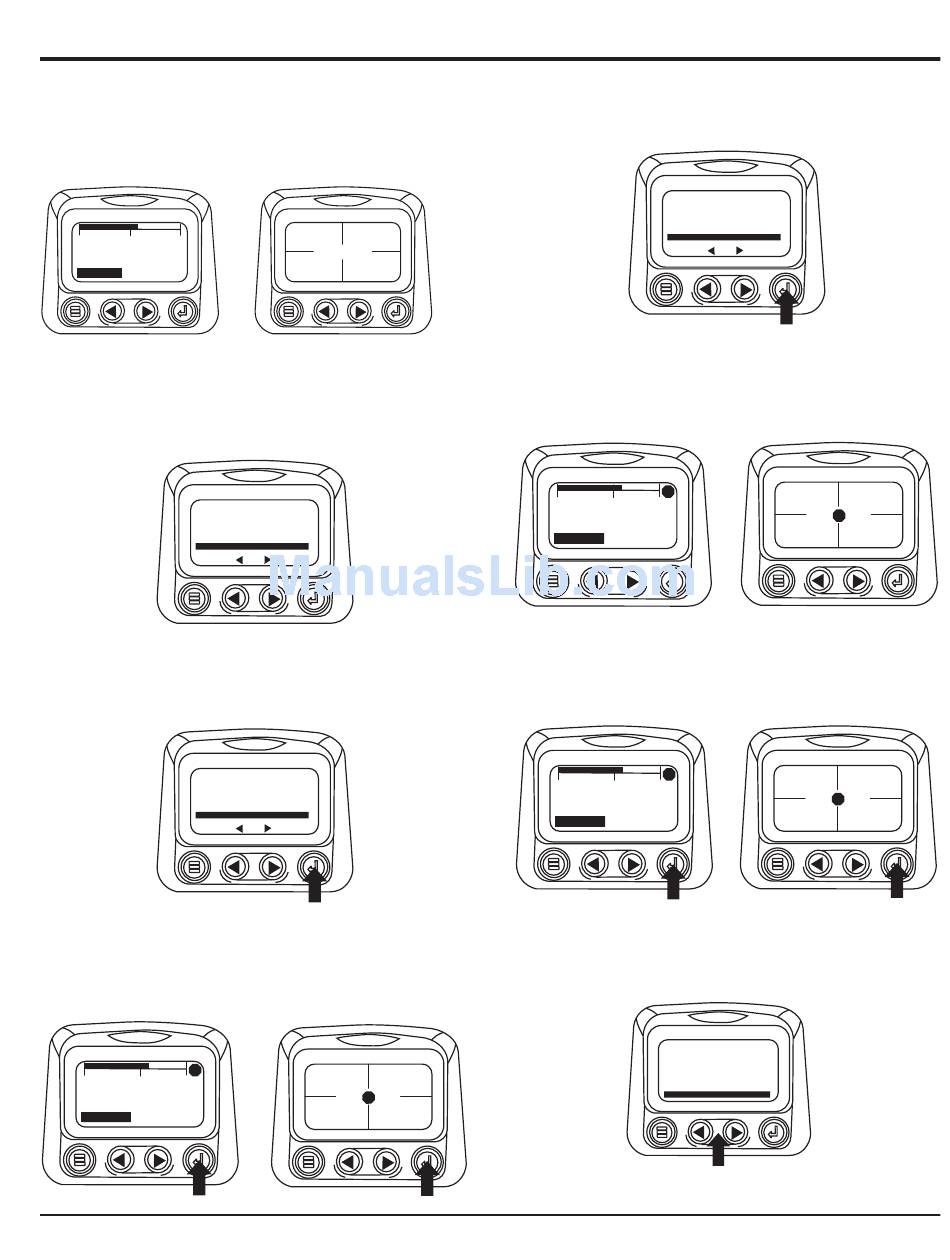

1. During normal operation the single or four parameter
screen will be displayed
0 1500 3000
1800 RPM
COOL TEMP
ENG RPM
2. When the diagnostic display receives a severe fault
code from an engine control unit the single or four
parameter screen will be replaced with the "Shutdown"
message.
1 of x
SPN110 FMI10
HIGH COOLANT TEMP
3. To acknowledge and "Hide" the fault and return to the
single or four parameter display touch the "Enter Button
"
1 of x
SPN110 FMI10
HIGH COOLANT TEMP
4. . The display will return to the single or four parameter
display, but the display will contain the "Shut Down"
icon. Touching the "Enter Button" will redisplay the
hidden fault.
!
0 1500
3000
1800 RPM
ENG RPM
COOL TEMP!
DCA85USJ2 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (03/22/11) — PAGE 25
1000 RPM
98%
LOAD RPM ENG RPM
14.2
57 PSI
BATT VOLT OIL PRES
SHUTDOWN
MORE
HIDE
SHUTDOWN
MORE
HIDE
1000 RPM
98%
LOAD RPM ENG RPM
!
14.2 57 PSI
BATT VOLT
OIL PRES
DIAGNOSTIC DISPLAY
5. Touching the "Enter Button" once again will hide the
fault and return the screen to the single or four
parameter display.
1 of x
SPN110 FMI10
HIGH COOLANT TEMP
6. The Single or Four parameter screen will display the
fault icon until the fault condition is corrected. NOTE:
Ignoring active fault codes could result in severe engine
damage.
!
0 1500 3000
1800 RPM
ENG RPM
COOL TEMP!
Bachlight Adjustment
1. Starting at the single or four engine parameter display
touch the "Menu Button".
!
0 1500 3000
1800 RPM
COOL TEMP!
ENG RPM
2. The main menu will pop up on the display. Use the
"Arrow Buttons" to scroll through the menu until the
"Adjust Backlight" is highlighted.
GO TO 1-UP DISPLAY
STORED CODES
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
ADJUST BACKLIGHT
SHUTDOWN
MORE
HIDE
98% 1000 RPM
LOAD RPM ENG RPM
!
14.2 57 PSI
BATT VOLT
OIL PRES
98% 1000 RPM
ENG RPM
LOAD RPM
!
14.2 57 PSI
BATT VOLT OIL PRES
