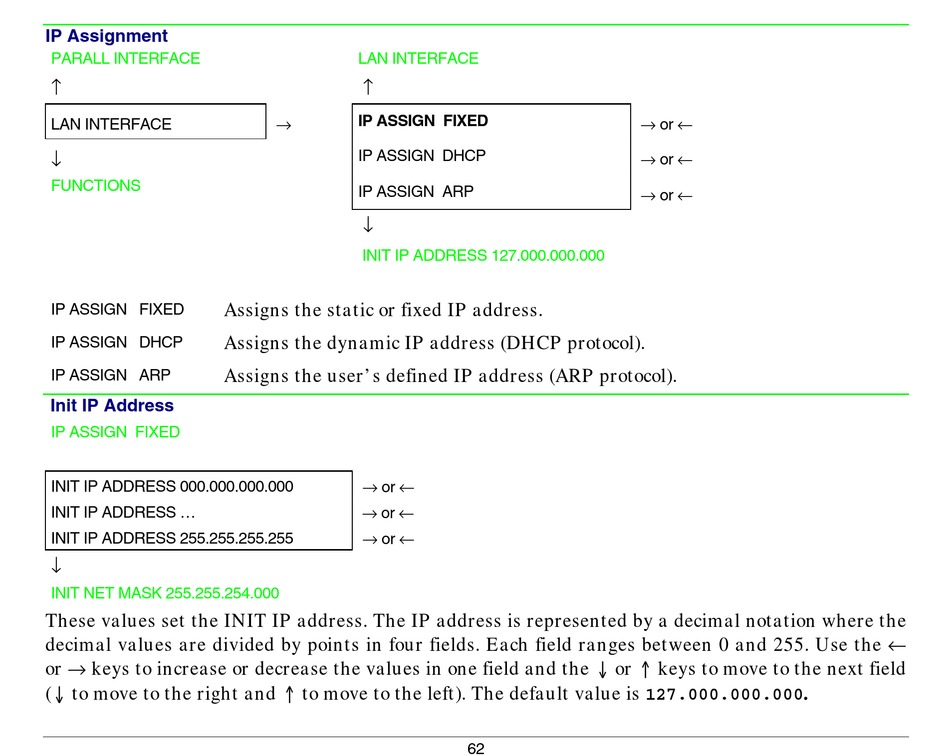

IP Assignment
PARALL INTERFACE
↑
LAN INTERFACE
↓
FUNCTIONS
Assigns the static or fixed IP address.
IP ASSIGN FIXED
Assigns the dynamic IP address (DHCP protocol).
IP ASSIGN DHCP
Assigns the user' s defined IP address (ARP protocol).
IP ASSIGN ARP
Init IP Address
IP ASSIGN FIXED
INIT IP ADDRESS 000.000.000.000
INIT IP ADDRESS ...
INIT IP ADDRESS 255.255.255.255
↓
INIT NET MASK 255.255.254.000
These values set the INIT IP address. The IP address is represented by a decimal notation where the
decimal values are divided by points in four fields. Each field ranges between 0 and 255. Use the ←
or → keys to increase or decrease the values in one field and the p or n keys to move to the next field
(p to move to the right and n to move to the left). The default value is
LAN INTERFACE
↑
→
IP ASSIGN FIXED
IP ASSIGN DHCP
IP ASSIGN ARP
↓
INIT IP ADDRESS 127.000.000.000
→ or ←
→ or ←
→ or ←
→ or ←
→ or ←
→ or ←
127.000.000.000
62
.
