Maintenance Manu
Firmware Downloading

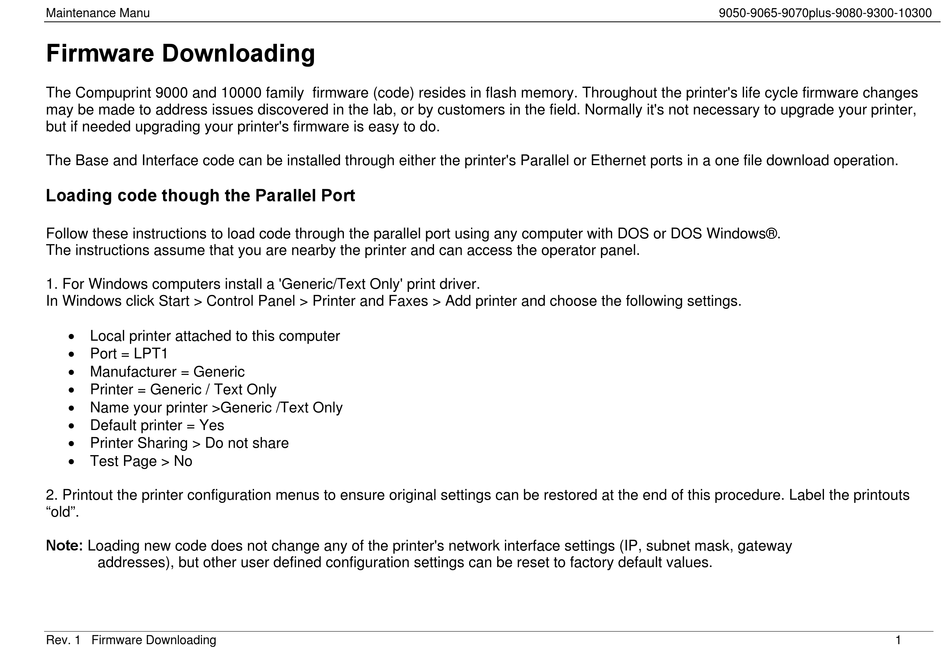

The Compuprint 9000 and 10000 family firmware (code) resides in flash memory. Throughout the printer's life cycle firmware changes
may be made to address issues discovered in the lab, or by customers in the field. Normally it's not necessary to upgrade your printer,
but if needed upgrading your printer's firmware is easy to do.
The Base and Interface code can be installed through either the printer's Parallel or Ethernet ports in a one file download operation.
Loading code though the Parallel Port
Follow these instructions to load code through the parallel port using any computer with DOS or DOS Windows®.
The instructions assume that you are nearby the printer and can access the operator panel.
1. For Windows computers install a 'Generic/Text Only' print driver.
In Windows click Start > Control Panel > Printer and Faxes > Add printer and choose the following settings.
Local printer attached to this computer
Port = LPT1
Manufacturer = Generic
Printer = Generic / Text Only
Name your printer >Generic /Text Only
Default printer = Yes
Printer Sharing > Do not share
Test Page > No
2. Printout the printer configuration menus to ensure original settings can be restored at the end of this procedure. Label the printouts
"old".
Note: Loading new code does not change any of the printer's network interface settings (IP, subnet mask, gateway
addresses), but other user defined configuration settings can be reset to factory default values.
Rev. 1 Firmware Downloading
9050-9065-9070plus-9080-9300-10300
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Compuprint 9000 Series
Summary of Contents for Compuprint 9000 Series
- Page 1 Firmware Downloading The Compuprint 9000 and 10000 family firmware (code) resides in flash memory. Throughout the printer's life cycle firmware changes may be made to address issues discovered in the lab, or by customers in the field. Normally it's not necessary to upgrade your printer, but if needed upgrading your printer's firmware is easy to do.
- Page 2 Maintenance Manu 9050-9065-9070plus-9080-9300-10300 a. Power on the printer. b. Load forms in the front tractor. c. Press the ON LINE key to put the printer in WAIT status. d. Press the PROGRAM key to enter in the Program Setup, the displays wll show: Printout ? NO e.
- Page 3 Maintenance Manu 9050-9065-9070plus-9080-9300-10300 Loading code though the Ethernet Port Follow these instructions to FTP printer code to a network attached printer. The instructions assume that you are nearby the printer and can access the operator panel. 1. Printout the printer configuration menus to ensure original settings can be restored at the end of this procedure. Label this set of configurations as old.
- Page 4 Maintenance Manu 9050-9065-9070plus-9080-9300-10300 Example: If printer IP is 10.0.252.233 then set the computer IP to 10.0.252.234. h. Click OK and close the window. 4. Connect your computer to the printer with an Ethernet cross-over cable. 5. Verify that the printer can be contacted from your computer. In a DOS window, type “ping xxx.xxx.xxx.xxx”...
-
Page 5: Error Messages
Maintenance Manu 9050-9065-9070plus-9080-9300-10300 Error messages INVALID CODE: Binary code file is corrupt or incompatible. ERROR RECOVERY ACTION: Open the Windows (Generic/Text only) print driver queue, cancel all pending print documents, and try again. If the error repeats the code file may be corrupted or incompatible with this printer model. After displaying this message, the printer automatically discharges any code upgrade and escapes from the firmware downloading procedure returning in normal ON LINE status.
