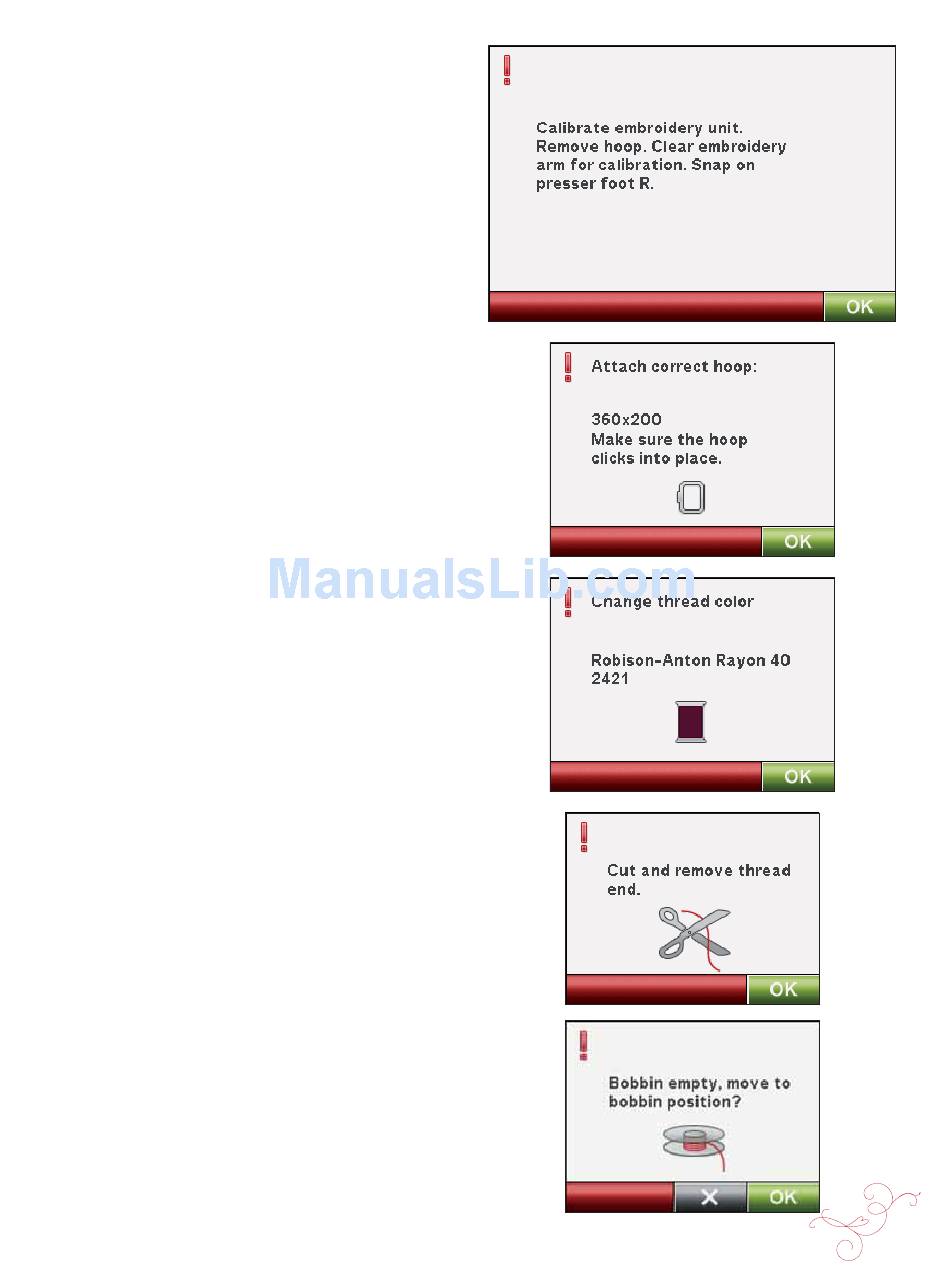

EMBROIDERY STITCH-OUT POP-UP
MESSAGES

Embroidery Unit Calibration

When the embroidery unit is attached, a pop-up message
asks you to slide off the hoop and clear the machine area for
calibrating the embroidery arm. You will also be reminded to
snap on the embroidery presser foot R.
Note: It is very important to remove the hoop, otherwise the hoop or the
embroidery unit may be damaged while calibrating.

Attach Correct Hoop

If the size of the hoop attached to the machine does not
match the size displayed on screen, the machine will not
embroider. You must change the hoop to the displayed size or
change the hoop setting to match the hoop size attached.
The hoop needs to be inserted properly for the machine to
detect it. Slide the hoop connector into the hoop attachment
from front to back until it clicks into place.
You will not be able to go to Embroidery Stitch-Out without
the selected hoop attached properly.

Change Thread Color

When it is time to change the needle thread, the machine stops
and the upper thread is cut. Change the spool of thread and
re-thread the machine. The next recommended color number
is shown in the pop-up message.
Cut Thread End
After changing the thread, the machine will sew a few stitches
and then stop so you can cut the thread end.
Note: When Automatic Jump Stitch Trim is selected in the SET menu,
the thread end will be cut automatically. Simply remove the thread tail
that has been cut.
Bobbin Empty, move to Bobbin Position?
When the bobbin is almost empty, the machine stops
automatically and a pop-up message appears on the screen.
Touch OK to move to Bobbin Position. The hoop will move
away from you, allowing you to open the bobbin cover and
replace the bobbin. Replace the empty bobbin with a full
one and pull back excess needle thread. When the bobbin is
replaced, press the Start/Stop button to move the hoop back
and start embroidering where the embroidery stopped.
Note: If you want to move the hoop back to where the embroidery stopped
without starting to embroider directly, touch Current Stitch Position after
replacing the bobbin. When ready, start embroidering again by pressing
the Start/Stop button or the foot control.
Note: It is possible to embroider until the thread has completely run out.
Press the Start/Stop button to continue embroidering without closing the
bobbin empty pop-up message.
