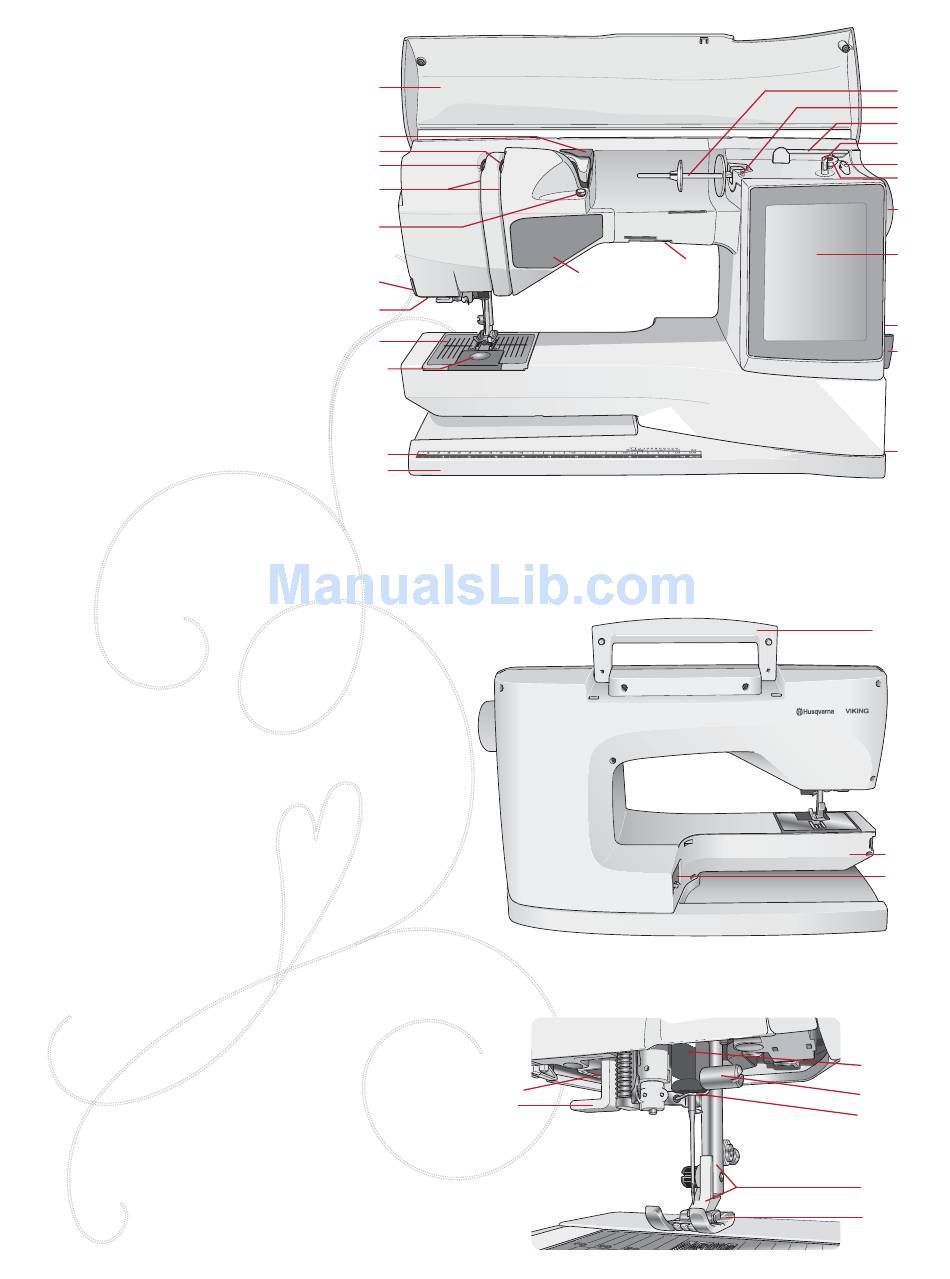

MACHINE OVERVIEW

1. Lid
2. Pre-Tension Thread guide
3. Thread tension discs
4. Thread take-up lever
5. Thread slots
6. Thread tension disc for bobbin winding
7. Thread cutter
8. LED-lights
9. Needle plate
10. Bobbin cover
11. Button ruler and built-in tape measure
12. Base plate
13. Function button panel
14. Main spool pin
15. Bobbin winding thread guide
16. Auxiliary spool pin
17. Bobbin winder
18. Thread cutter for bobbin winding
19. Bobbin winder lever
20. Handwheel
21. Interactive Color Touch Screen
22. Built-In USB ports
23. Stylus holder
24. ON/OFF switch, connectors for power
cord and foot control

REAR SIDE

25. Handle
26. Free arm
27. Embroidery unit connection socket

NEEDLE AREA

28. Sensor One-Step Buttonhole Foot
socket
29. Built-In needle threader
30. Needle bar
31. Needle clamp
32. Needle thread guide
33. Presser foot bar and presser foot ankle
34. Presser foot
1:6
1
2
3
4
5
6
7
8
9
10
11
12
28
29
8
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
30
31
32
33
34
