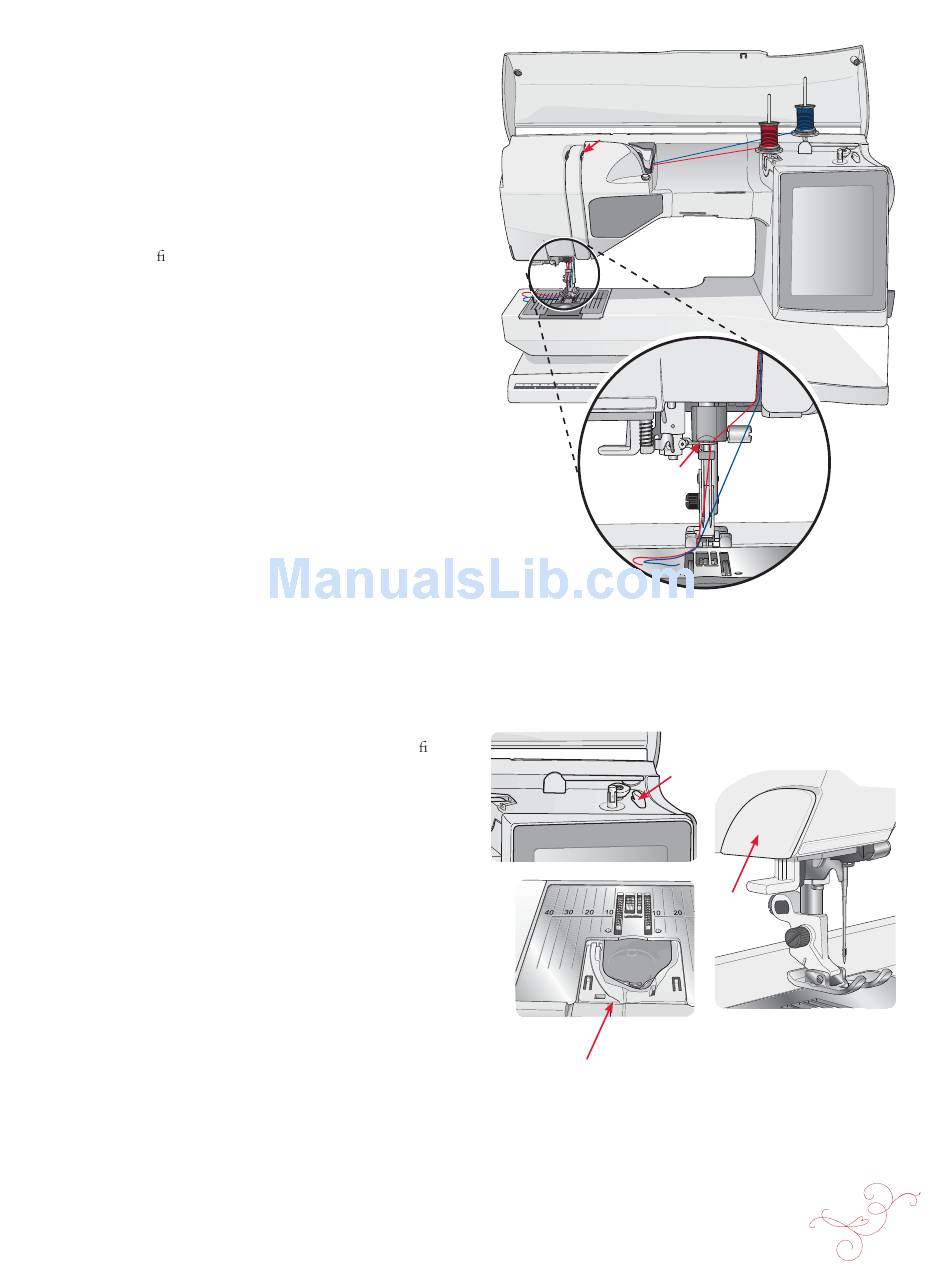

THREADING FOR TWIN NEEDLE

Replace the sewing needle with a twin needle. Make
sure the presser foot is raised and the needle is in the up
position.
1. Lift the spool pin up and all the way to the right.
Lock the spool pin in the vertical position by slightly
pressing it down. Slide on the large spool cap. For
spools smaller than the medium size spool cap, place a
felt pad under the thread spool.
2. Place the rst thread spool on the spool pin. The
spool should rotate in a clockwise direction when the
thread reels off the spool.
3. Thread the machine as described on page
LEFT NEEDLE:
2:4. Check to ensure that the thread lies between the
left thread tension discs (A). Thread the left needle
manually.
4. Pull out the auxiliary spool pin and slide on the large
spool cap. For spools smaller than the medium size
spool cap, place a felt pad under the thread spool.
5. Place the second thread on the spool pin. The second
spool should rotate in a counterclockwise direction
when the thread reels off the spool.
6. Thread the machine as before but this
RIGHT NEEDLE:
thread should lie between the right thread tension discs
(A) and outside the needle thread guide (B). Thread
the right needle manually.
Note: Activate and choose the correct needle width in Sewing Settings
in SET Menu to prevent damage on the needle or the presser foot.
THREAD CUTTER
There are three thread cutters on your machine. The rst
one is close to the bobbin winder spindle (A) for cutting
the thread before and after winding. The second one is
next to the bobbin area (B) for cutting the bobbin thread
after placing it in the machine. The third one is on left side
of the machine (C) for manually cutting top and bobbin
threads. Pull both threads into the cutter from the back to
the front and pull down quickly.
THREAD SENSOR
If the upper thread breaks or bobbin thread runs out,
the machine stops and a pop-up message appears on the
screen.
If upper thread breaks: Re-thread the machine and touch
OK on the pop-up message. If bob bin thread runs out,
replace it with a full bobbin and continue sewing.
A
B
A
C
B
