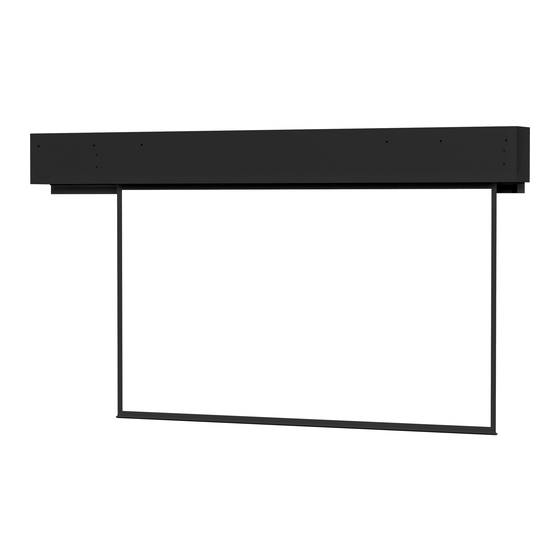

Da-Lite Executive Electrol Instruction Book
Hide thumbs
Also See for Executive Electrol:
- Specification (2 pages) ,
- Instruction book (12 pages) ,
- Instruction book (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Da-Lite Executive Electrol
Summary of Contents for Da-Lite Executive Electrol
- Page 1 The Da-Lite Difference. Instruction Book for DA-LITE SCREEN COMPANY, INC. 3100 North Detroit Street ExEcutIvE® ElEctrol® Post Office Box 137 Warsaw, Indiana 46581-0137 Phone: 574/267-8101 800-622-3737 Fax: 574/267-7804 http:// www.da-lite.com e-mail: info@da-lite.com...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When using your video equipment, basic safety precautions should always be followed, including the following: 1. R ead and understand all instructions before using. 2. P osition the cord so that it will not be tripped over, pulled, or contact hot surfaces. 3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat. 4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer when repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subse- quently. 5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock, or injury to persons. SAVE THESE INSTRUCTIONS PRE-INSTALLATION 1. Carefully unpack screen and remove outer wrapping from case. 2. Remove fabric and cardboard strips from access door. 3. Remove access door by gently prying from middle section. 4. FOR TYPE 3 INSTALLATION ONLY, remove wood strips along bottom edge of screen case. 5. Remove instruction cover (Fig. 1). Remove, reverse, and remount Center Support Brackets. 6. Do not remove metal shipping brace (secures roller), wrapping paper or tape until screen is installed. NOTE: Screen is not centered in box. Screen is set 22" from motor end. 7 . Make sure to recheck measurement of screen location before installation.
- Page 3 " clearance around access door. Keep paint, plaster, tile or mastic out of hinge. Fit access panel so it can be removed for maintenance. SCREEN ADJUSTMENT The picture surface drop, and the opening and closing of the fabric door, are controlled automatically by limit switches which have been preset at Da-Lite. When the picture surface is moving upward, it is controlled by a limit switch that shuts off when the door closes. To adjust for more or less picture drop (viewing area), proceed in the following manner: SCREEN UNROLLED IN “DOWN” OR “BOTTOM” POSITION. NOTE: Limit switch knob labeled DOWN controls point of picture surface in bottom position. Limit switch knob labeled DOOR con- trols the synchronization of the door opening or closing. Do not adjust! MORE SCREEN DROP 1. Place operating switch in “down” position.
- Page 4 4. Two people with clean hands must carefully grasp the slat pocket at each end. 5. Gently lift fabric up and ease it over the top of the roller. CAUTION! BE CAREFUL NOT TO CREASE OR DAMAGE FABRIC. 6. Additional wraps must be restored if screen surface continues to hang beyond bottom of case. 7 . Test screen by running fabric up and down several times. 8. Replace access panel. EXECUTIVE ELECTROL INSTALLATION SuggeSted MethodS of InStallatIon type 1 & 2 type 1 & 2 offset mounting, recessed above ceiling, Allow ⁄...
- Page 5 EXECUTIVE ELECTROL INSTALLATION ® 120V WIRING DIAGRAM BLACK DOWN LIMIT SWITCH CAPACITOR SOLENOID SWITCH BLUE MOTOR: 120V.60 CYCLES 1/10 HP INTERMITTENT DUTY WITH AUTO-RESET THERMAL PROTECTOR DOWN RED (UP) ADJ. BLACK WHITE BLACK BLACK (DOWN) BLUE SOLENOID WHITE UP LIMIT SWITCH (OPERATED BY DOOR) GREEN INTERNAL (GROUND) WIRING JUNCTION BOX MOUNTED IN SCREEN CASE, IN WHICH INTERNAL EXTERNAL WIRING WIRING TERMINATES IN TO BE COMPLETED WHITE, BLACK AND RED LEADS BY INSTALLER BLACK WITH YELLOW IN MULTIPLE CONTROL INSTALLATIONS THIS SWITCH IS...
- Page 6 Visit www.da -lite.com/products/tutorials.php to find installation and troubleshooting tutorials. You will also find a link to Live Chat for interactive support and you can contact us by email at info@da-lite.com or by phone at (800) 622-3737 or (574) 267-8101 with any troubleshooting questions.
- Page 7 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Motor hums. (a) Temporary fabric binding. (a) W ith power “off,” turn roller by hand to free binding. (b) Shipping bracket not removed. (b) R emove shipping bracket and wooden wedge. (c) Defective capacitor. (c) R eplace capacitor 3. S creen will not move “up.” (a) N o power between red and white (a) C heck fuse. Reset circuit breaker. leads in junction box. Correct improper wiring. Motor does not hum.
- Page 8 INTERRUPTION IN OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE. In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137 , Warsaw, IN 46581-0137 , (574) 267-8101, (800) 622-3737 . IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH DA-LITE’S WRITTEN INSTRUCTIONS. Keep your sales receipt to prove the date of purchase and your original ownership.
