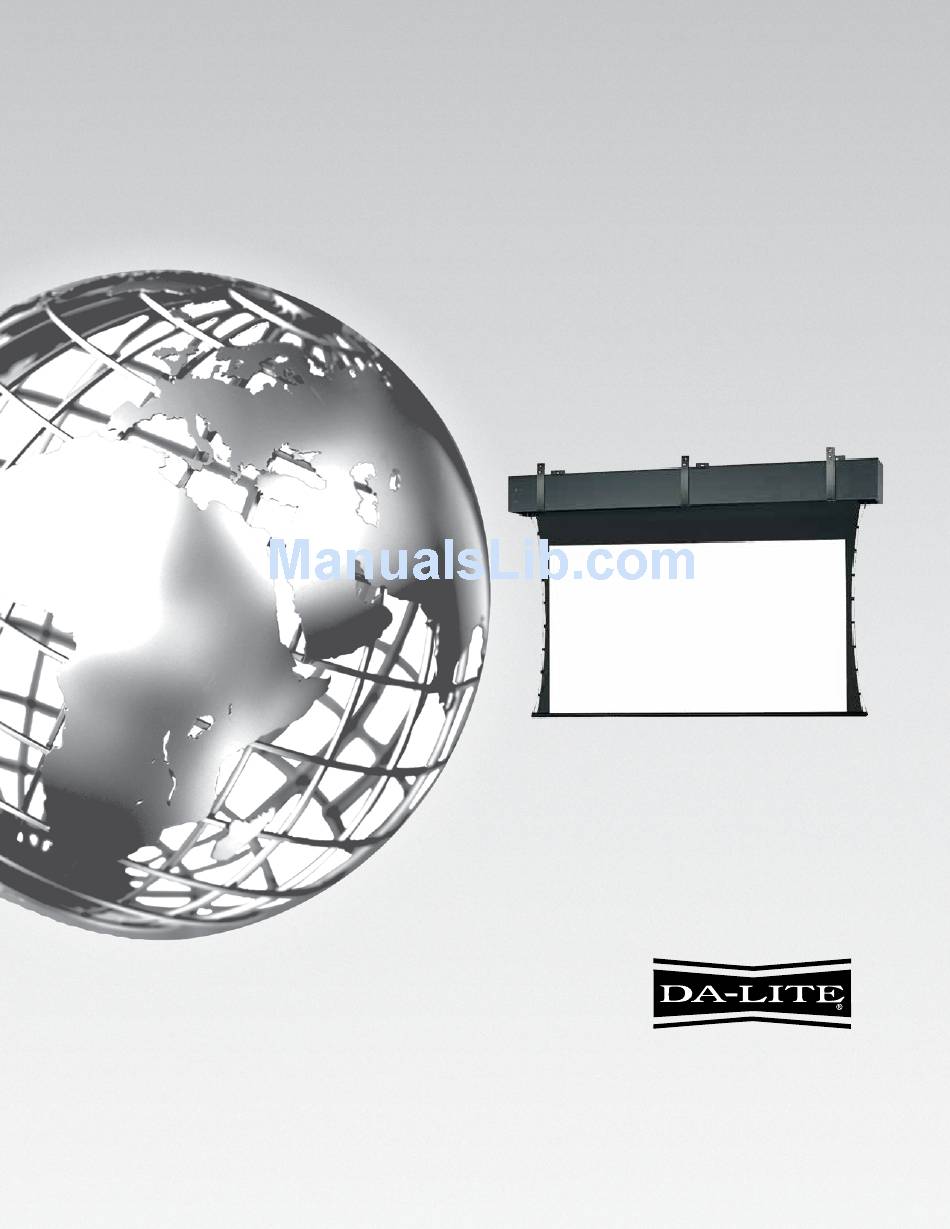

- Page 1 The Da-Lite Difference. Instruction Book for DA-LITE SCREEN COMPANY, INC. 3100 North Detroit Street tensIoned professIonal electrol® Post Office Box 137 Warsaw, Indiana 46581-0137 Phone: 574-267-8101 800-622-3737 Fax: 574-267-7804 www.da-lite.com e-mail: info@da-lite.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your video equipment, basic safety precautions should always be followed, including the following: 1. Read and understand all instructions before using. 2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces. - Page 3 PRE-INSTALLATION 1. Carefully unpack screen. 2. Make sure to recheck measurements of screen location before installation. 3. Remove instruction cover plate (Fig. 1). Do not remove wrapping paper until screen is installed. 4. Remove the retainer screws from the slat bar before the case has been installed (Fig. 2). (3 SCREWS) 1 ON BOTTOM OF SLAT 2 ON INSIDE OF CASE...
- Page 4 INSTALLATION 1. Level unit lengthwise with a carpenter’s plum level. CAUTION! DO NOT COMPLETELY SEAL IN UNIT. ACCESS ROOM MUST BE ALLOWED FOR MOTOR REPAIR OR FABRIC REPLACEMENT. 2. Remove shipping brace by removing 2 hex head screws (Figure 4). 3.
- Page 5 TENSIONED PROFESSIONAL ELECTROL INSTALLATION ® 9-1/2" 11-5/16" Reinforced Motor End Electrical Outlet Box SUGGESTED METHODS OF INSTALLATION CEILING TYPE HANGER RAFTERS 2" MOULDING PICTURE SURFACE PICTURE SURFACE 1" x 3" CLEAT RECESSED ABOVE CEILING PICTURE Other methods of installation SURFACE...
- Page 6 Please see wiring diagram in wall switch box included with screen. SCREEN ADJUSTMENT Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite. CONTACT DA-LITE AT 800-622-3737 OR 574-267-8101 IF SCREEN MOTOR NEEDS ADJUSTMENT.
- Page 7 Visit www.da -lite.com/products/tutorials.php to find installation and troubleshooting tutorials. You will also find a link to Live Chat for interactive support and you can contact us by email at info@da-lite.com or by phone at (800) 622-3737 or (574) 267-8101 with any troubleshooting questions.
- Page 8 OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE. In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, (574) 267-8101, (800) 622- 3737.
