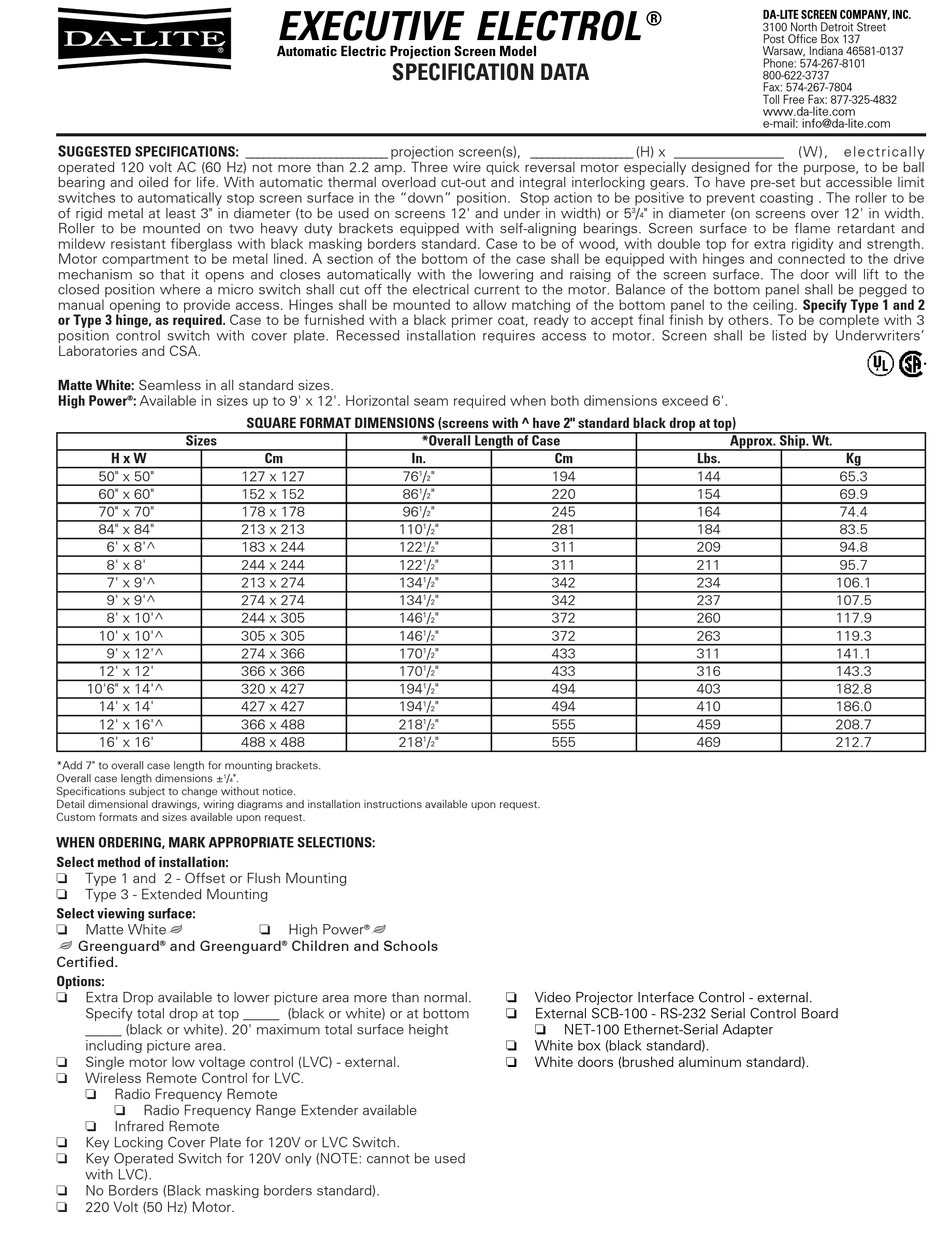

Da-Lite EXECUTIVE ELECTROL Specification

S
UGGESTED SPECIFICATIONS: _________________________ projection screen(s), __________________ (H) x ________________ (W),
operated 120 volt AC (60 Hz) not more than 2.2 amp. Three wire quick reversal motor especially designed for the purpose, to be ball
bearing and oiled for life. With automatic thermal overload cut-out and integral interlocking gears. To have pre-set but accessible limit
switches to automatically stop screen surface in the "down" position. Stop action to be positive to prevent coasting . The roller to be
of rigid metal at least 3" in diameter (to be used on screens 12' and under in width) or 5
Roller to be mounted on two heavy duty brackets equipped with self-aligning bearings. Screen surface to be flame retardant and
mildew resistant fiberglass with black masking borders standard. Case to be of wood, with double top for extra rigidity and strength.
Motor compartment to be metal lined. A section of the bottom of the case shall be equipped with hinges and connected to the drive
mechanism so that it opens and closes automatically with the lowering and raising of the screen surface. The door will lift to the
closed position where a micro switch shall cut off the electrical current to the motor. Balance of the bottom panel shall be pegged to
manual opening to provide access. Hinges shall be mounted to allow matching of the bottom panel to the ceiling. Specify Type 1 and 2
or Type 3 hinge, as required. Case to be furnished with a black primer coat, ready to accept final finish by others. To be complete with 3
position control switch with cover plate. Recessed installation requires access to motor. Screen shall be listed by Underwriters'
Laboratories and CSA.
Matte White: Seamless in all standard sizes.
High Power : Available in sizes up to 9' x 12'. Horizontal seam required when both dimensions exceed 6'.
®
Sizes
H x W
50" x 50"
60" x 60"
70" x 70"
84" x 84"
6' x 8'^
8' x 8'
7' x 9'^
9' x 9'^
8' x 10'^
10' x 10'^
9' x 12'^
12' x 12'
10'6" x 14'^
14' x 14'
12' x 16'^
16' x 16'
*Add 7" to overall case length for mounting brackets.
Overall case length dimensions ± 1 / ".
4
Specifications subject to change without notice.
Detail dimensional drawings, wiring diagrams and installation instructions available upon request.
Custom formats and sizes available upon request.
WHEN ORDERING, MARK APPROPRIATE SELECTIONS:
Select method of installation:
❏
Type 1 and 2 - Offset or Flush Mounting
❏
Type 3 - Extended Mounting
Select viewing surface:
❏
Matte White
Greenguard ® and Greenguard
Certified.
Options:
❏
Extra Drop available to lower picture area more than normal.
Specify total drop at top _____ (black or white) or at bottom
_____ (black or white). 20' maximum total surface height (black or white)
including picture area.
❏
Single motor low voltage control (LVC) - external.
❏
Wireless Remote Control for LVC.
❏
Radio Frequency Remote
❏
Radio Frequency Range Extender available
❏
Infrared Remote
❏
Key Locking Cover Plate for 120V or LVC Switch.
❏
Key Operated Switch for 120V only (NOTE: cannot be used
with LVC).
❏
No Borders (Black masking borders standard).
❏
220 Volt (50 Hz) Motor.
EXECUTIVE ELECTROL
Automatic Electric Projection Screen Model

SPECIFICATION DATA

SQUARE FORMAT DIMENSIONS (screens with ^ have 2" standard black drop at top)
Cm In.
127 x 127 76 1
152 x 152 86 1
178 x 178 96 1
213 x 213 110
183 x 244 122
244 x 244 122
213 x 274 134
274 x 274 134
244 x 305 146
305 x 305 146
274 x 366 170
366 x 366 170
320 x 427 194
427 x 427 194
366 x 488 218
488 x 488 218
❏
High Power ®
® Children and Schools
(black or white)
*Overall Length of Case
Cm
/ " 194
2
/ " 220
2
/ " 245
2
/ " 281
1
2
1 / " 311
2
1 / " 311
2
1 / " 342
2
1 / " 342
2
/ " 372
1
2
1 / " 372
2
1 / " 433
2
1 / " 433
2
1 / " 494
2
1 / " 494
2
1 / " 555
2
1 / " 555
2
WHEN ORDERING, MARK APPROPRIATE SELECTIONS:
Select method of installation:
❏
Type 1 and 2 - Offset or Flush Mounting
❏
Type 3 - Extended Mounting
Select viewing surface:
❏
Matte White
Greenguard ® and Greenguard
Certified.
Options:
❏
Video Projector Interface Control - external.
❏
External SCB-100 - RS-232 Serial Control Board
❏
NET-100 Ethernet-Serial Adapter
❏
White box (black standard).
❏
White doors (brushed aluminum standard).
DA-LITE SCREEN COMPANY, INC.
®
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: 574-267-8101
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: info@da-lite.com
3 / " in diameter (on screens over 12' in width.
4
Approx. Ship. Wt.
Lbs.
144
154
164
184
209
211
234
237
260
263
311
316
403
410
459
469
❏
High Power
® Children and Schools
electrically
Kg
65.3
69.9
74.4
83.5
94.8
95.7
106.1
107.5
117.9
119.3
141.1
143.3
182.8
186.0
208.7
212.7
®
