Loading Paper

The Epic 430 printer uses a continuous roll of POS or Lottery grade thermal
paper, with specifications outlined in the chapter
and Requirements
.
Knife assembly
opening

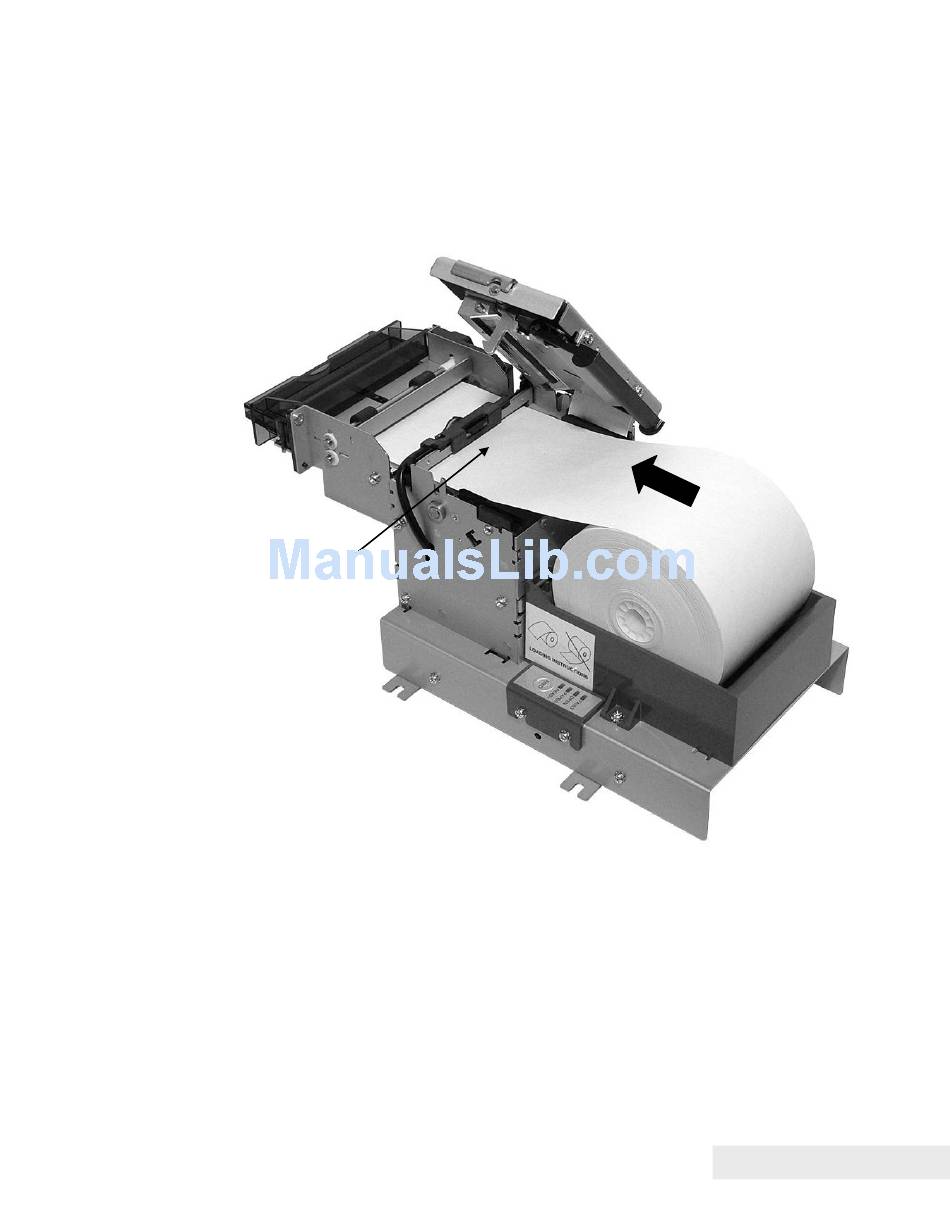

Figure 6. Loading a Paper Roll.

Instructions for loading the paper are as follows:
1. Open the top cover of the printer by pressing the button on the top cover.
2. Place a roll of new paper in the paper holder as shown in the figure.
3. Thread the free end of the paper through the knife assembly opening as
shown.
4. Push the end of the paper towards the transport rollers.
Epic 430TM Specifications
43-06955 - Rev Q
Operational Procedures
Paper direction
