BRAKES

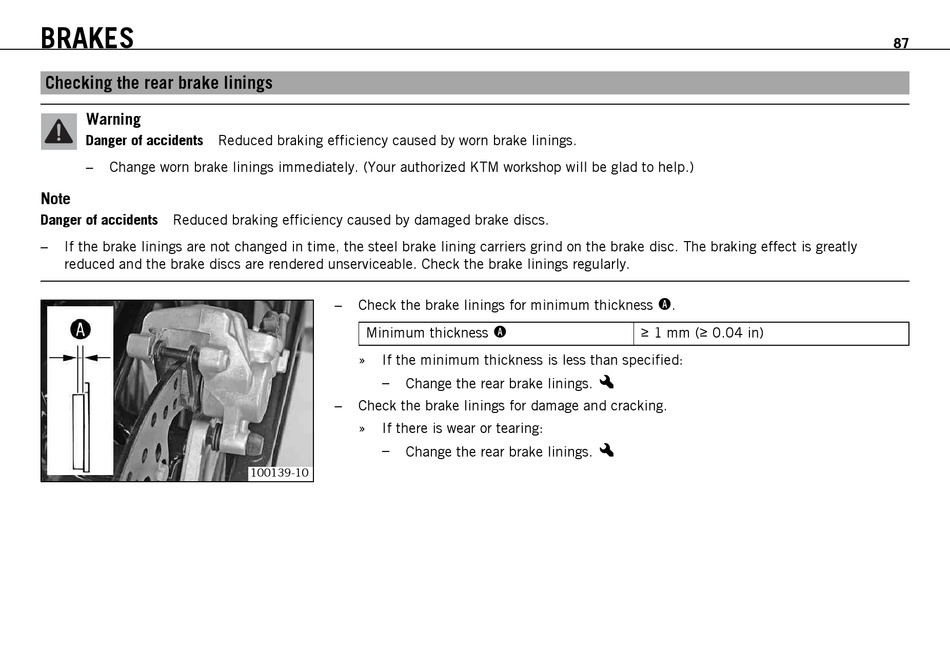

Checking the rear brake linings

11.10
Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
–
Change worn brake linings immediately. (Your authorized KTM workshop will be glad to help.)
Note
Danger of accidents Reduced braking efficiency caused by damaged brake discs.
–
If the brake linings are not changed in time, the steel brake lining carriers grind on the brake disc. The braking effect is greatly
reduced and the brake discs are rendered unserviceable. Check the brake linings regularly.
–
Check the brake linings for minimum thickness
Minimum thickness
» If the minimum thickness is less than specified:
–
Change the rear brake linings.
–
Check the brake linings for damage and cracking.
» If there is wear or tearing:
–
Change the rear brake linings.
100139-10
.

≥ 1 mm (≥ 0.04 in)

x
x
