Library Installation
Step 6: Connect Library to Host
Routing SCSI and Power Cables on Rack Mounted
Libraries
CAUTION
SCSI and power cables must be routed and secured properly on rack
mounted libraries. Failure to properly route library cables could result in
damage to the cables.
To properly route and secure rack mounted library power and SCSI
cables:
1. Route the SCSI/power cables through the strain relief bracket:

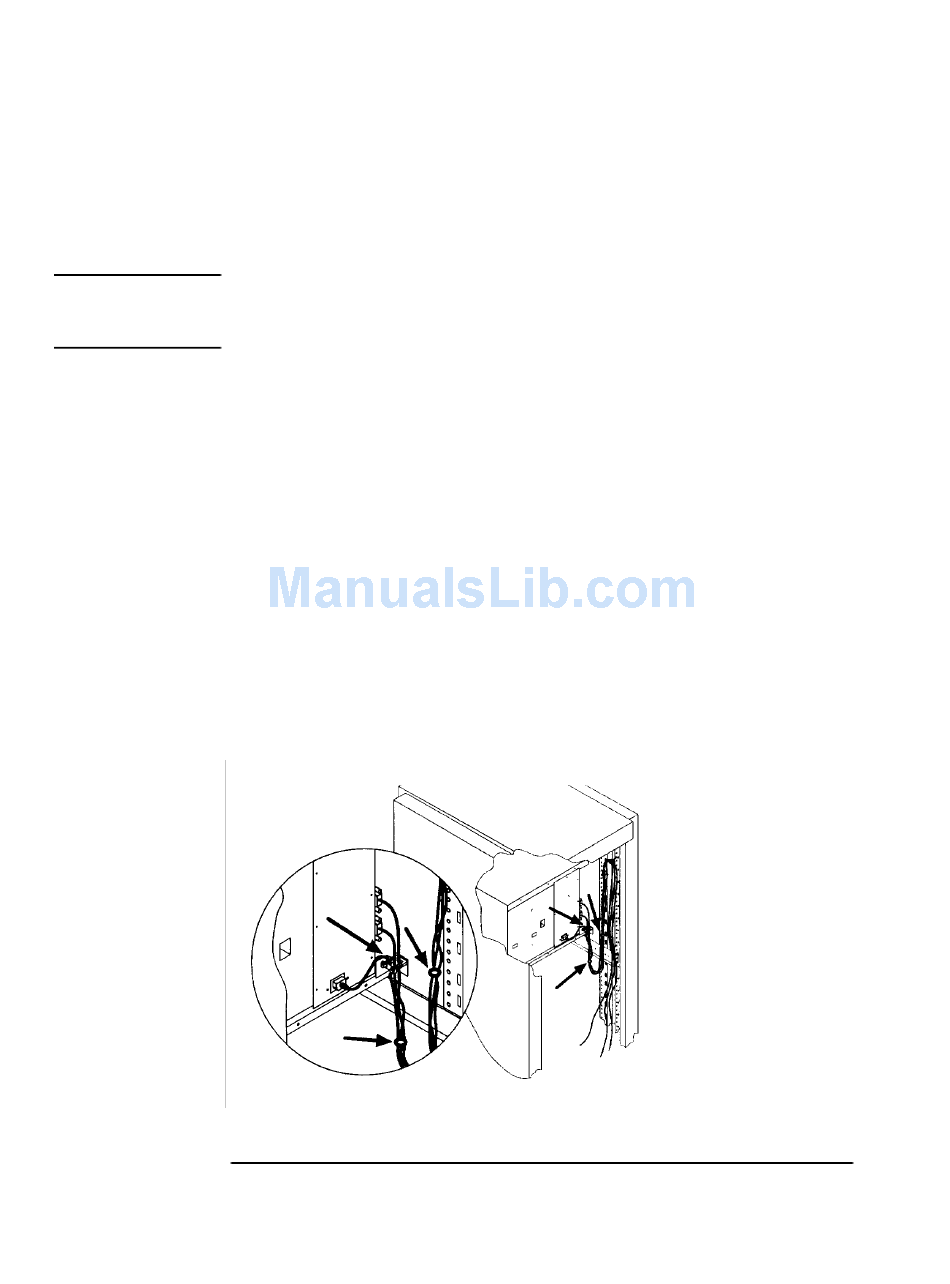

Figure 2-2 SCSI/Power Cables and Strain Relief Bracket
2-10
a. Squeeze the two plastic ends of the cable strain relief bracket together.
b. Pull off the plastic strain relief clamp.
c. Route the SCSI cable(s) and the power cord through the cable strain
relief bracket.
d. Slide the strain relief clamp back onto the bracket.
e. Attach a cable tie (included in the rack mount kit) to the SCSI and
power cables about eight inches back from the strain relief bracket.
f. Attach another cable tie about eight inches back from the first cable
tie.
